 New arrival G4418 Ibox SBC Single Board Computer compatible to Samsung S5P6818 64bit Octa-Core
Home  /  ARM Embedded Products  >  Single Board Computer  >  RK3566 Single Board Computer





Download Center

  • RK3566
  • RK3566
  • Single Board Computer
  • CPU:RK3566 (ARM Cortex-A55)
  • Goods in the high-quality, and absolutely stable and reliable.
  • The system on module uses 8-layer process design, ensure reliability and stability
  • CPU
    1.8GHz*4
  • LPDDR4
    2G
  • EMMC
    16G







 The Most Cost-effective Quad Core

●Cortex-A55  ●1.8GHz  ●Stable  ●Long-term supply



应用领域

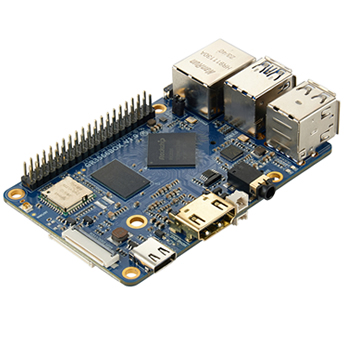

RK3566 Single Board Computer features

The product features
  • Size: 85mm x 56mm
  • Main frequency can reach up to 1.8GHz, built-in Mali-G52 GPU, 1T computing power NPU.
  • Low power consumption and high performance.
  • Support kinds of brand eMMC, 16GB eMMC as default
  • LPDDR4, 2GB RAM as default, max 8GB
  • Support power sleep/wake up
  • Support Android12, Linux, Ubuntu, and Debian OS
  • Support gigabit Ethernet

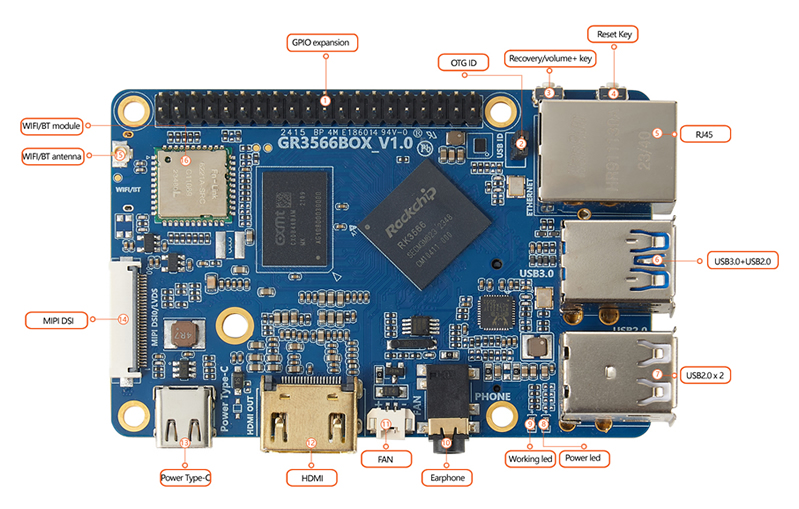

Single Board Computer interfaces


Single Board Computer interfaces 1
Single Board Computer interfaces 1

Parameters

Parameters
  • Appearance: Single board computer
  • Size: 85mm x 56mm
  • Technology: 8-layer immersion gold technology design
System parameters
  • CPU: RK3566, Cortex-A55 quad-core 1.8GHz
  • RAM: 2GB/4GB/8GB LPDDR4/LPDDR4X
  • EMMC: 8GB/16GB/32GB/64GB/128GB eMMC optional, 16GB as standard version
  • CODEC: 4K 60fps H.265/H.264/VP9 video decoder 1080P 100fps H.265，60fps H.264 video encoder
  • GPU: ARM G52 2EE GPU, and support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1,integrate high-performance 2D hardware engine
Interfaces parameters
  • Power supply: Type-C, 5V-12V voltage input
  • Ethernet: Built-in GMAC Ethernet controller, support 1000Mbps（RJ45）
  • Wireless: Expandable SDIO WiFi+bluetooth two-in-one module：
    - support 2.4GHz / 5GHz dual frequency WiFi,802.11a/b/g/n/ac
    - support Bluetooth4.2
  • Display: 1 x HDMI2.0, max 4K@60Hz 1 x MIPI DSI, max 1920x1080@60fps
  • Audio: 1 x Phone output ( MIC recording), support dual-channels audio output 1 x HDMI audio output
  • Camera: 1 x MIPI-CSI （Single channel 4 LAN ),max 8mp camera
  • USB: USB2.0x3、USB3.0x1
  • M.2: M.2 2242 solid state disk
  • TF card: 1 x TF card slot,max 128GB TF card
  • Other interface: 4 x UART,1 x Debug UART,1 x ADC,1 x I2C,1 x SPI,1 x I2S (2 channels),12 x PWM,1 x RTC，reserved 2 PIN for power supply,1 x FAN，reserved 2 PI for FAN power supply, and 5v voltage
Electrical characteristics
  • Working temperature: -20℃- 80℃
  • Stroge temperature: -30℃- 80℃
  • Stroge humidity: 10%～80 %
Others
  • OS: Android12, Linux, Ubuntu, and Debian OS
  • Service: G3566 system on module, hardware design, software develop and OEM/ODM

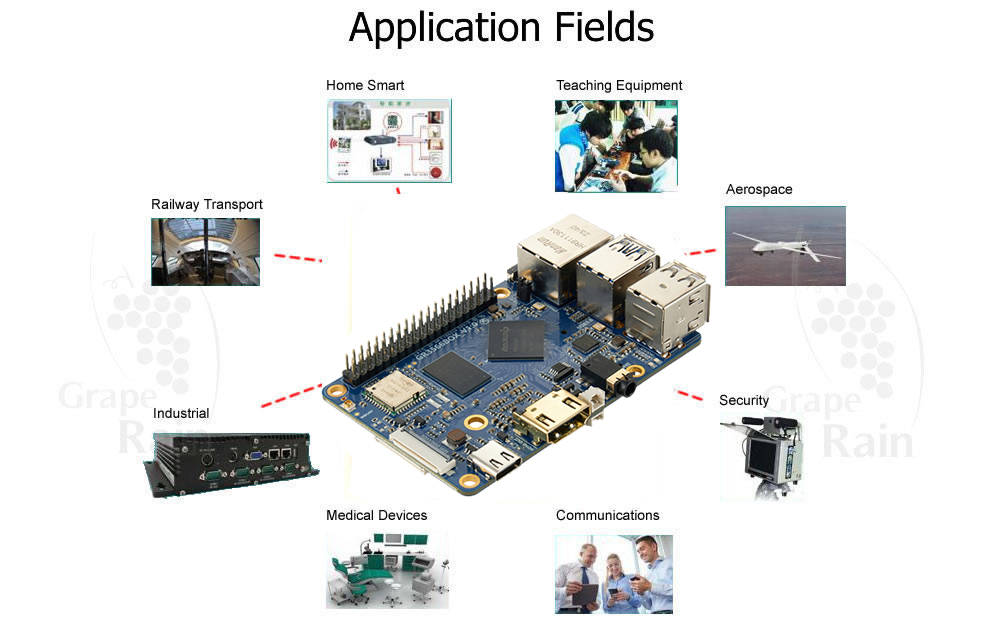

Applied area
  • Handheld devices, electricity, communications, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc

Packing list

Standard accessories:
  • RK3566 Single Board Computer
  • 5V/3A power adapter
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)
