- Qualcomm MSM8953 System on Module
- Qualcomm MSM8953 SOM, support 4G call. SOM onboard bluetooth, wifi, 4G, Beidou GPS, no need for peripherals module, and max LCD resolution 1920*1280.supports FDD-LTE/TD-LTE/TD-SCDMA/WCDMA/EVDO/CDMA/EDGE/ GSM communication bands.
- Customized solution with G8953 system on module for reference.
I want to customize service.>> - Viewed：10164
- More Information
- G8953
- System on Module
- CPU:MSM8953 (ARM Cortex-A53)
- Has been shipped in large quantities, is absolutely stable and reliable
- Onboard Bluetooth, wifi, 4G, and GPS.
- CPU2.0GHz*8
- DDR31G
- EMMC8G
Product instruction
G8953 system on module have integrated communication device, CPU, storage and GPS, connecting with matching base board through PINs.
G8953 System on Module Features:
- Smallest size
- Support 4g LTE internet speed, compatibility 2G/3G/4G
- Be of 21 interfaces, which meets clients rich interface configuration
- It is the first system on module of Qualcomm Snapdragon
- Single-sided cloth plate designed, which lower the thickness of the board
- Stable and reliable features
- Reduce the development difficulty
- Enhancing maintainability
- Enhanced maintainability. Through the change of core board can realize the upgrading of products, to avoid re opening, to extend the product life cycle;
G8953 System on Module Parameters:
Parameters
- Structure Parameters: Outlook: Stamp hole
- Size: 42mm x 54mm x 2.8mm
- Craft: 8-layer gold immersion PCB
System Configuration
- System Configurations: CPU: MSM8953, cortex –a53 octa core, 2.0 Ghz
- Ram: 1GB DDR3 as standard, and 2GB/3GB/4GB optional
- EMMC: 8GB/16GB/32GB/64GB optional, and 8GB as standard.
Interface Features
- Outlook: PCBA
- Dimension:42mm x 54mm x 2.8mm
- Hardware Platform：MSM8953 octa-Core 2.0Ghz
- Memory：8GB ( EMMC ) + 1GB ( DDR3 ) as standard, 1GB&16GB, 2GB&16GB, 2GB&32GB,
- 4GB&64GB are compatible
- Process ：14nm
- GPU：Adreno 506
- Extended memory(T card) ：Max 128GB
- camera：4 lane MIPI *2, support 21M max
- LCD：4 lnae MIPI, max resolution 1920*1280
- TP：I2C
- SD：SD3.0， max support 128G
- I2C：sensor，NFC，TP，cam，
- I2S：Supported, with fingerprint spi reusable
- UART：2 lane ，1 lane standard uart
- uim：2 lane
- SPI：2lane，one lane with uart reusable
- USB：USB 2.0 *1
- OTG：Supported
- key：3，power，V+/V-，can extended with GPIO
- handset：1 lane
- speaker：External pa
- MIC：3 lane
- WIFI：802.11 b/g/n/a/ac
- BT ：v4.1
- IR：Not supported
- GPS ：GPS,AGPS,GLONASS, BEIDOU
- NFC： supported
- CHARGE：qc3.0 ，DC charge
- FM： supported
- fingerprint： Supported, with spi reusable
- ADC：2
- PWM：2
- Others ：B2B 30pin
G8953 System on Module

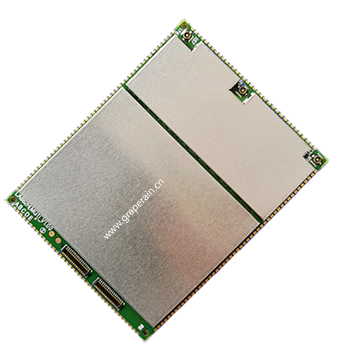

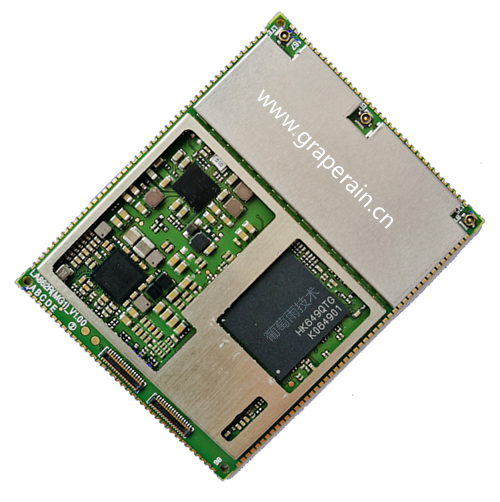

Front of G8953 system on module

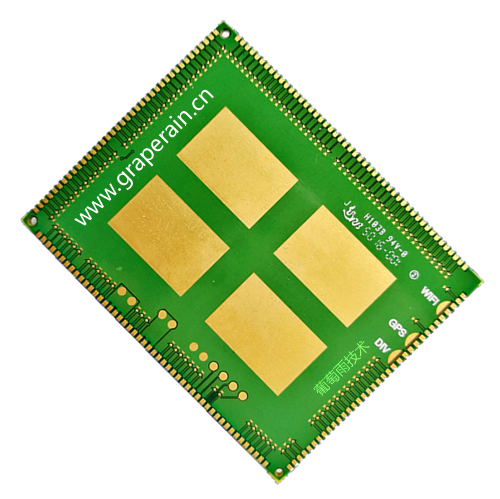

Back of G8953 system on module
