 New arrival G4418 Ibox SBC Single Board Computer compatible to Samsung S5P6818 64bit Octa-Core
Home  /  ARM Embedded Products  >  System On Module  >  RK3566 System On Module





Download Center

  • RK3566
  • RK3566
  • System on Module
  • CPU:RK RK3566 ( A55 quad core 1.8GHz )
  • Goods in the high-quality, and absolutely stable and reliable.
  • 200 pin design, size 55mm*55mm*3mm
  • CPU
    1.8GHz*4
  • LPDDR4
    2G
  • EMMC
    16G

The King of Quad core

2GB RAM as standard, and 8GB optional.

  • A55 Quad Core CPU

    ARM Cortex-A55 and 1.8Ghz Quad Core



    A17 Quad Core CPU
  • 8GB RAM, 128GB Emmc






    4GB Emmc, 32GB Memory
  • Independence Power Management

    Built-in Mali-G52 GPU
    1T computing power NPU


    Independence Power Management
  • Android 12 Operating System

    Android 12 Operating System




    Android 11 Operating System

RK3566 System on Module (shorts for RK3566 SOM) Introduction:

G3566 system on module takes RK3566 CPU. RK3566 CPU is quad core 64 bit Cortex-A55 processor.



It adopts 22nm advanced process, the main frequency can reach up to 1.8GHz, built-in Mali-G52 GPU, 1T computing power NPU, low power consumption and high performance.



G3566 SOM DDR can be up to 8GB memory. It Support PCIe2.1, SATA3.0, adopts standard interface, Support 4K 60fps H.265/H.264/VP9 video decoding.



Graperain provides complete technical information and reference design. Users can develop efficiently based on G3566 SOM.



Checking RK3566 Development Board Instruction>>






RK3566 SOM Features Details:

RK3566 SOM Features Details:
  • Best Size; 55.0mm*55.0mm*3mm
  • Main frequency can reach up to 1.8GHz, built-in Mali-G52 GPU, 1T computing power NPU.
  • Low power consumption and high performance.
  • Support different brands eMMC, standard 16GB
  • Standard 2GB RAM, can be custom to 4GB/8GB
  • Support power sleep wake-up
  • Android 12, Linux, Ubuntu, Debian OS
  • Support 2 x Gigabit Ethernet
  • Powerful functions, rich interfaces, wide applications.
  • Stable and reliable board.

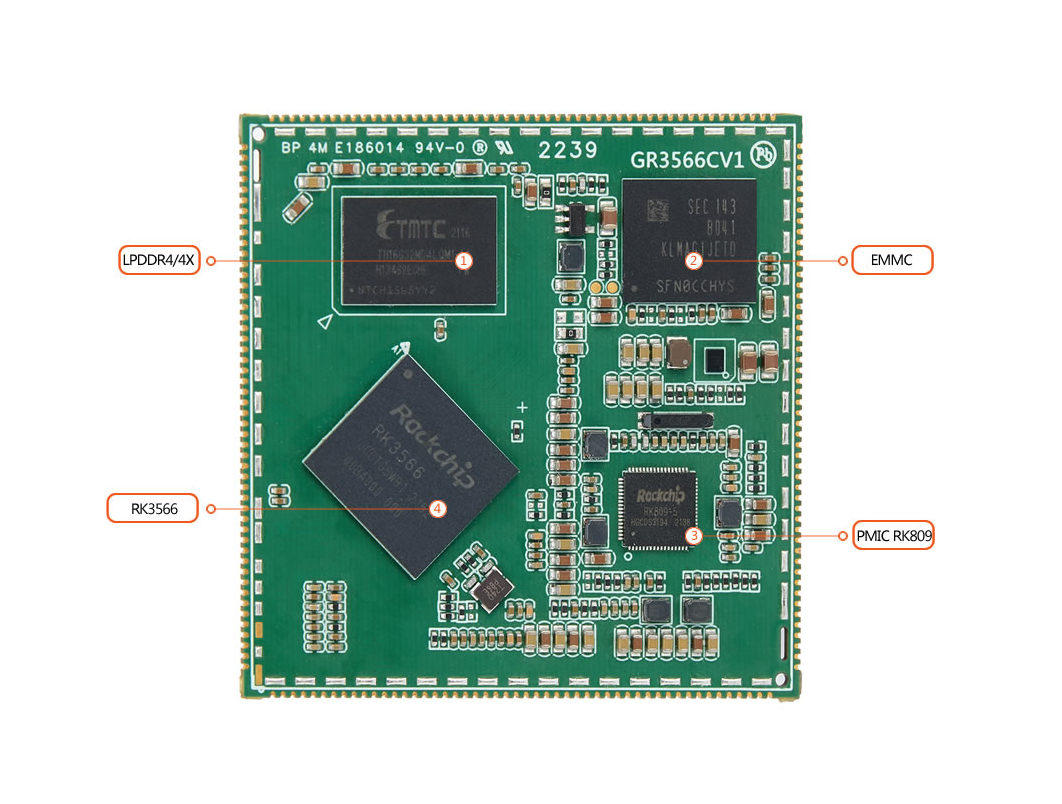

核心板接口

应用领域

Structure Parameter

Structure Parameter
  • Appearance：Stamp hole
  • System Dimension：55.0mm*55.0mm*3mm
  • Pin Pitch：1mm
  • Pin Quantity：200 PIN
  • Layer：8 layers immersion gold designed
System Configuration
  • CPU: RK3566, Cortex A55 quad core 1.8GHz
  • Frequency: 22nm, frequency up to 1.8GHz
  • GPU: ARM G52 2EE GPU. Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, integrate high-performance 2D hardware engine
  • NPU: Build-in RKNN NPU AI acceleration engine, 1Tops processing performance
  • Support deep learning frameworks: Caffe/TensorFlow/TF-Lite/ONNX/MXNet/PyTorch/Keras/Darknet
  • Video Codec: 4K 60fps H.265/H.264/VP9 video decoder 1080P 100fps H.265, 60fps H.264 video encoder
  • DDR: LPDDR4 DDR, standard 2GB, can be custom to 4GB/8GB
  • EMMC: standard 16GB, 8GB/16GB/32GB/64GB/128GB eMMC
  • Support PCIe2.1, SATA3.0, can expand to SSD/HDD
  • UART,I 2C, ADC, PWM, GPIO, USB2.0, USB3.0, HDMI, EDP, MIPI CSI, MIPI DSI, I2S and other interfaces are supported
Interfaces Parameter
  • Ethernet: Integrate GMAC Ethernet controller, support 1000 Mbps(RJ45), 2xGigabit
  • Wifi: Expandable WiFi+Bluetooth 2-in-1 module via SDIO interface
  • Support 2.4GHz / 5GHz dual band WiFi, 802.11a/b/g/n/ac protocol
  • Support Bluetooth4.2
  • Support extended 4G LTE/3G wireless networks
  • Display: 1 x HDMI2.0, up to 4K@60Hz 2 x MIPI DSI, single channel support 1920x1080@60fps, dual channel support 2560x1440@60fps 1 x EDP1.3, up to 2560x1600@60fps
  • Audio: 1 x I2S (8 channel input/output) , 2 x I2S (2 channel input/output)
  • Camera: 1 x MIPI-CSI(single channel 4 LAN or dual channel 2 LAN)
  • USB: USB2.0x2, USB3.0x1
  • PCIE: Support PCIE 2.1
  • SATA: Support SATA3.0
  • Other interfaces: UARTx10, I2Cx5, ADCx2, PWMx16, GPIOx107, I2Sx3, SPEAKx1, HPOUTx1
Electrical Features
  • Operating Temperature：-20℃- 80℃
  • Storage Temperature：-30℃- 80℃
  • Storage humidity：10%～80%


RK3566 SOM Appearance

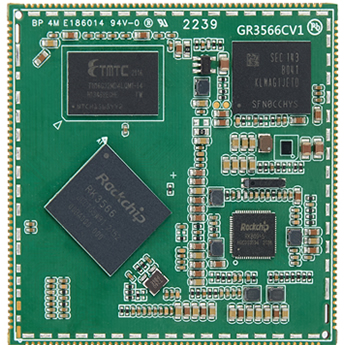

RK3566 SOM Front
  • RK3566 SOM Front

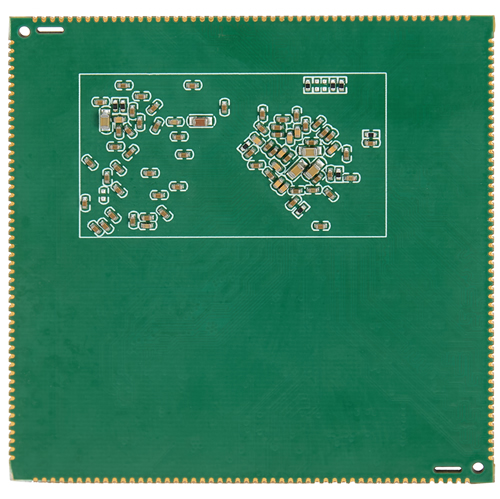

RK3566 SOM Back
  • RK3566 SOM Back
