  • RK3566
  • RK3566
  • Development Board
  • CPU:RK3566 (ARM Cortex-A55)
  • Goods in the high-quality, and absolutely stable and reliable.
  • Support 8GB RAM, PCIE2.1 interface, WIFI, 4G module, gigabit Ethernet, and 4K HDMI display.
  • CPU
    1.8GHz*4
  • LPDDR4
    2G
  • EMMC
    16G







 The most cost-effective quad core

●Super Cortex-A55  ●max to 1.8GHz  ●stable  ●long supply

Brief Introduction

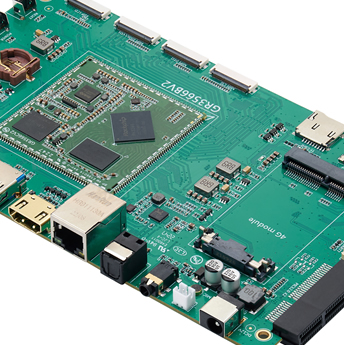

G3566 development board is based on Rockchip RK3566 ( 64bit quad core A55) platform, which is designed by Shenzhen Graperain Technology Co., Ltd.



G3566 development board consists of G3566 system on module and carrier board



G3566 development board take Rockchip RK3568 quad core CPU, integrated dual-core GPU and high-performance NPU, support max 8GB RAM, onboard PCIE2.1, WIFI, 4G module, gigabit Ethernet, 4K HDMI display, and abundant of interfaces, which could be used industrial control, edge computing, and face identify so on.



RK3566 SOM size：55.0 mm* 55.0mm    RK3566 carrier board size：185.4mm * 110.7 mm    Check RK3566 SOM features>>

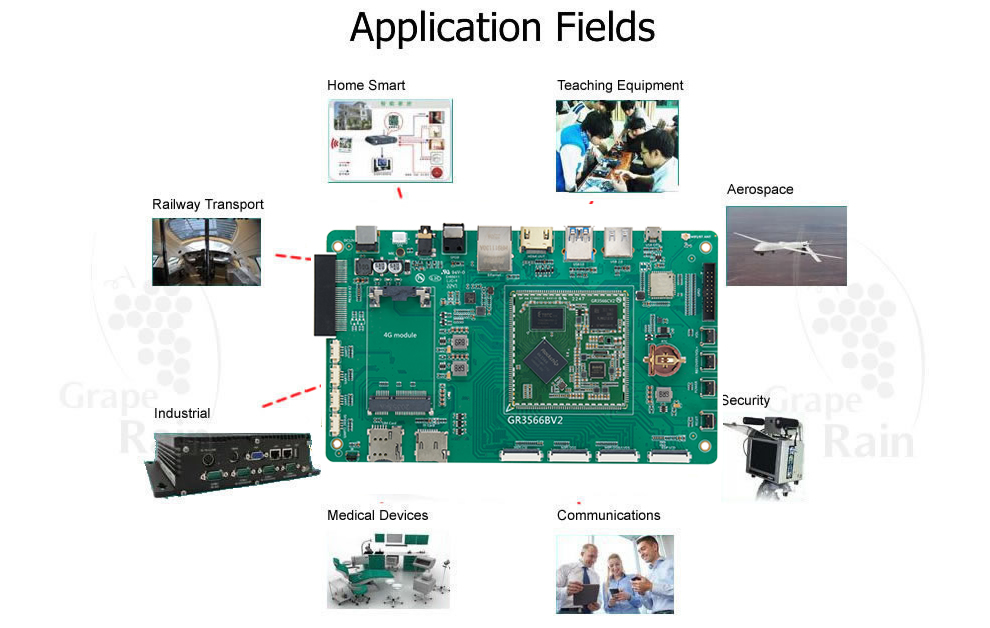

应用领域




RK3566 development board features

The product features
  • Size: 185.4mm*110.7mm, can be used in final product.
  • Powerful functions, rich interfaces, wide applications.
  • Supports Android12, Linux, Ubuntu, Debian. Source code open, accelerate develop time.
  • Stable and reliable board.


Development board size


Development board size


Development board interfaces 1


Development board interfaces 1

Parameters

Parameters
  • Appearance: Stamp hole SOM + carrier board
  • Size: 185.4mm*110.7mm
  • Layer: SOM 8-layer/carrier board 4-layer
System on Module parameters
  • CPU: Rockchip RK3566
  • Frequency: Quad-core 64bits Cortex-A55 CPU, 22nm craft, max frequency 1.8GHz
  • GPU: ARM G52 2EE graphics processor, support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1, and inland high-performance 2D hardware acceleration.]
  • NPU: Integrated RKNN NPU AI accelerator, 1Tops hashrate, support deep study structure: Caffe/TensorFlow/TF-Lite/ONNX/MXNet/PyTorch/Keras/Darknet Coder and decoder: 4K 60fps H.265/H.264/VP9, video decoder: 1080P 100fps H.265，60fps H.264 video coder
  • RAM: 2GB as standard, and 4GB/8GB be customized
  • EMMC: 8GB/16GB/32GB/64GB/128GB eMMC optional, 16GB as standard.
  • Support PCIE2.1 and SATA3.0, and extensible SSD/HDD
  • Abundant of interfaces, such as: UART、I2C、ADC、PWM、GPIO、USB2.0、USB3.0、HDMI、EDP、MIPI CSI、MIPI DSI、I2S etc..
Interfaces parameters
  • Power: DC 12V
  • Ethernet: Integrated GMAC Ethernet controller, 1000Mbps Ethernet ( RJ45)
  • Wifi: Wifi+ Bluetooth two-in-one module, though SDIO interface: 2.4GHZ/5GHz dual-band Wifi, 802.11a/b/g/n/ac, support Bluetooth5.0, extend 4G LTE/3G wifi
  • Display: 1 x HDMI2.0, max 4K@60Hz, 2 x MIPI DSI, one channel 1920*1080@60fps, dual channels support 2560*1440@60fps, 1 x EDP1.3, max 2560*1600@60fps
  • Camera: 1 x MIPI-CSI ( One channel 4 LAN or dual channels 2 LAN)
  • Audio: 1 x HDMI audio output, 1 x Phone output( No MIC recorder), 1 x MIC audio input, 1 x Speaker output, and 1 x SPDIF audio output
  • USB: 1 x USB2.0, 1 x USB3.0, 1 x OTG
  • PCIE: 1 x PCIE2.1 ( 2 Lane PCIE2.1 BUS 2242/2280 NVMe SSD)
  • TF Card: 1 x TF card slot,max 128GB TF card
  • Other interfaces: 4 x UART, 1 x Debug uart, 1 x ADC , 5 x PWM, 1 x I2C , 1 x IR , 1 x RTC, 1 x SIM card slot
Electrical characteristics
  • Working temperature: -20--80℃
  • Storage temperature: -30--80℃
  • Storage humidity: 10%--80%
Hardware interface
  • 【1】 DC 12V
  • 【2】 Speaker
  • 【3】 Audio MIC
  • 【4】 Headphone output
  • 【5】 SPDIF audio input
  • 【6】 RJ45 Ethernet
  • 【7】 HDMI TYPE-A output
  • 【8】 USB3.0 HOST
  • 【9】 USB2.0 HOST
  • 【10】 USB2.0 OTG
  • 【11】 WIFI BT antenna
  • 【12】 WIFI, BT Module
  • 【13】 GPIO
  • 【14】 Vol- Key
  • 【15】 Upgrade/vol+
  • 【16】 Power Key
  • 【17】 RTC battery slot
  • 【18】 Reset Key
  • 【19】 EDP display
  • 【20】 MIPI DSI0/LVDS display
  • 【21】 MIPI DSI1 display
  • 【22】 MIPI camera
  • 【23】 TF card slot
  • 【24】 4G module connector
  • 【25】 SIM card slot
  • 【26】 IR
  • 【27】 Debug UART
  • 【28】 UART3
  • 【29】 UART4
  • 【30】 UART7
  • 【31】 PCIE2.0
Others
  • OS: Android12, Linux and Debian.
  • Custom service: RK3566 SOM, custom hardware + software + OEM/ODM
Applied area
  • high-definition display with advertising machine, vending machines, teaching terminals, automatic identification, robotics, security monitoring, financial POS, vehicle control terminals, VR, etc.. With the development board to test, it will accelerate product develop time.

Packing list

Standard accessories:
  • RK3566 stamp hole development board
  • 12V/2A power adapter
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)


Download Center

Download Center


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
