RV1126B System on Module (shorts for RV1126B SOM) Introduction:

RV1126B system on module is launched with Rockchip RV1126B platform(64-bit quad core A53) by Graperain.

The RV1126B system on module utilizes quad core Cortex-A53 manufactured using an advanced process technology and operates at a maximum frequency of 1.6GHz. It features a built-in NPU developed by Rockchip, delivering 3 TOPS (INT8) of computing power.

It supports INT8/INT16 mixed operations and large models up to 2B , providing computing power for edge AI inference with low power consumption and high performance.

The chip supports 4K@45fps video encoding (H.265/HEVC, H.264/AVC) and 4K@30fps video decoding. It integrates dedicated AI-ISP hardware, supporting image processing up to 12 megapixels and 8-megapixel AI-ISP.

The core advantage lies in the fact that the AI-ISP can operate independently without consuming NPU resources, significantly optimizing system resource utilization and improving image processing efficiency.

Checking RV1126B Development Board Instruction>>

RV1126B System on Module Features:

• Size: 42mm*42mm
• Main frequency can reach up to 1.6GHz, It supports INT8/INT16 mixed operations and large models up to 2B. Low power consumption and high performance.
• Support different brands eMMC, standard 32GB
• Standard 1GB RAM, can be custom to 2GB
• Support 1000Mbps Ethernet
• Expandable to WiFi, Bluetooth, 4G, and 5G via USB, SDIO, PCIe, and UART interfaces.
• Support BuildRoot, Debian 12
• Rich interfaces, wide applications
• Stable and reliable board

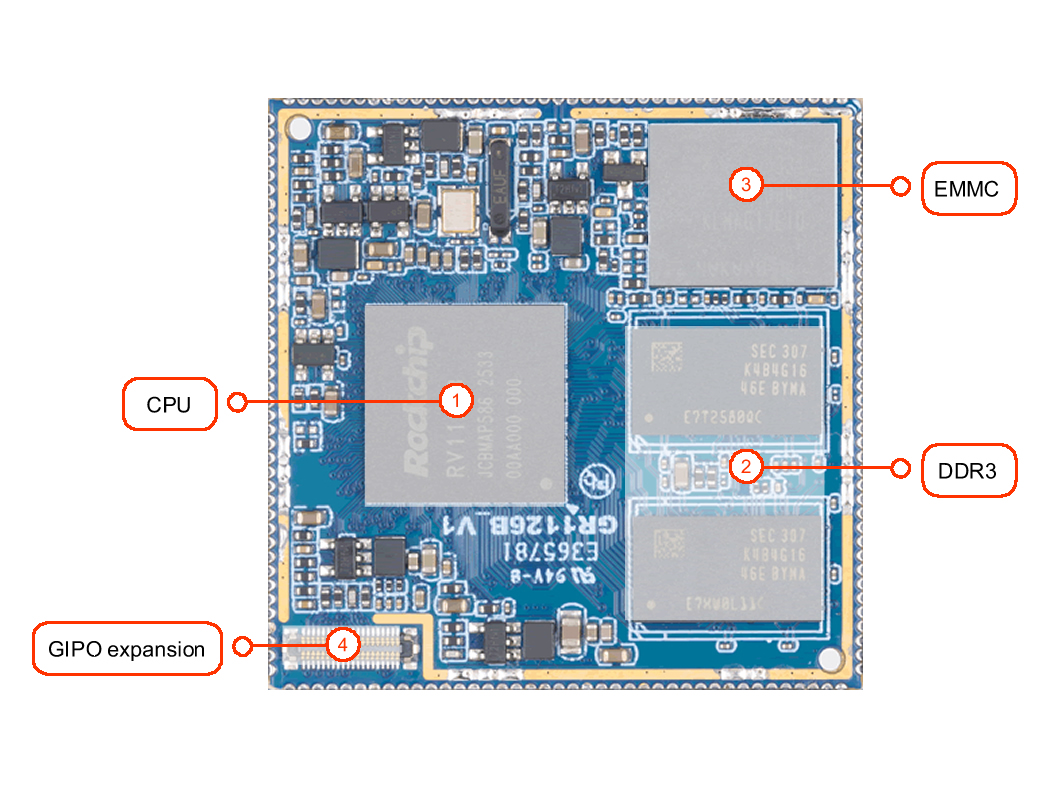

Structure Parameter

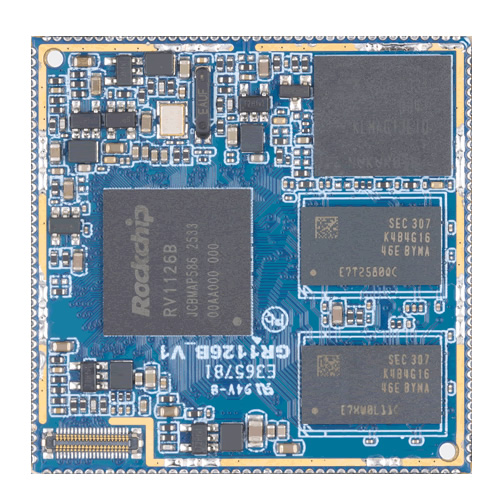

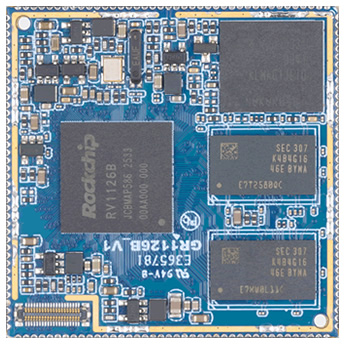

RV1126B SOM Appearance
