 The most cost-effective octa core

● Superior octa core 2*A76 + 6*A55   ● Up to 2.0GHz   ● Superior Performance   ● Great Stability   ● Long Delivery Cycles

Product Introduction

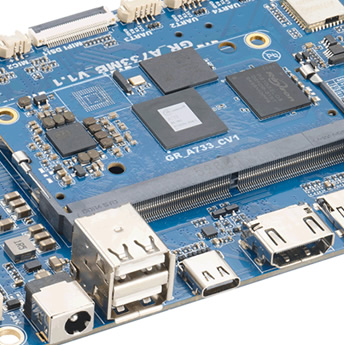

A733 development board is a product platform launched by Shenzhen Graperain Technology Co., Ltd. based on the Rockchip A733 (64-bit octa-core 2*A76+6*A55) chip.



A733 development board is mainly composed of A733 gold finger system on module and its carrier board



A733 development board take Allwinner A733 octa-core CPU, bulit-in 3TOP NPU and support localized AI processing. It support 16GB RAM, M.2 onboard, WIFI6 and Bluetooth 5.4, gigabit Ethernet, and 4K HDMI display, and rich expansion interfaces. It could be applied in industrial control, edge computing and face recognition.



A733 SOM size：69.6mm*38mm    A733 carrier board size：130mm x 90mm    Check A733 SOM features>>

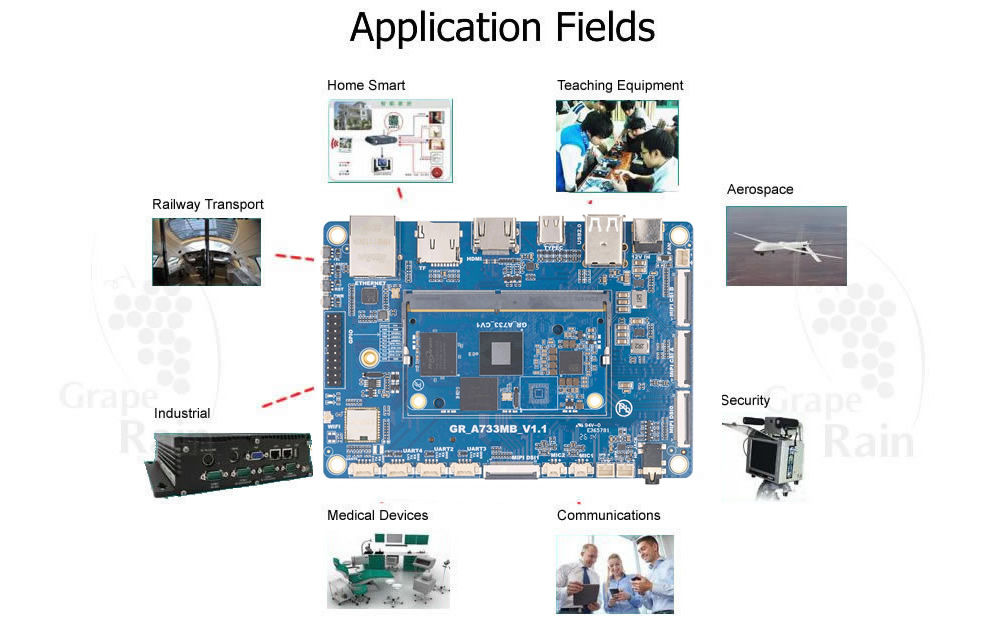

应用领域




A733 Development Board Features

The Product Features
  • Size is only 130mm x 90mm, can be used directly on the product
  • Powerful, rich interface, wide range of applications.
  • Support Android 15, Buildroot, and Debian 11 OS
  • Stable and reliable, and the board will not crash after long-term copying.

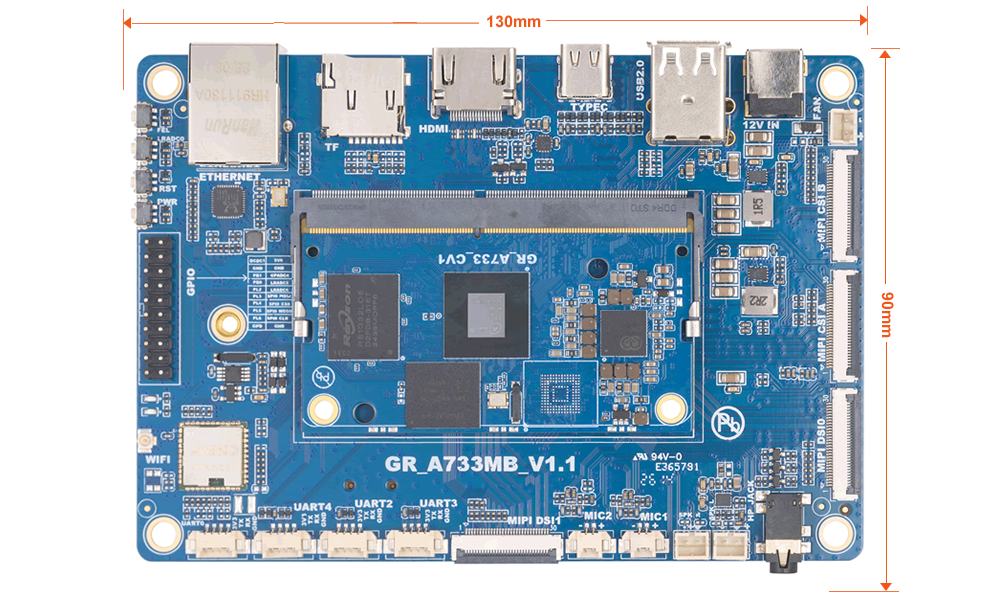

A733 Development Board Size


Development board size

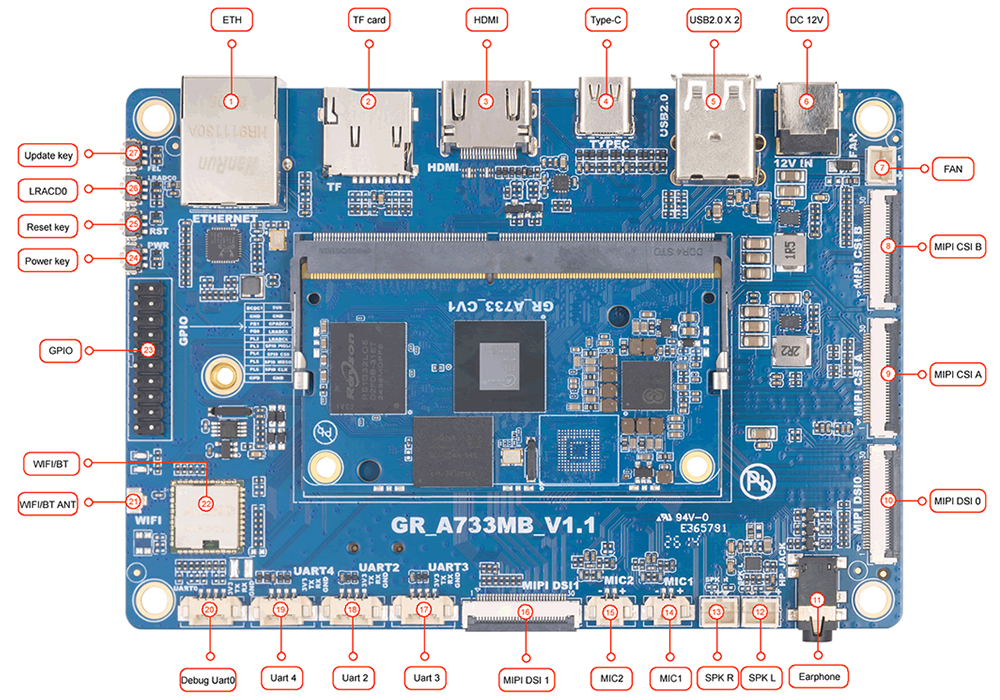

Development Board Interface 1


Development board interfaces 1

Parameters

Parameters
  • Appearance: Gold finger system on module + carrier board
  • Size: 130mm x 90mm
  • Layer: SOM 8-layer/carrier board 4-layer
System on Module parameters
  • CPU: Allwinner A733 ARM processor
  • Frequency: Octa-core 64bit 2*Cortex-A76+6*Cortex-A55 CPU, 12nm manufacturing process, main frequency max up to 2.0GHz
  • GPU: BXM-4-64 MC1 GPU, support OpenGL ES 3.2, Vulkan 1.3, OpenCL 3.0
  • NPU: 3Tops NPU
  • ISP: Max up to 24M@25fps
  • CODEC:
                Video Decoder:
                8K@24fps (H.265 MP, VP9, AVS2), 4K@30fps (H.264 BL/MP/HP)
                Video Encoder: 4K@30fps(H.265,H.264), 4K@15fps MJPG
                 Picture CODEC: JPEG encoder up to 4K@15fps ; JPEG decoder up to 1080P@60fps
  • RAM: 2GB/4GB/8GB/16GB LPDDR5 (2GB as standard, and 4GB/8GB/16GB as optional)
  • Storage: 8GB/16GB/32GB/64GB/128GB/256GB eMMC, UFS3.0
  • Support UART, TWI, ADC, PWM, GPIO, USB2.0, USB3.0, HDMI, SPI, SDIO3.0 etc.
  • Support Android 15, Buildroot, Debian 11 OS
Interfaces parameters
  • Power: DC 12V
  • Ethernet: 1 x GMAC, support 1000Mbps Ethernet
  • Wireless: Wifi 6 and Bluetooth 5.4
  • Display: 1 x HDMI2.0b, max up to 4K@60Hz
                  2 x MIPI DSI, single channel DSI max up to 2K@120fps, dual channels DSI max up to
                  2.5K@60fps or 4K@45fps
                  1 x DP1.4, Type-c to DP1.4, max up to 4K@60Hz
  • Camera: 2 x MIPI-CSI
  • Audio: 1 x HDMI audio output
               1 x Phone output (No MIC record)
               2 x Mic input
               2 x Speaker output
  • USB: 2 x USB2.0, 1 x Type-C
  • FAN: 1 x FAN (5V)
  • PCIE: 1 x M.2 (Support 2280 SSD)
  • TF card: 1 x TF card
  • Other Interfaces: 3 x UART
                                1 x Debug UART
                                4 x ADC
                                1 x RTC
Electrical characteristics
  • Operating Temperature：-25℃- 75℃
  • Storage Temperature：-30℃- 80℃
  • Storage humidity: 10%～80 %
Hardware interface
  • 【1】 RJ45 gigabit Ethernet
  • 【2】 TF card
  • 【3】 HDMI 2.0
  • 【4】 Type-C to DP1.4
  • 【5】 USB2.0 host
  • 【6】 DC 12V
  • 【7】 FAN 5v
  • 【8】 MIPI Camera interface
  • 【9】 MIPI Camera interface
  • 【10】 MIPI LCD display interface
  • 【11】 Earphone
  • 【12】 Speaker left channel
  • 【13】 Speaker right channel
  • 【14】 MIC audio input
  • 【15】 MIC audio input
  • 【16】 MIPI LCD display interface
  • 【17】 UART3
  • 【18】 UART2
  • 【19】 UART4
  • 【20】 Debug serial port
  • 【21】 Wifi/BT antenna slot
  • 【22】 Wifi/BT module
  • 【23】 GPIO expansion interface
  • 【24】 Power key
  • 【25】 Reset key
  • 【26】 Custom key
  • 【27】 Upgrade key
  • 【28】 RTC battery slot
  • 【29】 M.2 SSD interface
Others
  • OS: Android 15, Buildroot, Debian 11 OS
  • Service: A733 system on module + hardware custom + software develop + OEM/ODM
Application
  • It is applicable to commercial display advertising machines with high-definition display, vending machines, teaching terminals, automatic recognition, robots, security monitoring, financial POS, vehicle control terminals, etc., lowering the R&D threshold and accelerating the product R&D cycle.

Packing List

Standard List:
  • 1 x A733 gold finger development board
  • 12V/2A power adapter x 1
  • Cloud disk link (Includes system on module and hardware schematics in PDF, source code, chip datasheet and LCD manual, and develop tools, and manuals)
