- Allwinner A733 Gold Finger System on Module
- The module take octa-core big-little core architecture, 2*Cortex-A76@2.0GHz+6*Cortex-A55@1.8GHz, and 12nm manufacturing process, integrated independence 3T NPU and RISC-V Xuantie E902 co-processor, onboard BXM-4-64 MC1 GPU
- Check Customized Solution
Customize Now >> - Viewed：397
- To Learn More
- A733
- System on Module
- CPU: A733 (2*A76 +6*A55 octa-core 2.0GHz)
- Quality Good, Stable and Reliable
- Integrated independence 3T NPU and RISC-V Xuantie E902 co-processor
- CPU2.0GHz*8
- LPDDR52G
- EMMC16G
A733 System on Module (shorts for A733 SOM) Introduction:
A733 system on module is a product platform launched by Shenzhen Graperain Technology Co., Ltd. based on the Rockchip A733 (64-bit octa-core 2*A76+6*A55) chip.
A733 system on module take 64 bit AIOT A733 CPU, dual core Cortex-A76@2.0GHz +Hexa-core Cortex-A55@1.8GHz. A733 takes 12nm manufacturing process, integrated independence 3T NPU and RISC-V Xuantie E902, onboard BXM-4-64MC1 GPU.
Its DDR max support 16GB, PCIe3.0, and it support 8K video decoder and 4K video encoder. Our company would provide user technology support and reference designs during testing and developing, which will assist user take secondary development efficiently and quickly create independently controllable products.
A733 System on Module Features:
- Size: 69.6mm x 38mm
- Main Frequency max up to 2.0GHz, 12nm manufacturing process, integrated independence 3T
- NPU and RISC – V Xuantie E902 co-processor
- Support kinds of multiple capacities eMMC and UFS3.0
- 2GB DDR as standard, 4GB/8GB/16GB LPDDR5 as optional
- Supports PCIe 3.0, expandable SSD storage
- Support UART, TWI, ADC, PWM, GPIO, USB2.0, USB3.0, HDMI, SPI, SDIO3.0 etc.
- Support Android 15, Buildroot, and Debian 11 OS
Structure Parameter
Structure Parameter
- Appearance: Gold finger version
- Size: 69.6mm x 38mm
- Pitch: 0.5mm
- PIN number: 260 PIN
- Process: 8-layers immersion gold
System Configuration
- CPU: Allwinner A733 ARM
- Main Frequency: Octa-core 64 bit 2*Cortex-A76+6*Cortex-A55 processor, 12nm manufacturing process, main frequency max up to 2.0GHz
- GPU: BXM-4-64 MC1 GPU, support OpenGL ES 3.2, Vulkan 1.3, OpenCL 3.0
- NPU: 3TOPS NPU
- ISP: Max up to 24M@25fps
- CODEC
Video Decoder: 8K@24fps (H.265 MP, VP9, AVS2), 4K@30fps (H.264 BL/MP/HP)
Video Encoder: 4K@30fps(H.265,H.264), 4K@15fps MJPG
Picture CODEC: JPEG encoder up to 4K@15fps; JPEG decoder up to 1080P@60fps - RAM: Support 2GB/4GB/8GB/16GB LPDDR5 (2GB standard, 4GB/8GB/16GB optional)
- Storage: Support 8GB/16GB/32GB/64GB/128GB/256GB EMMC, UFS3.0
- Support UART, TWI, ADC, PWM, GPIO, USB2.0, USB3.0, HDMI, SPI, SDIO3.0 etc.
- Support Android 15, Buildroot, Debian 11 OS
Interfaces Parameter
- Power: DC 12V
- Ethernet: 1 x GMAC, support 1000Mbps Ethernet
- Wireless: Support WIFI 6 and Bluetooth 5.4
- Display: 1 x HDMI2.0b, max up to 4K@60Hz
1 x DP1.4/EDP1.4b, max up to 4K@60Hz
2 x MIPI DSI, single channel DSI max up to 2K@120fps, dual channels DSI max up to
2.5K@60fps or 4K@45fps
1 x Dual channels LVDS, max up to 1920x1080@60fps
1 x RGB, max up to 1920x1080@60fps - Audio: 5 x I2S, support I2S/TDM/PCM
1 x DMIC (8 channels, support 8K—48K sampling rate) - Camera: 2 x 4Lane MIPI CSI
1 x 2Lane MIPI CSI - USB: 1 x USB3.1 Gen2 DRD (And DP1.4/EDP1.4 reuse), support full-function
- Type-C:1 x USB2.0 DRD
1 x USB2.0 HOST - PCIE: 1 x PCIE 3.0, support SSD
- SDIO：1 x SDIO3.0
- SPI：5 x SPI
- PWM：3 x 10-channel PWM
- TWI：16 x TWI
- IR：2 x IR_RX; 1 x IR_TX
- UART: 9 x UART, UART0 for debug UART
- ADC: 1 x 7-channel GPADC; 1 x 1-channel LRADC
Electrical Features
- Operating Temperature：-25℃- 75℃
- Storage Temperature：-30℃- 80℃
- Storage humidity: 10%～80 %
Others
- OS: Android 15, Buildroot, Debian 11 OS
- Service: A733 system on module + hardware custom + software develop + OEM/ODM

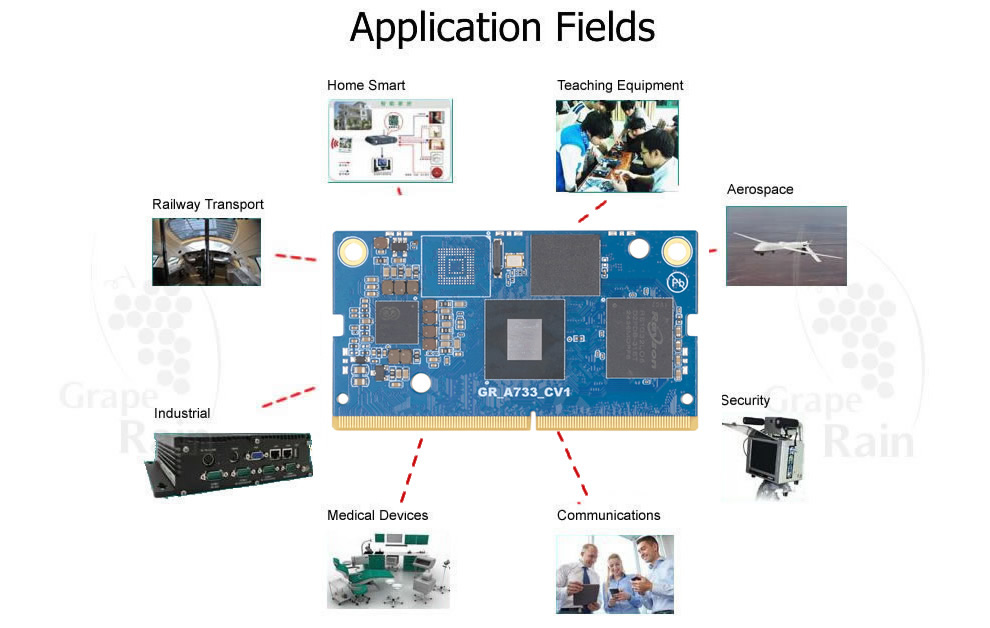

Applications
- Applicable industries: Handheld devices, power, communication, medical care, network, security, finance, consumer electronics, display control, teaching, advertising machines etc.

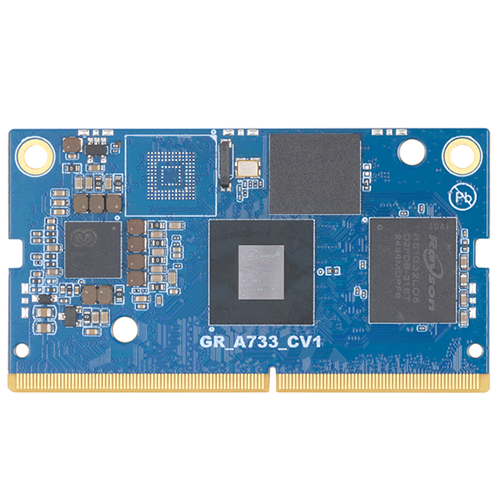

A733 SOM Appearance

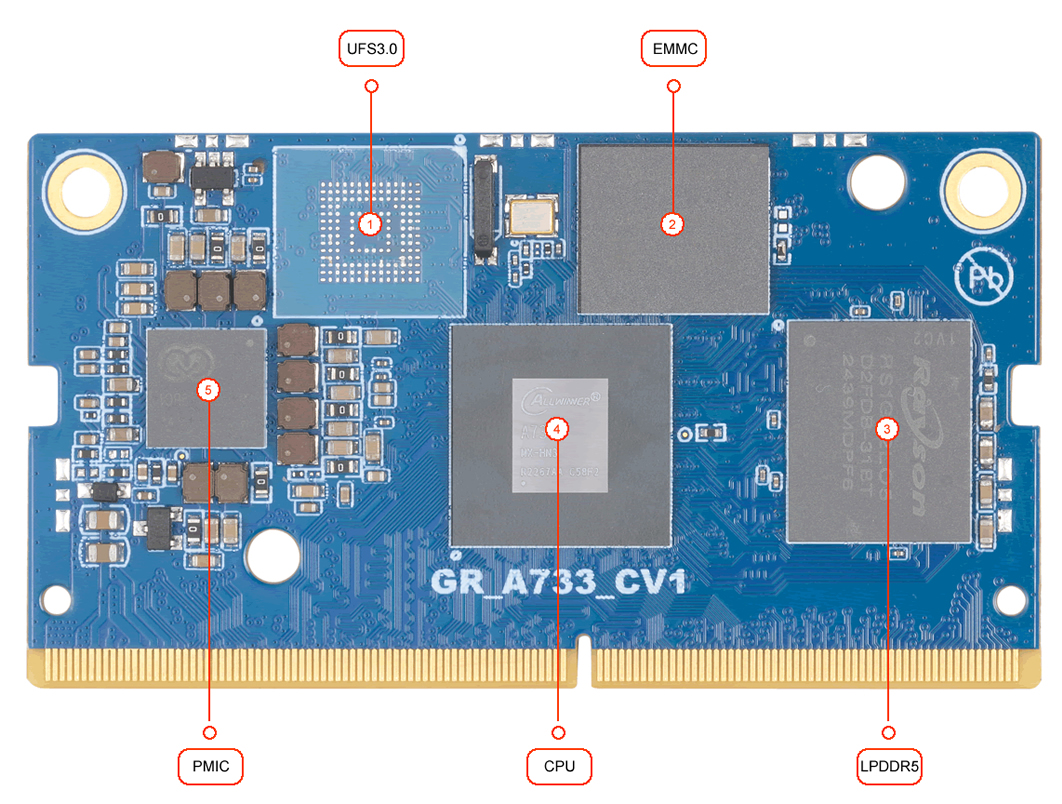

A733 SOM Top View
