 New arrival G4418 Ibox SBC Single Board Computer compatible to Samsung S5P6818 64bit Octa-Core
Home  /  ARM Embedded Products  >  SBC Single Board Computer  >  G3399 SBC Single Board Computer



  • single board computer linux
  • RK3399
  • Single Board Computer
  • CPU:RK3399 (ARM Cortex-A53+A72)
  • Dual-core “work-station-level” Cortex-A72 + Quad-core Cortex-A53
  • Supports OpenGL, H.265 encoder, dual MIPI-CSI, dual ISP, PCIe, USB3.0, USB2.0, TypeC etc.
  • CPU
    1.4GHz*4
    2.0GHz*2
  • DDR32G
  • EMMC
    8G
  • android single board computer
  • Powerful performance, reliable and stable

  • G3399 SBC is based on Rockchip RK3399, 64 bit 6-core, work-station-level processor. It’s Dual-core Cortex-A72 up to 2.0GHz, Quad-core Cortex-A53 up to 1.5GHz and almost 100% performance up than A15/A17/A57.


    G3399 SBC takes 8-layer immersion gold process. With its best electrical and anti-interference performance, G3399 is stable. And the size is only 120mm*88mm, can be applied in many areas.

  • single board linux computer supporting Android5.1, Linux+qt, Ubuntu OS
  • Rich software sources, multi OS supporting

  • G3399 single board computer uses powerful RK3399, 2GB/4GB DDR3, 8GB/16GB/32GB eMMC, independent power management system, Ethernet, variable interfaces. It supports Android7.1, Linux and Debian.
  • single board android computer
  • Varieties interfaces, complete functions

  • Interfaces: Ethernet, EDP, Dual MIPI-CSI, SPI, HDMI, camera, USB3.0 etc. Greperain G3399 single board computer almost achieves all the functions. Customers can use the SBC to develop or as final product.




Product Introduction

G3399 SBC is based on Rockchip RK3399, 64 bit 6-core, work-station-level processor. It’s Dual-core Cortex-A72 up to 2.0GHz, Quad-core Cortex-A53 up to 1.5GHz and almost 100% performance up than A15/A17/A57.



Integrating with ARM Mali-T860 MP4, it supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL,Directx11,AFBC. With such powerful GPU, RK3399 can be applied in a lot of areas, such as computer vision, learning machine, 4K 3D etc. It also supports H.265 HEVC, VP9, H.265 encoder and 4K HDR.



Interfaces: Dual MIPI-CSI, dual ISP, PCIe, USB3.0, USB2.0, TypeC etc. G3399 SBC uses RK3399, 2GB/4GB DDR3, 8GB/16GB/32GB eMMC, independent power management system, Ethernet, variable interfaces. It supports Android7.1, Linux and Debian. G3399 SBC takes 8-layer immersion gold process. With its best electrical and anti-interference performance, G3399 is stable. And the size is only 120mm*88mm, can be applied in many areas.



G3399 SBC size:120mm * 88mm



Checking RK3399 Development Board Instruction>>

Checking RK3399 SOM Instruction>>



android single board computer Application Field


Specifications

Parameters
  • Out appearance : Single board computer
  • Size:120mm*88mm;
  • Layer: Layer


Functions and features

System Configuration
  • CPU: Rockchip RK3399
  • Frequency:Cortex A53 quad core1.4GHz +dual core A72(2GHz)
  • RAM: standard 2GB,can be custom to 4GB
  • CPU: RK3399
  • EMMC: 4GB/8GB/16GB/32GB eMMC optional, standard8GB
  • Power IC: RK808, dynamic frequency modulation
  • Graphic and video : Mali-T860 MP4,quad core GPU,Supports OpenGL ES 1.1/2.0/3.0/3.1,Openvg1.1,OpenCL,Directx11,Supports 4K VP9, 4K 10bits H265/H.264 video endocer, up to 60 fps,1080P multi-form video encoder 1080P video encoder, H.264, VP8


Specifications

Electrical characteristics
  • Input Voltage: 12V/2A
  • Output Voltage:12V,5V,3.3V;
  • Storage temperature: -30~80 degree
  • Working temperature: -20~70 degree

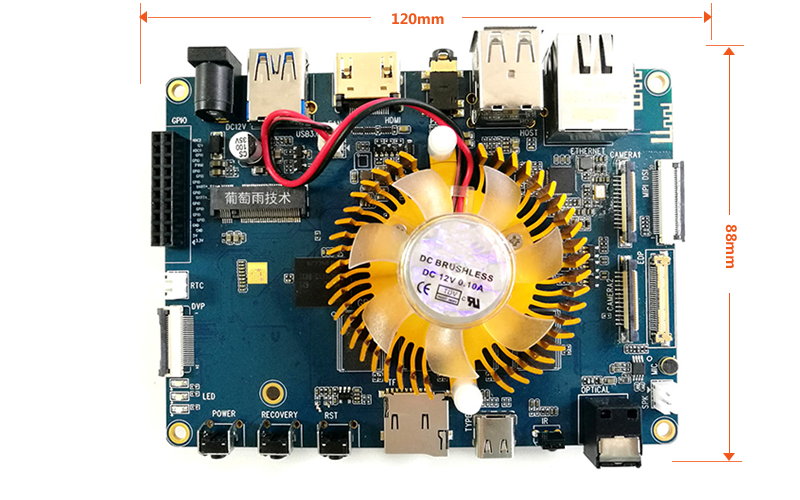

SBC size


ubuntu single board computer size


SBC interfaces


single board computer ubuntu interfaces1


SBC interfaces1


single board computer ubuntu interfaces1


SBC interfaces2


arm linux sbc interfaces2

Parameters

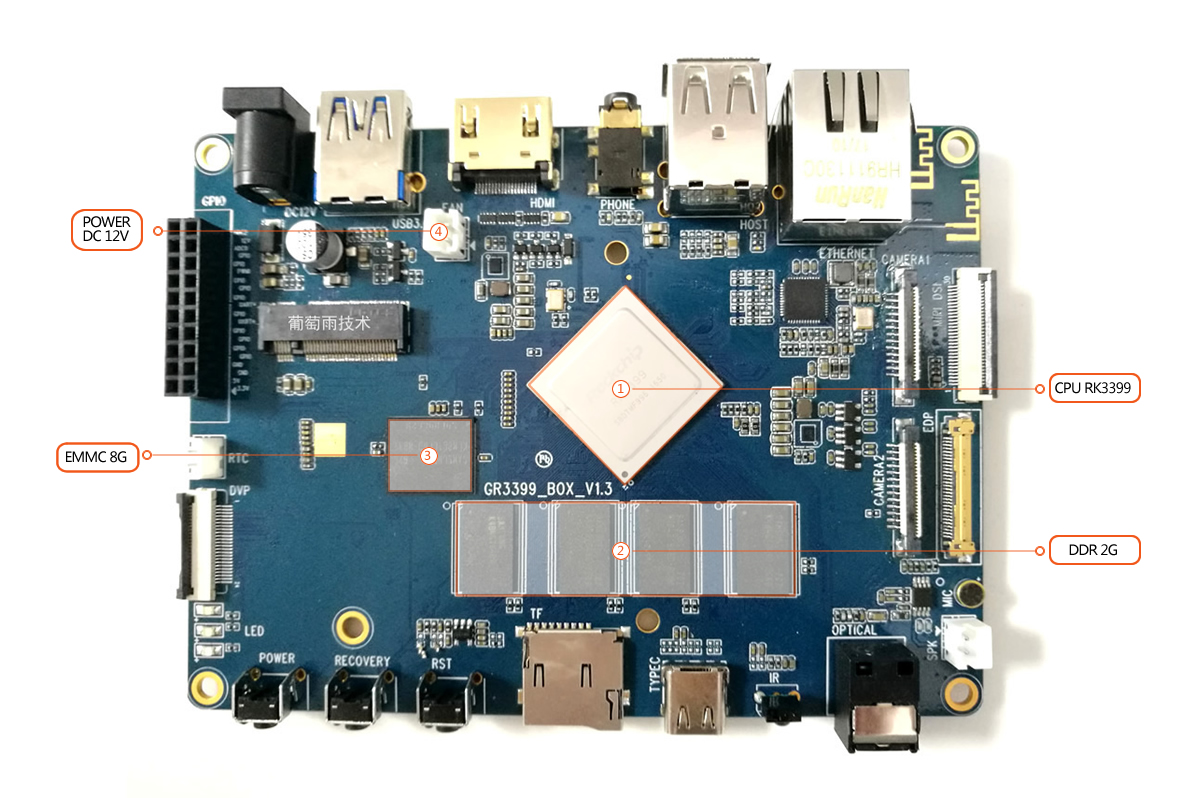

G3399 SBC front side 1:
  • 【1】CPU: Rockchip RK3399, Cortex A53 quad core1.4GHz +dual core A72(2GHz)
  • 【2】RAM: standard 2GB,can be custom to 4GB
  • 【3】EMMC: Default 8GB, optional 16GB
  • 【4】Fan power port: 12V output
G3399 SBC front side 2:
  • 【1】POWER: DC 12V input
  • 【2】USB3.0: USB3.0
  • 【3】HDMI OUT
  • 【4】Audio earphone output
  • 【5】USB2.0 * 2: USB2.0 double-layer
  • 【6】RJ45: Gigabit ethernet
  • 【7】WIFI/BT on board atennna
  • 【8】WIFI/BT on board atennna
  • 【9】MIPI DSI: MIPI display
  • 【10】EDP: EDP display
  • 【11】MIPI CSI: MIPI camera
  • 【12】MIC: Mic recording
  • 【13】SPK
  • 【14】SPDIF: Audio optical
  • 【15】IR: IR receive
  • 【16】TYPEC: for debug and upgrade
  • 【17】TF card slot
  • 【18】RST: Reset
  • 【19】RECOVERY: upgrade/return key
  • 【20】POWER:Power key
  • 【21】LED light
  • 【22】Parallel camera
  • 【23】RTC
  • 【24】Cooling fan
  • 【25】PCIE M.2, to connect hard disk etc.
  • 【26】Extension GPIO:GPIO extension socket
  • 【27】Fan power:12V output

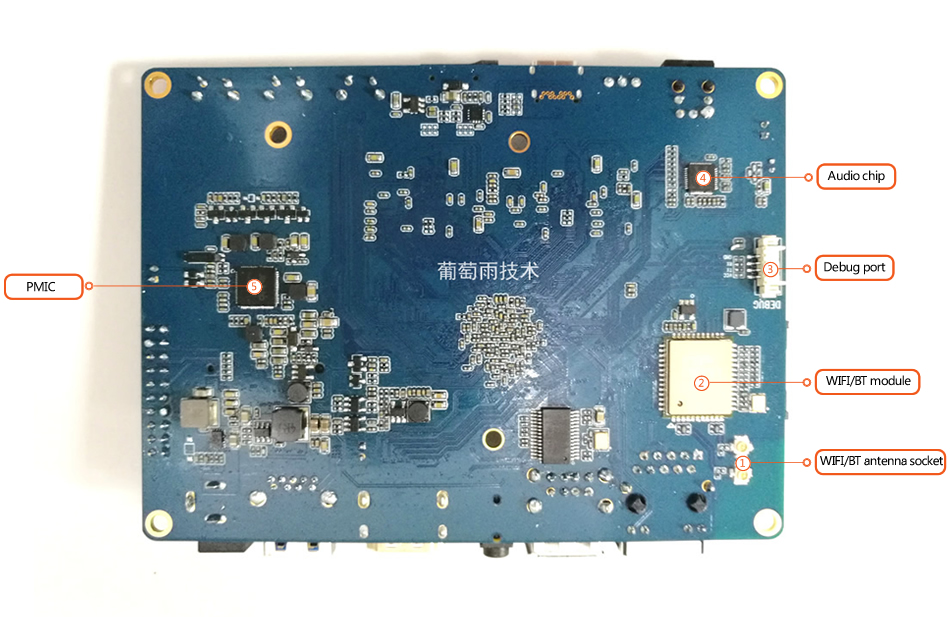

G3399 SBC back side:
  • 【1】To connect external WIFI/BT antenna
  • 【2】WIFI/BT module:WIFI/BT AP6354
  • 【3】Debug port
  • 【4】Audio chip ALC5651
  • 【5】PMIC:Power management IC
Others:
  • 【1】OS: Android7.1, Linux and Debian.
  • 【2】Custom service: G3399 SOM, custom hardware + software + OEM/ODM
Applied area:
  • VR, TV-BOX, laptop, car, communication, smart home, advertising machine, POS, thin client, VOIP, monitoring, IOT etc.

Packing list

Standard :
  • G3399 single board computer
  • 12V/2A power adapter
  • TTL to RS232 transfer board
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)
Optional:
  • 7 inch 1024x600 mipi capacitive touch screen
  • 13MP mipi camera
  • Cooling fan
  • USB to serial cable
  • HDMI TypeA cable
  • 8G TF card
  • Speaker
  • TypeC cable




Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
