  • RK3399
  • System on Module
  • CPU:RK3399 ( A53 quad core 1.4 Ghz + A72 dual core 2 Ghz)
  • Competitive product, Stronger & More Stable and Reliable
  • Full expansibility, up to 200 pin, 55mm*55mm*3mm
  • CPU
    1.4GHz*4
    1.8GHz*2
  • LPDDR4
    2G
  • EMMC
    8G

The King of octa core

2GB RAM as standard and 4GB optional.

  • King of Six Core

    A53 Quad Core + A72 Dual Core CPU
    Cortex A53 quad Core 1.4 Ghz, and A72 dual core 1.8GHz
    As Swift As Lighting

  • 4GB RAM /32GB EMMC

    LPDDR4 dual channels




  • RK808, Dynamic Frequency Modulation

    MPU to insure work stable




  • Android 7.1 OS

    Android 7.1 OS/linux/Debian




Product instruction

G3399 stamp hole system on module bases on Rockchip RK3399 (64bit) chip platform, which is designed by Shenzhen Graperain Technology Co., Ltd..



G3399 SOM is based on Rockchip RK3399, 64 bit 6-core, work-station-level processor. It’s Dual-core Cortex-A72 + Quad-core Cortex-A53. The frequency is up to 1.8GHz. The new kernel is almost 100% performance up than A15/A17/A57.



Integrated with ARM Mali-T860 MP4 graphics processor, supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, Directx11, AFBC ( ARM Frame Buffer Compression ). Such powerful GPU supports H.265HEVC and VP9, H.265 encode and 4K HDR. And it can be applied to computer vision, learning machine, 4K 3D etc..



Interfaces: Dual MIPI-CSI, dual ISP, PCIe, USB3.0, USB2.0, TypeC etc.



Besides powerful performance RK3399, G3399 SOM equips 2GB/4GB DDR3, 8GB/16GB/32GB eMMC high-speed storage. Independent power management system, powerful network scalability, abundant display interfaces. Supports Android 7.1, Linux, Debian OS.



G3399 development board takes SOM + carrier board design. SOM has rich expansion, up to 200 PIN, speed up to 2.0Hz. The PCB is designed in an 8-layer process with optimum electrical characteristics and anti-interference characteristics for stable and reliable operation.



Checking RK3399 Development Board Instruction>>

Checking RK3399 Single Board Computer Instruction>>




G3399 SOM Features

  • Best Size: 55mm*55mm
  • RK808 PMU power management design
  • 8G eMMC in default
  • LPDDR4 design, 2G in default, 4G optional
  • Android 7.1, Linux+qt, Debian
  • Gigabit Ethernet
  • Run 7 days
  • 4K Video Hard Decoding
  • G3399 system on module takes RK3399(A72, 6 core), frequency up to 1.8GHz, Mali-T860 MP4, Supports OpenGL ES 1.1/2.0/3.0, Openvg1.1, OpenCL, Directx11. Supports 4K x 2k, H.264 and 10 bits H.265 video decoding. Antutu benchmark over 50000.
  • G3399 SOM Size and PINs

  • Size: 55mm*55mm*3mm

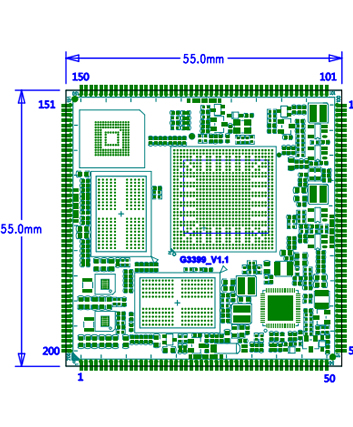

    System on module size and pin arrangement Only 55mm*55mm*3mm, small but enough GPIO With a custom 2/4 layer carrier board, customers can design easily

  • Pins up to 200, meets all kinds of expansion requirements

  • G3399 stamp hole system on module has rich expansion, up to 200 PIN, speed up to 2.0Hz. The PCB is designed in an 8-layer process with optimum electrical characteristics and anti-interference characteristics for stable and reliable operation.


    Interfaces: eDP, Dual MIPI-CSI, dual ISP, PCIe, USB3.0, USB2.0, TypeC etc.

G3399 SOM Parameters

Structure Parameter:
  • Outlook: Stamp hole
  • Size：55mm*55mm*3mm
  • Pin Distance：1.1mm
  • Pin Quantity：200 PIN
  • Craft：8 layer
System Configuration
  • CPU: RK3399, Cortex A53 quad core 1.4GHz + dual core A72（1.8GHz）
  • RAM: LPDDR4, default 2GB, 4GB optional
  • EMMC: 4GB/8GB/16GB/32GB eMMC optional, default 8GB
  • Power IC: RK808, support dynamic frequency
  • Graph and Video Processor: Mali-T860 MP4, quad core GPU OpenGL ES 1.1/2.0/3.0/3.1 Openvg1.1,OpenCL，Directx11 4K VP9 and 4K 10bits H265/H.264 video decoding, up to 60 fps 1080P multi-format video decoding 1080P video decoding, such as H.264, VP8
Interface Parameters:
  • Display: MIPI, eDP output
  • Ethernet: RTL8211E gigabit Ethernet PHY
  • Touch: Capacitive touch,supports USB serial ports extension touch
  • Audio: AC97/IIS/PCM, supports record and play
  • SD: Dual channels SDIO output
  • eMMC: Onboard eMMC interface, no pin output any more
  • USB HOST:Two channels HOST 2.0, one channel HOST 3.0
  • USB TYPEC: 1 channel
  • UART: Five channels serials, and supports flow control serial port
  • PWM: Two channels PWM output
  • IIC: Six channels IIC output
  • SPI: One channel SPI output
  • ADC: Five channels ADC
  • Camera:two channels MIPI output
  • HDMI: HDMI output, and audio output synchronization
  • MIPI: One channel MIPI RX, One channel MIPI TX, One channel MIPI RX/TX
  • EDP: Support
  • PCIE: Support
Electrical Features
  • Input Voltage：4.2V--5V
  • Output Voltage：1.8V/3.3V
  • Storage Temp.：-30~80℃
  • Working Temp.：-20~70℃
Others
  • Others: OS: Android 7.1, Linux and Debian OS
Applicable Industries
  • Handheld device, electricity, communication, medical treatment, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc
Typical Applications
  • VR, TV-BOX, laptop, car, communication, smart home, advertising machine, POS, thin client, VOIP, monitoring, IOT etc.

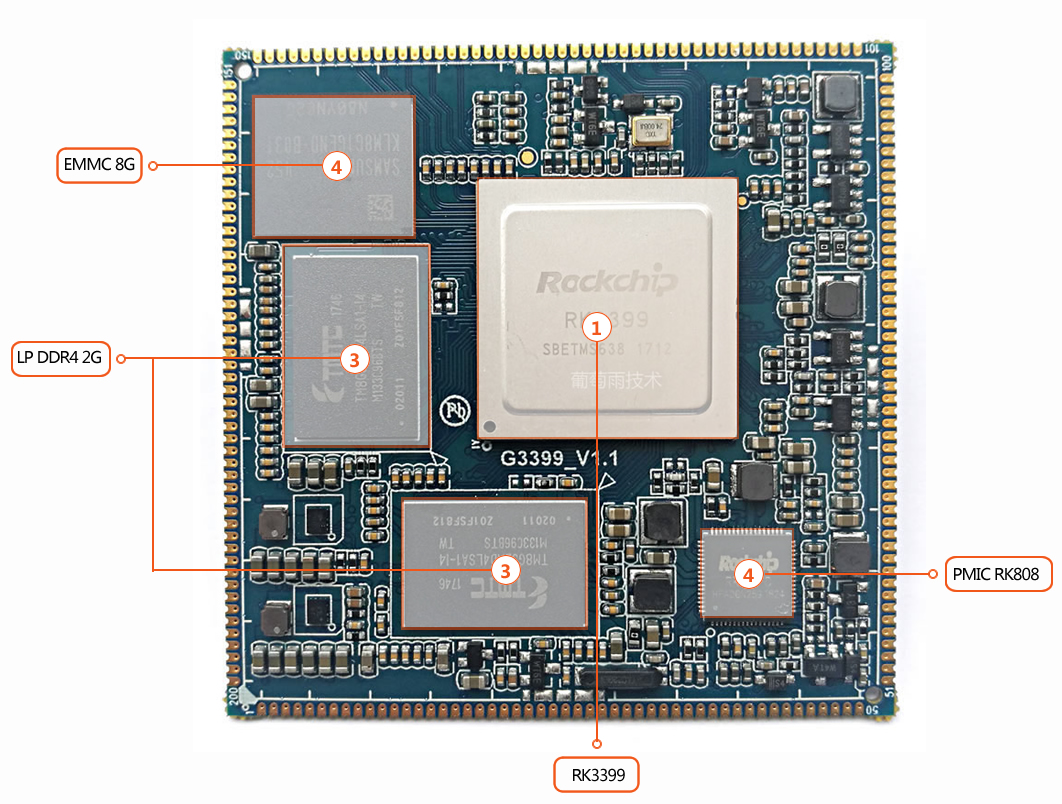

System on Module Appearance

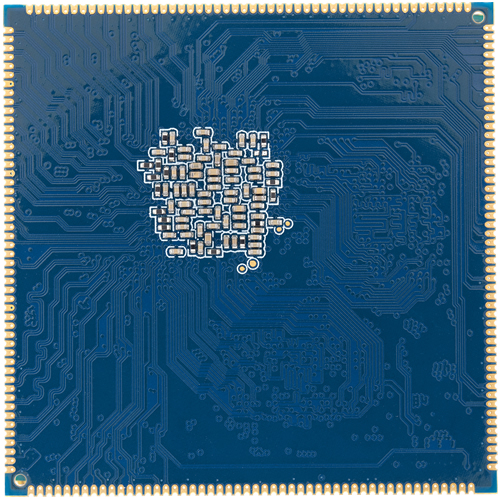

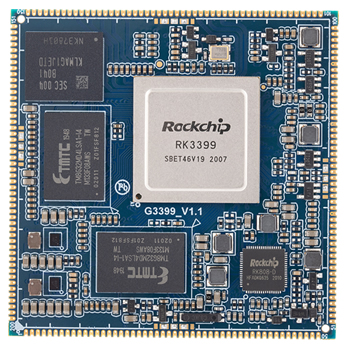

System on Module Real View
System on Module Panel

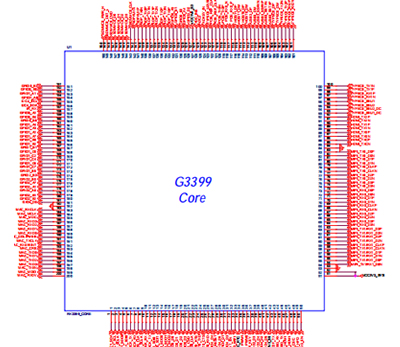

G3399 SOM Pin Definition

Pin 01
Pin #
Signal Instructions
Instructions
1
I2C1_SDA
2
I2C1_SCL
3
I2S1_SCLK
4
I2S1_SDO0
5
I2S1_SDI0
6
I2S1_LRCK_TX
7
I2S1_LRCK_RX
8
I2S_CLK
9
I2S0_SCLK
10
I2S0_LRCK_RX
11
I2S0_LRCK_TX
12
I2S0_SDI0
13
I2S0_SDI1
14
I2S0_SDO0
15
I2S0_SDO1
16
I2S0_SDO2
17
SDIO0_D0
18
SDIO0_D1
19
SDIO0_D2
20
SDIO0_D3
21
SDIO0_CMD
22
SDIO0_CLK
23
UART0_RTS
24

UART0_TXD

25
UART0_CTS
26
UART0_RXD
27
GPIO_D4
28
PMU_RESET
29
GPIO4_D6
30
GPIO4_D1
31
GPIO4_D3
32
PMIC_EXT_EN
33
RTC_CLKO_WIFI
34
VCC_RTC
35
PWM1
36
PWM0
37
POWER_KEY
38
GPIO2_D3
39
GPIO2_D4
40
GPIO4_D2
41
GPIO4_D5
42
VCC3V3_S5
43
SPDIF_TX
44
UART2DBG_RX
45
UART2DBG_TX
46
I2C_SDA_HDMI
47
I2C_SCL_HDMI
48
HDMI_CEC
49
PORT_PHD
50
VCC_CHAREG_EN
51
VCC3V3_SYS
52
VCC3V3_SYS
53
GND
54
MIPI_TX1/RX1_D0N
55
MIPI_TX1/RX1_D0P
56
MIPI_TX1/RX1_D1N
57
MIPI_TX1/RX1_D1P
58
MIPI_TX1/RX1_CLKN
59
MIPI_TX1/RX1_CLKP
60
MIPI_TX1/RX1_D2N
61
MIPI_TX1/RX1_D2P
62
MIPI_TX1/RX1_D3N
63
MIPI_TX1/RX1_D3P
64
MIPI_RX0_D3N
65
MIPI_RX0_D3P
66
MIPI_RX0_D2N
67
MIPI_RX0_D2P
68
MIPI_RX0_CLKN
69
MIPI_RX0_CLKP
70
MIPI_RX0_D1N
71
MIPI_RX0_D1P
72
MIPI_RX0_D0N
73
MIPI_RX0_D0P
74
MIPI_TX0_D3N
75
MIPI_TX0_D3P
76
MIPI_TX0_D2N
77
MIPI_TX0_D2P
78
MIPI_TX0_CLKN
79
MIPI_TX0_CLKP
80
MIPI_TX0_D1N
81
MIPI_TX0_D1P
82
MIPI_TX0_D0N
83
MIPI_TX0_D0P
84
GND
85
HDMI_TXCN
86
HDMI_TXCP
87
HDMI_TX0N
88
HDMI_TX0P
89
HDMI_TX1N
90
HDMI_TX1P
91
HDMI_TX2N
92
HDMI_TX2P
93
TYPEC0_SBU1_DC
94
TYPEC0_SBU2_DC
95
TYPEC0_SBU2
96
TYPEC0_SBU1
97
TYPEC0_RX1N
98
TYPEC0_RX1P
99
TYPEC0_TX1P
100
TYPEC0_TX1N
Pin 02
Pin #
Signal Instructions
Instructions
101
TYPEC0_RX2N
102
TYPEC0_RX2P
103
TYPEC0_TX2P
104
TYPEC0_TX2N
105
TYPEC0_DM
106
TYPEC0_DP
107
USB3_SSTXP
108
USB3_SSTXN
109
USB3_SSRXP
110
USB3_SSRXN
111
USB3_DM
112
USB3_DP
113
HOST0_DM
114
HOST0_DP
115
HOST1_DM
116
HOST1_DP
117
PCIE_RX0_P
118
PCIE_RX0_N
119
PCIE_TX0P
120
PCIE_TX0N
121
PCIE_REF_CLKN
122
PCIE_REF_CLKP
123
TYPEC0_U2VBUSDET
124
ADKEY_IN
125
ADC2
126
ADC_IN0
127
VCC1V8_S3
128
GPIO2_D2
129
GPIO0_A4
130
GPIO0_B2
131
GPIO0_B1
132
GPIO0_A3
133
EDP_TX3P
134
EDP_TX3N
135
EDP_TX2P
136
EDP_TX2N
137
EDP_TX1P
138
EDP_TX1N
139
EDP_TX0P
140
EDP_TX0N
141
EDPAUXP
142
EDPAUXN
143
SDMMC0_CLK
144
SDMMC0_D3
145
SDMMC0_D2
146
SDMMC0_D1
147
SDMMC0_D0
148
SDMMC0_CMD
149
SDMMC0_DET_L
150
SDMMC0_PWR_H
151
GPIO0_B3
152
GPIO0_B0
153
GPIO1_A1
154
GPIO1_A0
155
I2C4_SCL
156
I2C4_SDA
157
IR_RX
158
GPIO0_A2
159
GPIO0_B4
160
GPIO0_B5
161
GPIO1_A4
162
GPIO1_A3
163
GPIO1_A2
164
GPIO1_A7
165
GPIO1_B0
166
GPIO1_B2
167
GPIO1_B1
168
GPIO1_D0
169
GPIO1_C2
170
GPIO1_C4
171
GPIO1_C6
172
GPIO1_C7
173
GPIO1_B5
174
GPIO2_B3
175
GPIO2_B0
176
GPIO2_A7
177
GPIO2_A1
178
GPIO2_A0
179
GPIO2_B1
180
GPIO2_B2
181
GIO4_D0
182
GND
183
MAC_RXCLK
184
MAC_MCLK
185
MAC_MDC
186
MAC_RXD3
187
MAC_RXD2
188
MAC_RXD1
189
MAC_RXD0
190
MAC_COL
191
MAC_TXCLK
192
MAC_REX/INT
193
MAC_CRS
194
MAC_TXD0
195
MAC_TXD1
196
MAC_TXD2
197
MAC_TXD3
198
MAC_TXEN
199
MAC_MDIO
200
MAC_RXDV
