  • RK3399
  • Development Board
  • CPU:RK3399 (ARM Cortex-A72)
  • Dual-core “work-station-level” Cortex-A72 + Quad-core Cortex-A53
  • Supports OpenGL, H.265 encoder, dual MIPI-CSI, dual ISP, PCIe, USB3.0, USB2.0, TypeC etc.
  • CPU
    1.4GHz*4
    2.0GHz*2
  • DDR3
    2G
  • EMMC
    8G
  • Power Image Processing
  • Integrated with ARM Mali-T860 MP4 graphics processor, supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, Directx11, AFBC ( ARM Frame Buffer Compression ). Such powerful GPU supports H.265HEVC and VP9, H.265 encode and 4K HDR. And it can be applied to computer vision, learning machine, 4K 3D etc..

  • Rich software sources, multi OS supporting
  • GR3399 development board uses powerful RK3399, 2GB/4GB DDR3, 8GB/16GB/32GB eMMC, independent power management system, Ethernet, variable interfaces.

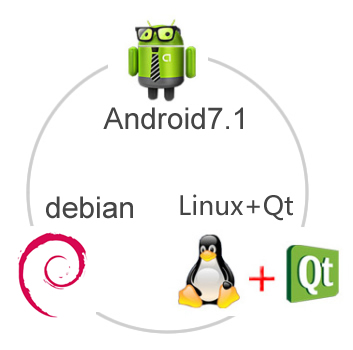

    It supports Android7.1, Linux and Debian.


  • GR3399 development board is of abundant interfaces and full functions.
  • GR3399 development board designed almost all the functions of the CPU, especially in data communication and expansion. Peripherals on board including: 4G LTE, TypeC, USB3.0, USB2.0, Gigabit Ethernet, dual-wifi, bluetooth, audio/video input/output, sensors, display port, communication port, cameras etc..





Best performance in 6 core in embedded area

●Super 6 core Cortex-A72  ●Dual-channel memory  ●Super performance  ●Stable and reliable  ●Long life cycle

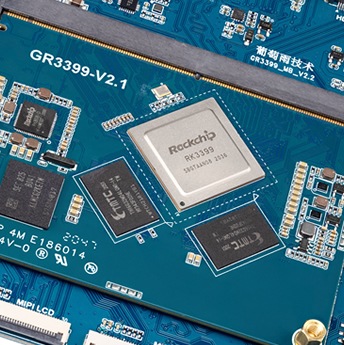

GR3399 SOM takes Rockchip 64 bit RK3399 which is “work-station” level. It takes dual Cortex-A72 + quad core Cortex-A53 architecture, frequency up to 2.0GHz. The new kernel performance enhanced 100%, compared with A15/A17/A57. Check RK3399 SOM more details

Brief Introduction

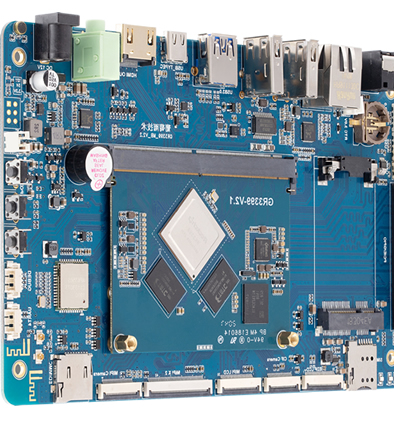

GR3399 dev board bases on Rockchip RK3399 (64bit) chip platform, which is designed by Shenzhen Graperain Technology Co., Ltd..



GR3399 dev board consists of GR3399 SOM and carrier board. GR3399 SOM is based on Rockchip RK3399, 64 bit 6-core, work-station-level processor. It’s Dual-core Cortex-A72 + Quad-core Cortex-A53. The frequency is up to 2.0GHz. The new kernel is almost 100% performance up than A15/A17/A57.

Integrated with ARM Mali-T860 MP4 graphics processor, supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, Directx11, AFBC ( ARM Frame Buffer Compression ). Such powerful GPU supports H.265HEVC and VP9, H.265 encode and 4K HDR. And it can be applied to computer vision, learning machine, 4K 3D etc..

Interfaces: Dual MIPI-CSI, dual ISP, PCIe, USB3.0, USB2.0, TypeC etc.

GR3399 development board designed almost all the functions of the CPU, especially in data communication and expansion. Peripherals on board including: 4G LTE, TypeC, USB3.0, USB2.0, Gigabit Ethernet, dual-wifi, bluetooth, audio/video input/output, sensors, display port, communication port, cameras etc..

It supports Android7.1, Linux and Debian. Source code are open.

Applications: high-definition display with advertising machine, vending machines, teaching terminals, automatic identification, robotics, security monitoring, financial POS, vehicle control terminals, VR, etc.. With the dev board to test, it will accelerate product development time.



GR3399 SOM size:82mm*60mm    GR3399 development board size:186mm*116mm
CCheck RK3399 SOM more details>>






Product Features

GR3399 dev board features:
  • Size: 186mm*116mm, can be used in final product.
  • Powerful functions, rich interfaces, wide applications.
  • Supports Android7.1, Linux, Debian. Source code open, accelerate develop time.
  • Stable and reliable board.


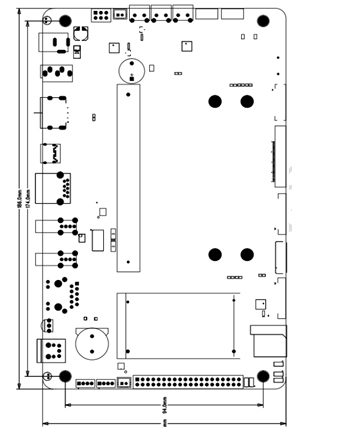

Development board size


Development board interfaces


Specification Parameters:

Parameters
  • Appearance:Gold finger SOM + carrier board
  • Size: 186mm*116mm
  • Layer: SOM 8-layer/carrier board 4-layer
System Configuration
  • CPU:Rockchip RK3399
  • Frequency:Cortex A53 quad core 1.4GHz + dual core A72 (2GHz)
  • RAM:standard 2GB, can be custom to 4GB
  • eMMC:4GB/8GB/16GB/32GB eMMC optional, standard 8GB
  • Power IC:RK808, dynamic frequency modulation
  • Graphic and video processor:Mali-T860 MP4, quad core GPU Support OpenGL ES 1.1/2.0/3.0/3.1, Openvg1.1, OpenCL, Directx11 Support 4K VP9 and 4K 10bits H265/H.264 video encoder, up to 60 fps 1080P multi-form video encoder 1080P video encoder, H.264, VP8
Interfaces parameters
  • Display:MIPI , eDP output
  • Ethernet:RTL8211E Gigabit PHY
  • Touch:Capacitive touch,can use USB or UART to extend resistive touch
  • Audio:AC97/IIS/PCM, support record and play
  • SD:2 channel SDIO output
  • eMMC:On board eMMC
  • Ethernet:Gigabit
  • USB HOST:2 channel HOST2.0, 1 channel HOST3.0
  • USB TYPEC:1 channel
  • UART:5 channel UART, support flow control uart
  • PWM :2 channel PWM output
  • IIC:6 channel IIC output
  • SPI:1 channel SPI output
  • ADC :5 channel ADC
  • Camera :1 channel BT656/BT601, 2 channel MIPI
  • HDMI:High-definition audio and video output, Audio and video synchronization output
  • MIPI:1channel MIPI RX, 1 channel MIPI TX, 1 channel MIPI RX/TX
  • eDP:Support
Electrical characteristics
  • Input Voltage:12V/2A
  • Output Voltage:12V/5V/3.3V
  • Storage temperature:-30~80 degree
  • Working temperature:-20~70 degree

Interfaces details

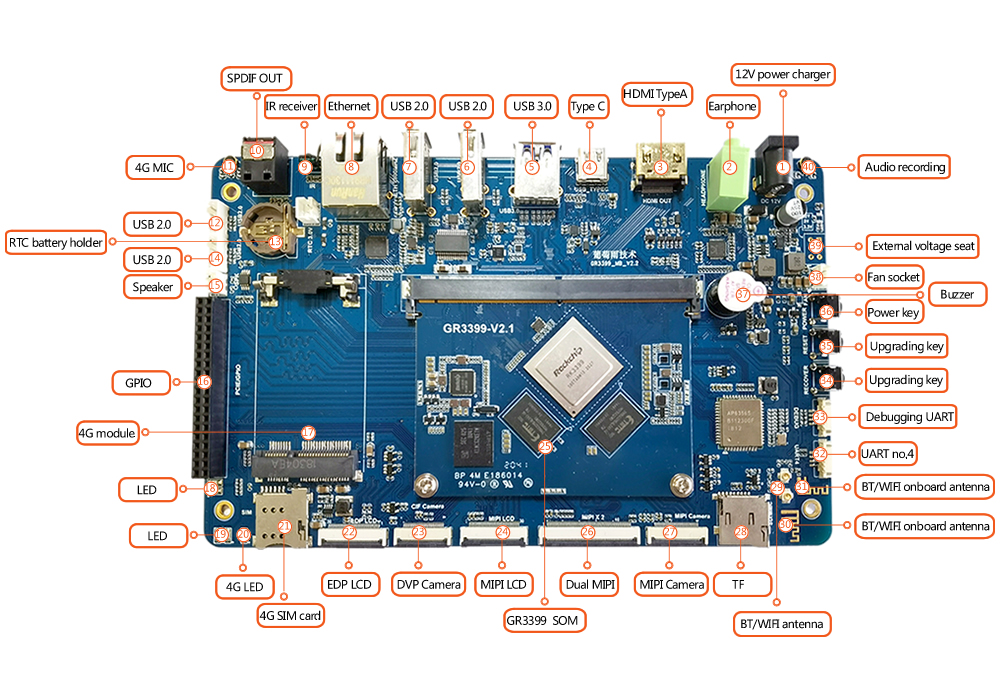

Interfaces details
  • 【1】12V power charger:12V power input
  • 【2】Earphone:Audio earphone output
  • 【3】HDMI TypeA:HDMI TypeA output
  • 【4】TypeC:TypeC
  • 【5】USB3.0:USB3.0
  • 【6】USB2.0:USB2.0
  • 【7】USB2.0:USB2.0
  • 【8】Ethernet:RJ45
  • 【9】IR receiver:IR receiver
  • 【10】SPDIF OUT:SPDIF output
  • 【11】4G Mic:4G communication record
  • 【12】USB2.0:USB2.0 4pin
  • 【13】RTC:RTC
  • 【14】USB2.0:USB2.0 4pin
  • 【15】Speaker:2pin speaker socket
  • 【16】GPIO :Include PCIE and GPIO extension
  • 【17】4G module :4G LTE, EC20 module in default
  • 【18】LED:Controllable LED
  • 【19】4G LED:4G LED light
  • 【20】LED:Controllable LED
  • 【21】4G SIM card:4G SIM card slot
  • 【22】EDP LCD:EDP LCD
  • 【23】DVP Camera:DVP Camera
  • 【24】MIPI LCD:MIPI LCD, standard 7 inch mipi
  • 【25】GR3399 SOM :GR3399 SOM
  • 【26】Dual MIPI:Dual MIPI, input/output
  • 【27】MIPI Camera:MIPI Camera, standard OV13850
  • 【28】TF card :TF card slot
  • 【29】BT/WIFI antenna:BT/WIFI antenna
  • 【30】BT/WIFI onboard antenna :BT/WIFI onboard antenna
  • 【31】BT/WIFI onboard antenna :BT/WIFI onboard antenna
  • 【32】UART no.4:UART no.4, TTL
  • 【33】Debugging UART:Debugging UART, TTL
  • 【34】Upgrading key:Upgrading key
  • 【35】Reset :Reset
  • 【36】Power:Power
  • 【37】Buzzer:Buzzer
  • 【38】Fan socket:Fan socket, 12V power supply
  • 【39】External voltage seat:External volt, 12V/5V/3.3V, GND
  • 【40】Audio recording:Audio recording MIC
  • 【41】Onboard gravity sensor, gyroscope, light sensor

Others

Others
  • OS: Android7.1, Linux and Debian.
  • Custom service: G3399 SOM, custom hardware + software + OEM/ODM
Applied area
  • With rich expansion of RK3399, it can be applied in industrial and consumer. For example, VR, TV-BOX, laptop, car, communication, smart home, advertising machine, POS, thin client, VOIP, monitoring, IOT etc.

Packing list

Standard
  • GR3399 development board
  • 12V/2A power adapter
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)
Optional
  • 7 inch 1024x600 mipi capacitive touch screen
  • 13MP mipi camera
  • Cooling fan
  • USB to serial cable
  • HDMI TypeA cable
  • 8G TF card
  • Speaker
  • TypeC cable
  • TTL to RS232 transfer board


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
