RK3288 main features list
As quad core processor becomes popular fast, either main consumer or industrial platform users are taking quad core processor to develop products. Graperain G3288 is such a board with full interfaces with cost effective.
| |
CPU |
|
RK3288 |
|
| |
Availability |
|
2014 |
|
| |
Technological Process |
|
28 nm |
|
| |
CPU frequency |
|
1.8G |
|
|
CPU |
|
Cortex-A17 quad core |
|
|
GPU |
|
ARM Mali-T764 GPU, support TE, ASTC, AFBC memory compress technology |
|
|
Memory |
|
Dual channel DRAM controller, 64 bits storage interface, support DDR3L, LPDDR2, LPDDR3 |
|
|
Image Processing |
|
support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11, Embedded high performance 2D/3D Accelerated Hardware, support 4K, H.265 hard decoding 10bits colour depth, HDMI2.0 Support 1080P Multimedia Decoding 1080P video coding, support H.264, VP8 and MVC image enhancement process, Geomerics Enlighten global real time engine, Display hardware low energy |
|
|
Display interface |
|
RGB，MIPI，LVDS，eDP；
Max support 3840X2160 resolution, and HDMI2.0 output |
|
|
Ethernet |
|
Gigabit |
|
|
GPIO |
|
3.3V |
|
|
LCD |
|
RGB，MIPI |
|
|
USB |
|
2 HOST2.0, 1 OTG |
|
|
ISP |
|
support , embedded 13M ISP |
|
G3288 comes with complete and stable Android5.1, Linux+qt, Ubuntu OS. Graperain is the first company that launched G3288 development board. G3288 development board contains of stamp hole system on module + carrier board design. 204 pins in total, max to 1.8GHz. The system on module uses 8-layer process design, ensure reliability and stability.
Check RK3288 SOM features>>
Brief Introduction

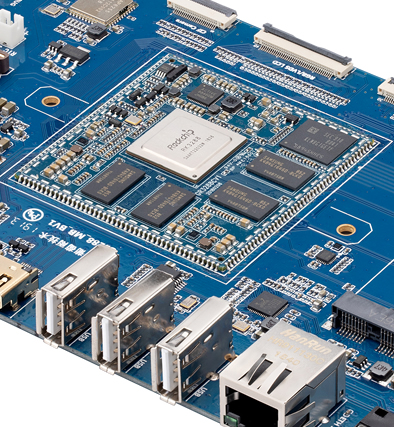

G3288 development board contains of stamp hole system on module, carrier board and LCD board. The system on module uses 8-layer process design, and is stable, which could be used in tablet pc, car machine, learning machine, POS machine, game machine, industry monitoring and many other fields. The chipset is Cortex-A17 quad core RK3288, frequency can be up to 1.8GHz.

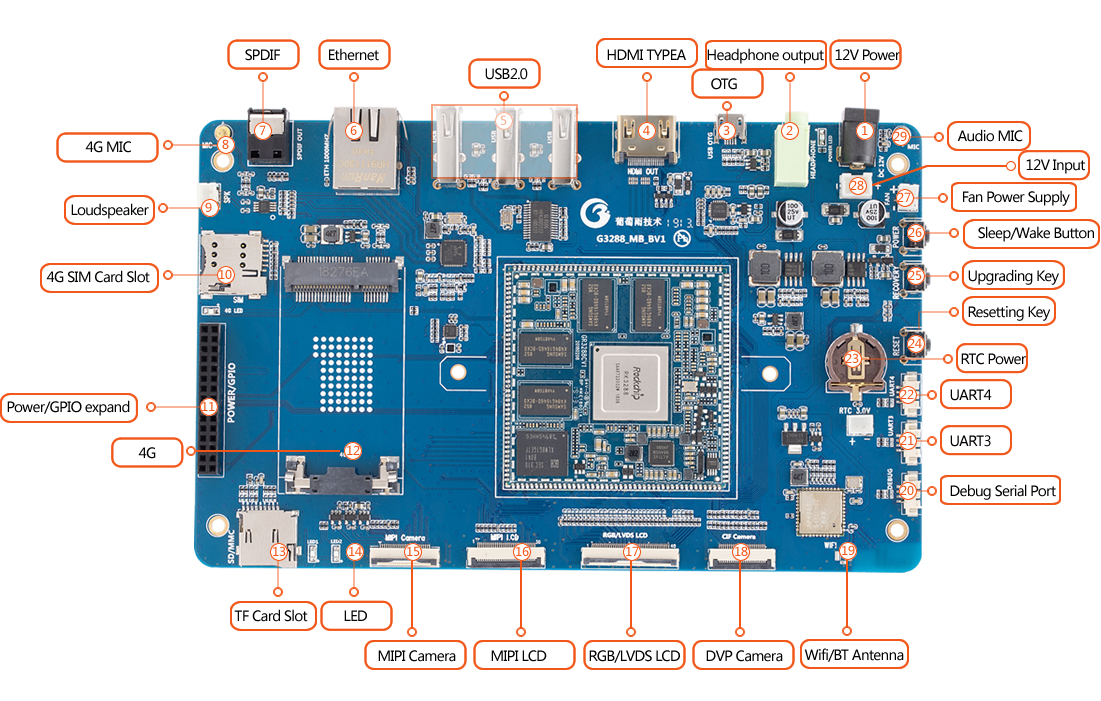

There are a lot of peripherals in carrier board, and it could demonstrate all functions of RK3288 chip, such as supports Ethernet, audio, wifi, BT, gyroscope, camera, etc. onboard HDMI, LVDS ports, MIPI ports ,etc. Meanwhile the hardware keep its uniform style, supports software boot, dormancy awakening and so on.

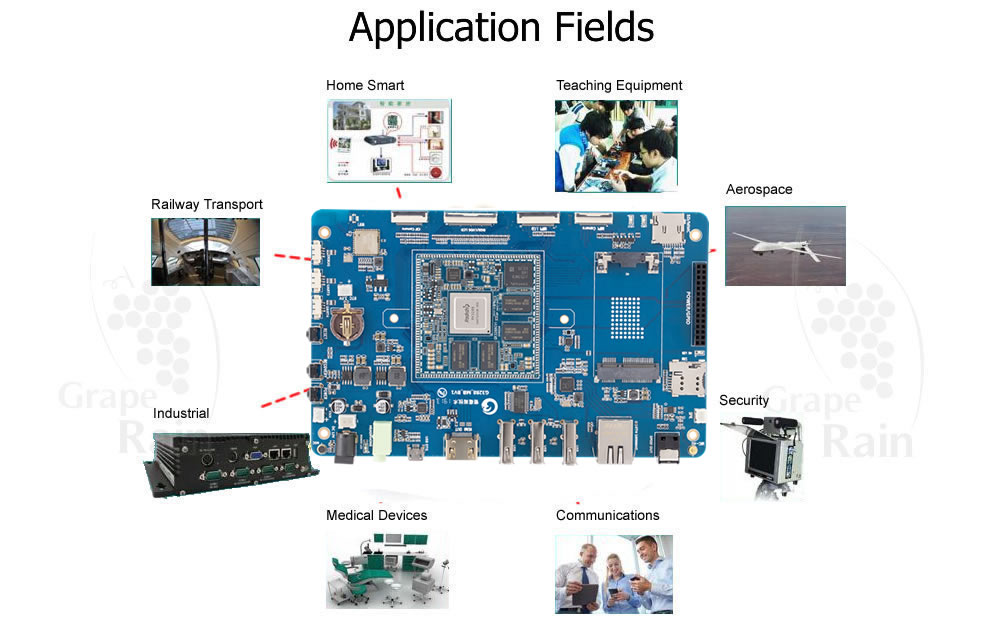

G3288 system on module could be used in industrial control, electric power, communications, medical, media, security, automotive, financial, consumer electronics, handheld devices, game consoles, display control, teaching instrument ,etc. More POS, game consoles, the teaching experiment platform, multimedia terminal, PDA, order machine, advertising machine and so on.

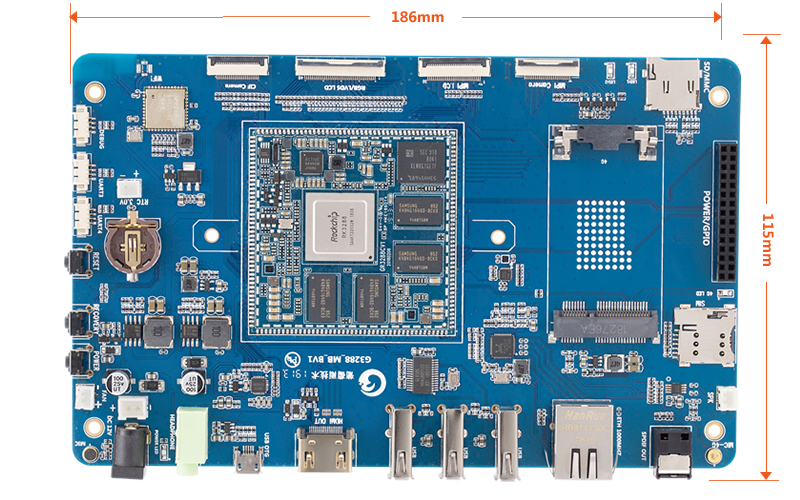

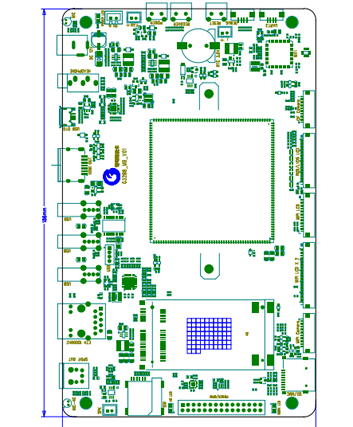

G3288 SOM size：55.8 mm* 55.8mm G3288 carrier board size：186.5mm * 115.6 mm Check RK3288 SOM features>>
