  • RK3288
  • RK3288
  • System on Module
  • CPU:RK3288 (ARM Cortex-A17)
  • Goods in the high-quality, and absolutely stable and reliable.
  • Best Size, Strong expandability, more 180 PIN 55.8 mm* 55.8mm*3mm
  • CPU
    1.8GHz*4
  • DDR3
    2G
  • EMMC
    8G

The King of Quad core

2GB RAM as standard, and 4GB optional.

  • A17 Quad Core CPU

    ARM Cortex-A17 and 1.8Ghz Quad Core



    A17 Quad Core CPU
  • 4GB Emmc, 32GB Memory






    4GB Emmc, 32GB Memory
  • Independence Power Management

    Takes RK818, it supports dynamic frequency modulation and coulombmeter,
    which could be insure it works stable.


    Independence Power Management
  • Android 5.1 Operating System

    Android 5.1 Operating System




    Android 5.1 Operating System

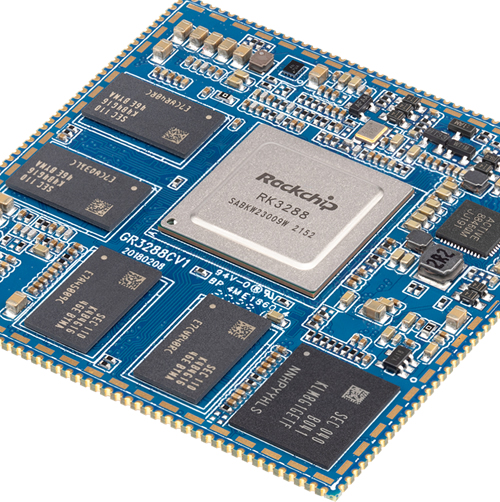

G3288 System on Module (shorts for G3288 SOM) Introduction:

G3288 SOM have been designed from Shenzhen Graperain Technology Co., lt, and it is based on Rockchip RK3288 ( A17 quad-core) chip.



G3288 SOM takes Rockchip RK3288 (A17 quad-core) CPU, and its basic frequency is 1.8Ghz, integrated Mali-T760 MP4 graphics processor, supports OpenGL ES1.1/2.0/3.0,OpenVG1.1,OpenCL, Directx11, and supports H.264 of 4K X 2K and 10bit H.265 video hard decoding, Anntutu run 50000.



Besides RK3288, and outfit 2GB/4GB DDR3, 8GB/16GB/32GB eMMC, independce power management, strong expandablity, rich display interfaces, and supports Android 5.1, Linux, Ubuntu OS, which make its perform well.



G3288 development board includes G3288 SOM + carrier board.



G3288 SOM is of more 180PIN,run 1.8GHz. It takes 8-layers immersion gold PCB, with the best electrical characteristics and anti-interference characteristics, all which make it works stably and reliably.



Checking RK3288 Development Board Instruction>>




G3288 SOM Features

G3288 SOM Features

Stronge graphics processor and 4K hard video decoding

  • Dual-frequency different show

    Dual-frequency different show


    Dual-frequency different show

  • HDMI 2.0 : HDMI video and audio sync out

    HDMI 2.0 : HDMI video and audio sync out


    HDMI 2.0 : HDMI video and audio sync out

  • 支持WIFI 双频

    Wifi Dual Band


    802.11b/g/n and 5G & 2.4G dual band

  • 支持Linux+4G

    Compatible 2K Display


    integrated Mali-T760 MP4 graphics processor, supports OpenGL ES1.1/2.0/3.0,OpenVG1.1,OpenCL,Directx11, and supports H.264 of 4K X 2K and 10bit H.265 hard video decoding.

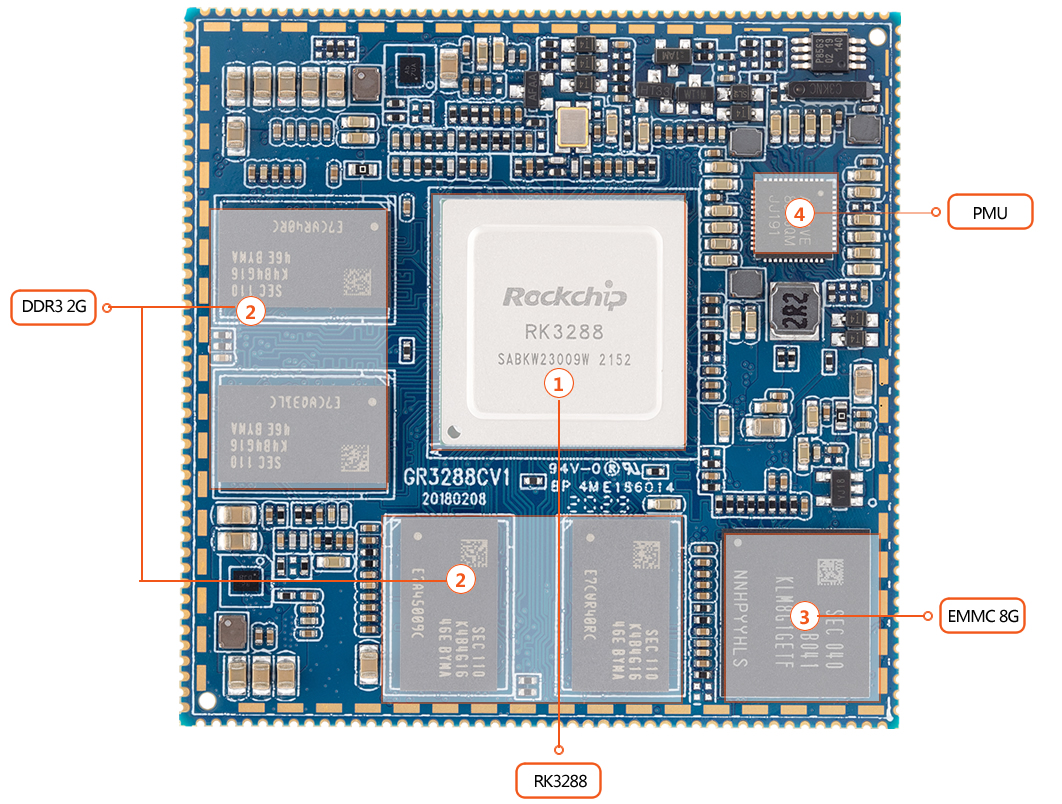

G3288 SOM Features Details:

G3288 SOM Features Details:
  • Best Size; 55.8mm*55.8mm*3mm
  • Takes RK818 PMU power management and keep work stable
  • Supports kinds of eMMC, Toshiba 8GB eMMC as default
  • Takes single channel DDR3, and 2GB as default. 4GB as optional
  • Supports power sleep wake up
  • Supports Android 5.1. Linux + qt, Ubuntu operating system
  • Onboard the Gigabit Ethernet
  • Supports HDMI2.0
  • Supports 2k display drive
核心板接口

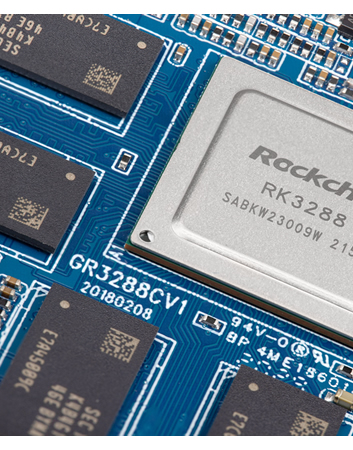

  • G3288 SOM Supports 4K Hard Video Decoding
  • G3288 SOM Supports 4K Hard Video Decoding
  • G3288 SOM takes Rockchip RK3288(A17 quad core) CPU, 1.8Ghz, mali-T760 MP4 GPU, supports OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL, Directx11, 4Kx2K H.264 and 10bits H.265 video hard decoding. Anntutu run 50000.

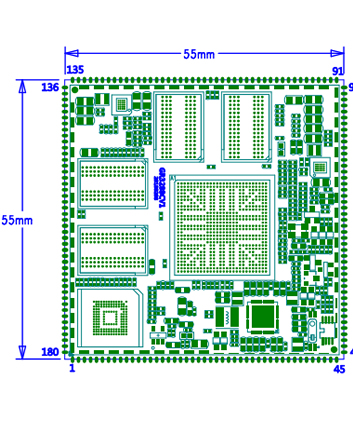

  • G3288 SOM Size and PINs
  • G3288 SOM Size and PINs
  • The best size: 55.8mm * 55.8mm *3mm


    Shenzhen Graperain Technology Co., Ltd. have integrated all its features into G3288 SOM yet. Customers only need to design the two or four layer carrier board, can realize high-end quad core product design.

  • 204 PINs
  • Pin Out 180 pins
  • Supports LVDS, MIPI output, gigabit Ethernet, HDMI 2.0 etc..


应用领域

Structure Parameter

Structure Parameter
  • Appearance:Stamp hole
  • System Dimension:55.8mm*55.8mm*3mm
  • Pin Pitch:1.1mm
  • Pin Quantity:180 PIN
  • Layer:8 layers immersion gold designed
System Configuration
  • CPU:RK3288,Quad core A17 1.8 GHz
  • RAM:2GB as default,and 4GB for optional
  • Storage: 4GB/8GB/16GB/32GB eMMC for optional, 8GB as default
  • Power IC:ACT8846
  • GPU: Mali-T760 MP4,supports OpenGL ES 1.1/2.0/3.0, Openvg1.1,OpenCL, Directx11 2D accelerate hardware, 4K H.264 and 10 bits H.265 video hard decoding, 1080P multiformat video decoding
  • Ethernet:RTL8211E the gigabit Ethernet PHY
Interfaces Parameter
  • Display Interfaces :LVDS、MIPI output
  • Touch Interfaces:Capacitive touch, supports USB serial ports extension
  • Audio Interfaces:AC97/IIS/PCM, supports record and play
  • SD Slot:Two channels SDIO input
  • EMMC:Inland eMMC, no PIN
  • Ethernet:The gigabit Ethernet
  • USB HOST :Five channels USB HOST 2.0
  • USB OTG :Single channel USB OTG 2.0
  • UART :Five channels serial ports, and supports flow control ports
  • PWM :Double channels output
  • IIC :Five channels IIC output
  • SPI :Single channel SPI output
  • ADC :Single channel ADC output
  • Camera :Single channel BT656/BT601, single MIPI output
  • HDMI :HDMI2.0,HD A&V output, and audio output
Electrical Features
  • Input Voltage:4.2V-5V
  • Output Voltage:3.3V/5V
  • Storage Temp.:-20~80℃
  • Working Temp.:-20~70℃


G3288 SOM Appearance

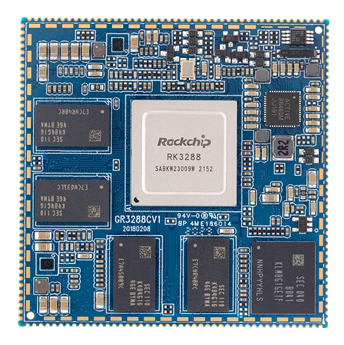

G3288 SOM Front
  • G3288 SOM Front

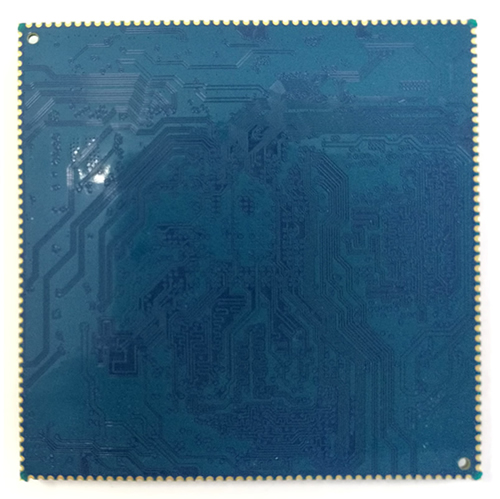

G3288 SOM Back
  • G3288 SOM Back

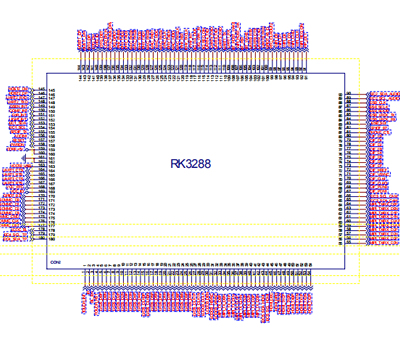

G3288 SOM Pin Definition:

Pin 01
Pin #
Signal Instructions
Instructions
1
TOUCH_INT
2
IR
3
BL_EN
4
TOUCH_RST
5
LVDS_D0P
6
LVDS_D0N
7
LVDS_D1P
8
LVDS_D1N
9
LVDS_D2P
10
LVDS_D2N
11
LVDS_D3P
12
LVDS_D3N
13
LVDS_D4P
14
LVDS_D4N
15
LVDS_CLK0P
16
LVDS_CLK0N
17
LVDS_D5P
18
LVDS_D5N
19
LVDS_D6P
20
LVDS_D6N
21
LVDS_D7P
22
LVDS_D7N
23
LVDS_D8P
24

LVDS_D8N

25
LVDS_D9P
26
LVDS_D9N
27
LVDS_CLK1P
28
LVDS_CLK1N
29
LCDC0_DCLK
30
LCDC0_DEN
31
LCDC0_HSYNC
32
LCDC0_VSYNC
33
MIPI_TX_D0P
34
MIPI_TX_D0N
35
MIPI_TX_D1P
36
MIPI_TX_D1N
37
MIPI_TX_CLKP
38
MIPI_TX_CLKN
39
MIPI_TX_D2P
40
MIPI_TX_D2N
41
MIPI_TX_D3P
42
MIPI_TX_D3N
43
I2C5_SDA_HDMI
44
I2C5_SCL_HDMI
45
HDMII_CEC
46
HDMI_HPD
47
HDMI_CN
48
HDMI_CP
49
HDMI_TX0N
50
HDMI_TX0P
51
HDMI_TX1N
52
HDMI_TX1P
53
HDMI_TX2NN
54
HDMI_TX2P
55
MIPI_TX/RX_D3N
56
MIPI_TX/RX_D3P
57
MIPI_TX/RX_D2N
58
MIPI_TX/RX_D2P
59
MIPI_TX/RX_CLKN
60
MIPI_TX/RX_CLKP
61
MIPI_TX/RX_D1N
62
MIPI_TX/RX_D1P
63
MIPI_TX/RX_D0N
64
MIPI_TX/RX_D0P
65
I2C3_SCL_CAM
66
I2C3_SDA_CAM
67
CIF_PDN1
68
CIF_PDN0
69
CIF_CLKO
70
CIF_CLKI
71
CIF_VSYNC
72
CIF_HREF
73
CIF_D7
74
CIF_D6
75
CIF_D5
76
CIF_D4
77
CIF_D3
78
CIF_D2
79
CIF_D1
80
CIF_D0
81
PHONE_CTL
82
SPK_CTL
83
I2S0_SDI
84
I2S0_LRCK_RX
85
I2S0_LRCK_TX
86
I2S0_SDO0
87
I2S0_SCLK
88
I2S0_CLK
89
I2C2_SDA_AUDIO
90
I2C2_SCL_AUDIO
Pin 02
Pin #
Signal Instructions
Instructions
91
HP_DET
92
WIFI_REG_ON
93
WIFI_CLK
94
WIFI_CMD
95
WIFI_D3
96
WIFI_D2
97
WIFI_D1
98
WIFI_D0
99
RTC_CLKOUT
100
GPIO7_A5_D
101
UART0_RXD
102
UART0_TXD
103
UART0_CTS
104
UART0_RTS
105
BT_WAKE
106
BT_RST
107
WIFI_HOST_WAKE
108
BT_HOST_WAKE
109
UART1_RX
110
UART1_TX
111
UART3_RXD
112
UART3_TXD
113
UART4_RXD
114
UART4_TXD
115
3G_REG_ON
116
3G_WAK_IN
117
3G_WAK_OUT
118
PHY_INT
119
PHY_TXCLK
120
PHY_RST
121
MAC_RXCLK
122
MAC_MDIO
123
PHY_TXEN
124
MAC_CLK
125
MAC_RXDV
126
MAC_MDC
127
MAC_RXD1
128
MAC_RXD0
129
PHY_TXD1
130
PHY_TXD0
131
MAC_RXD3
132
MAC_RXD2
133
PHY_TXD3
134
PHY_TXD2
135
PHY_PMEB
136
3G_GPIO1
137
OUT_VBUS_DRV
138
USB_INT
139
OTG_DET
140
OTG_ID
141
OTG_DM
142
OTG_DP
143
HOST1_DM
144
HOST1_DP
145
HOST2_DM
146
HOST2_DP
147
UART2_RXD
148
UART2_TXD
149
GSEN_INT
150
COMP_INT
151
GRY_INT
152
LIGHT_INT
153
I2C1_SDA_SENSOR
154
I2C1_SCL_SENSOR
155
SPDIF
156
ADCIN1
157
RESET
158
PMIC_ON
159
VCC+5
160
VCC+5
161
GND
162
GND
163
USB5V
164
UART1_CTS
165
UART1_RTS
166
UART3_CTS
167
UART3_RTS
168
VCC_RTC
169
VCC_IO
170
SDMMC_PWR
171
SDMMC_D0
172
SDMMC_D1
173
SDMMC_D2
174
SDMMC_D3
175
SDMMC_CMD
176
SDMMC_CLK
177
SDMMC_DET
178
LCDC_BL
179
I2C4_SCL_TP
180
I2C4_SDA_TP


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
