Home  /  ARM Embedded Products  >  SBC Single Board Computer  >  Gbox3128 SBC Single Board Computer



  • arm quad core single board computer
  • RK3128
  • Single Board Computer
  • CPU:RK3128 (ARM Cortex-A7)
  • 1080P video encoder, supports H.264
  • Android, Linux+qt, Ubuntu OS
  • CPU
    1.3GHz*4
  • DDR3
    1G
  • EMMC
    8G
  • single board computer quad core

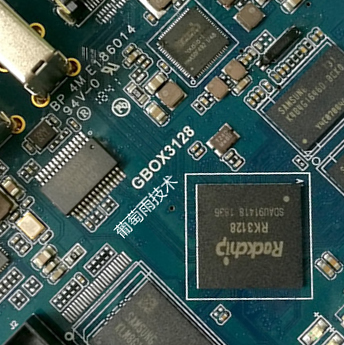

  • Powerful graphic video processing

  • Integrating with ARM Mali-400 MP2 dual core GPU, it supports OpenGL ES1.1/2.0, embedded with 2D accelerate hardware. It supports 1080P multi-media decoder, including 1080P H.265 hardware decoder, 1080P encoder, H.264.


    Gbox3128 SBC uses 512MB/1GB/2GB/DDR3, 4GB/8GB/16GB/32GB eMMC, independent power management system, RK818 PMU.

  • supporting OS
  • Rich software sources, multi OS supporting

  • Gbox3128 single board computer uses independent power management system RK818, Ethernet, variable interfaces.

    It supports Android 5.1, Android 6.0, Linux+QT and Ubuntu.


  • quad core single board computer Varieties interfaces
  • Varieties interfaces, complete functions

  • Interfaces: Ethernet, LVDS, MIPI, RGB, HDMI, DVP camera etc.


    It supports software power on/off, sleep wake up functions etc.

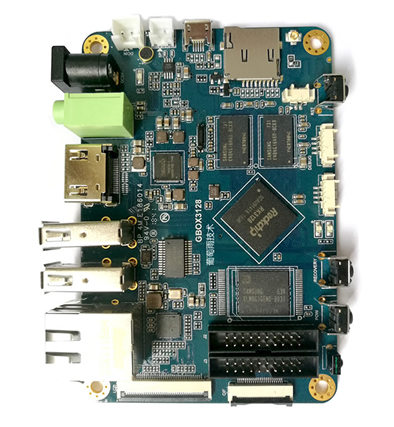

Product Introduction

Gbox3128 SBC is based on Rockchip RK3128, quad core A7 processor. The frequency can be up to 1.3GHz. Integrating with ARM Mali-400 MP2 dual core GPU, it supports OpenGL ES1.1/2.0, embedded with 2D accelerate hardware. It supports 1080P multi-media decoder, including 1080P H.265 hardware decoder, 1080P encoder, H.264.



Gbox3128 SBC uses 512MB/1GB/2GB/DDR3, 4GB/8GB/16GB/32GB eMMC, independent power management system, RK818 PMU, Ethernet, variable interfaces. It supports Android 5.1, Android 6.0, Linux+QT and Ubuntu.



Gbox3128 SBC size is only 100mm*68mm, portable and stable. It can be applied in many areas, such as industrial, communications, medical, advertising machine etc.



Gbox3128 size:100.66mm * 68.8mm

Checking RK3128 System On Module Instruction>>

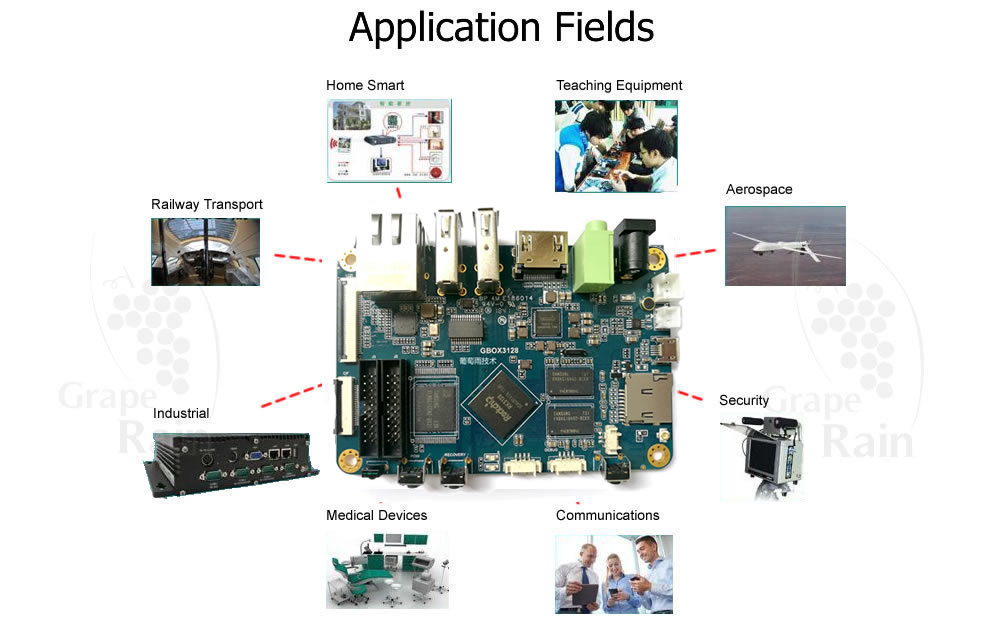

single board computer quad core Application field


Functions and features

Functions and features
  • CPU: ARM Cortex-A7;
  • Frequency: 1.3GHz*4;
  • RAM: 1GB DDR3, can be custom to 2GB
  • EMMC: Default 8GB, optional 4G/8G/32GB
  • RK818, support dynamic frequency modulation
  • ARM Mali-400 MP2 dual core GPU, it supports OpenGL ES1.1/2.0, embedded with 2D accelerate hardware. It supports 1080P multi-media decoder, including 1080P H.265 hardware decoder, 1080P encoder, H.264.
  • Input voltage 5V, peak current 2A
Electrical characteristics
  • Input Voltage: 5V/2A;
  • Output Voltage: 5V, 3.3V;
  • Storage temperature: -30~80 degree
  • Working temperature: -20~70 degree


SBC size


quad core single board computer size

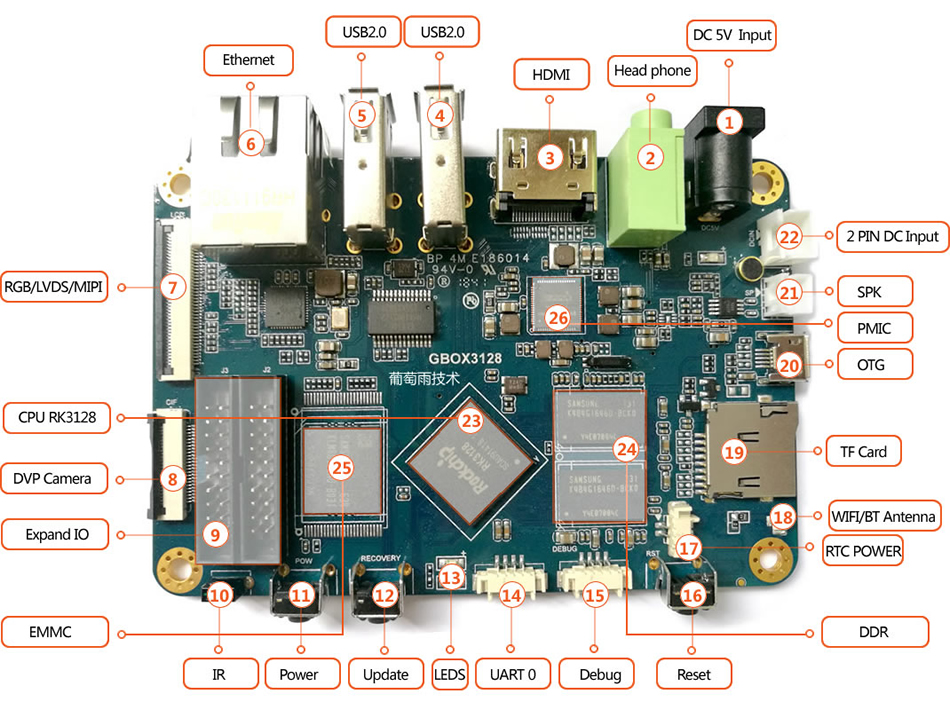

SBC interfaces1


arm quad core single board computer  interfaces1

Parameters

Hardware interfaces
  • 【1】DC 5V Input:5V Power input
  • 【2】Head phone:Earphone output
  • 【3】HDMI:HDMI output, TypeA
  • 【4】USB2.0:USB2.0 host
  • 【5】USB2.0:USB2.0 host
  • 【6】Ethernet:Gigabit ethernet, RJ45
  • 【7】RGB/LVDS/MIPI:RGB/LVDS/MIPI
  • 【8】DVP Camera:Parallel camera
  • 【9】Expand IO:Extension IO
  • 【10】IR:IR receive
  • 【11】Power:Power key
  • 【12】Update:Update key
  • 【13】LEDS:Controllable LED
  • 【14】UART 0:UART 0
  • 【15】Debug:Debug serial
  • 【16】Reset:Reset key
  • 【17】RTC POWER:RTC power

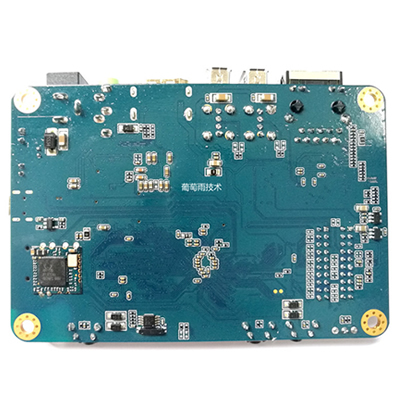

  • 【18】WIFI/BT Antenna:WIFI/BT antenna(onboard antenna on backside of the board)
  • 【19】TF Card:TF card slot
  • 【20】OTG:OTG
  • 【21】SPK:Speaker
  • 【22】2 PIN DC Input:2 PIN DC 5V input
  • 【23】CPU RK3128:CPU RK3128
  • 【24】DDR:DDR
  • 【25】EMMC:EMMC
  • 【26】PMIC:PMIC

Packing list

Standard accessories:
  • Gbox3128 SBC
  • 5V/2A power adapter
  • TTL to RS232 converter board
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)




Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
