  • G8953
  • Development Board
  • CPU:MSM8953 (ARM Cortex-A53)
  • 4GB +64gb memory, wifi, 98mm*94mm
  • Onboard Bluetooth, wifi, 4G, and GPS.
  • CPU
    1.8GHz*8
  • DDR3
    2G
  • EMMC
    16G

King of octa Core

2GB DDR3 as standard, and 2GB/3GB/4GB optional

  • A53 octa Core CPU

    2.0Ghz octa Core




  • 4GB RAM, 64GB Emmc

    DDR3 dual channels




  • 4G LTE Internet Speed

    2G/3G/4G



  • Android 10 Operating System

    Stable OS, cooperating 4G function







G8953 Development Board Specification:

  • A53 eight core, Android 10 OS
  • 4G LTE high-speed surf the Ethernet, all band in China 2G/3G/4G
  • 4GB+128GB memory, SD3.0 max 128GB
  • Wifi dual channels, bluetooth, GPS
  • Peripheral eDP, LVDS, MIPI screen
  • 1* USB3.0 standard Type A interface
  • 5* USB2.0 PH2.0 interface
  • 1* Ethernet, 2*RS232 serial port
  • 2*RS232/RS485 configurable serial port ( Change hardware to come out )
  • Support standard peripheral device





Techonlogy Specification:

Parameters
  • Structure Parameters: Outlook: Stamp hole
  • Size: 42mm x 54mm x 2.8mm
  • Craft: 8-layer gold immersion PCB
System Configuration
  • System Configurations: CPU: MSM8953, cortex –a53 octa core, 2.0 Ghz
  • Ram: 2GB DDR3 as standard, and 2GB/3GB/4GB optional
  • EMMC: 16GB/32GB/64GB optional, and 16GB as standard.

Interface Features
  • Apperance: PCBA
  • Size: 98mm*94mm
  • CPU:
  • Standard version: Qualcomm’s® SDM450:ARM® Cortex™-A53, 1.8GHz 64bit, eight-core
  • HF version: max MSM8953，2.2GHz 64bit, eight-core
  • Memory:
  • Standard version: 2GB LPDDR3, up to 933MHz 16GB eMMC
  • HF version: 3GB LPDDR3+32GB eMMC, max 4GB LPDDR3+ 64GB eMMC
  • External memory: TF card max 128GB
  • RF bands:
  • GSM 900/1800/1900/850 WCDMA：B1/B2/B5/B8 TD-SCDMA：B34/B39 CDMA 1X/EVDO：BC0 FDD-LTE：B1/B3/B5/B7 TD-LTE：B38/B39/B40/B41N
  • WLAN：802.11 b/g/n/ac 2.4G/5G double channels
  • Bluetooth：BT 4.x
  • GPS,BD,GNSS：GPS BEIDOU—BD2 Glonass
  • Display interface: max FHD+(2160*1080P) double-screen: two eDP screen, 1* LVDS screen+1*eDP screen, two MIPI screen
  • Camera interface: 2* MIPI CAM interface
  • Graph parameters: SDM450: Adreno 506; up to a 600 MHz 3D graphics accelerator MSM8953:Adreno 506; up to 650 MHz 3D graphics accelerator
  • More information, please contact with customer service

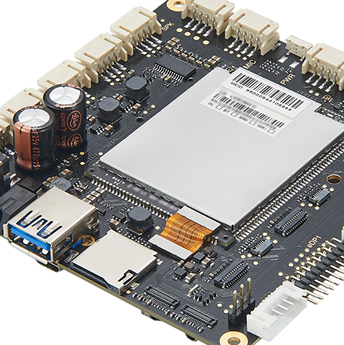

G8953 Development Board

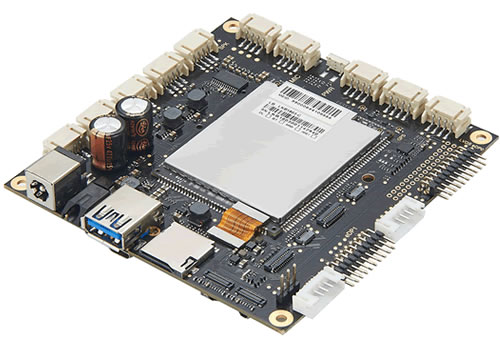

Front of G8953 Development Board

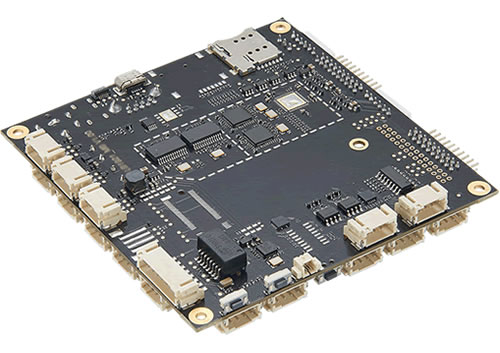

Back of Development Board


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
