  • G8909
  • System on Module
  • CPU:MSM8909 (ARM Cortex-A7)
  • Has been shipped in large quantities, is absolutely stable and reliable
  • Onboard Bluetooth, wifi, 4G, and GPS.
  • CPU
    1.1GHz*4
  • DDR3
    1G
  • EMMC
    8G

King of octa Core

1GB DDR3 as standard, and 2GB optional

  • A7 Quad Core CPU

    1.1Ghz octa Core




  • 2GB RAM, 32GB Emmc

    DDR3 dual channels




  • 4G LTE Internet Speed

    2G/3G/4G



  • Android 5.1 Operating System

    Stable OS, cooperating 4G function




Product instruction

G8909 system on module have integrated communication device, CPU, storage and GPS, connecting with matching base board through PINs.






G8909 System on Module Features:

  • Smallest size
  • Support 4g LTE internet speed, compatibility 2G/3G/4G
  • Be of 21 interfaces, which meets clients rich interface configuration
  • It is the first system on module of Qualcomm Snapdragon
  • Single-sided cloth plate designed, which lower the thickness of the board
  • Stable and reliable features
  • Reduce the development difficulty
  • Enhancing maintainability
  • Enhanced maintainability. Through the change of core board can realize the upgrading of products, to avoid re opening, to extend the product life cycle;





G8909 System on Module Parameters:

Parameters
  • Structure Parameters: Outlook: Stamp hole
  • Size: 40*56*2.8mm
  • Craft: 8-layer gold immersion PCB
System Configuration
  • System Configurations: CPU: MSM8909, cortex –a7 Quad core, 1.1 Ghz
  • Ram: 1GB DDR3 as standard, and 2GB optional
  • EMMC: 8GB/16GB/32GB optional, and 8GB as standard.

Interface Features
  • Outlook: PCBA
  • Dimension:40*56*2.8mm
  • Hardware Platform:MSM8909 Quad-Core 1.1Ghz
  • Memory:8GB ( EMMC ) + 1GB ( DDR3 ) as standard, 1GB&16GB, 2GB&16GB, 2GB&32GB are compatible
  • Display :Resolution: HVGA(320*480, WVGA(480*800), FWVGA(480*854)
    qHD(540*960, max HD(1280*720),
    default mipi, supports RGB interface on carrier board by adding chip
    Touch:Capacitive supported and Resistive supported through IIC
  • camera:max 800W AF MIPI support falshlight
  • BT:support, EDR2.1, BLE4.0
  • GPS:support, BEIDOU not support single
  • WIFI:support, 802.11b/g/n, 802.11a/b/g/n, 802.11ac, support WIFI client and WIFI hotspot
  • FM:support, only support receiving, no sending
  • Sensors:IIC Expansion support, Gravity /Distance/Light Sensation /Geomagnetism /Gyroscope
  • Interface Expansion:Sim card*2/MicroSD card*1/IIC*4/uart*2/USB(OTG)*1/3.5mm earphone*1/GPIO *20/ADC*2/PWM*1
  • Keys:4 keys,IIC expend keyboard IC, support full keyboard
  • Speaker:support / external speaker
  • Handset:support
  • Mic:support dual-MIC
  • Motor:support
  • Button cell:extension support
  • Breathing light:IIC Extend
  • RFID:IIC Extend
  • NFC:IIC Extend
  • IO:>10
  • Low power status : < 15mA
  • USB extended HUB:SW supported, only USB HUB driver, not including connecting devices with HUB
  • Charge:max 1.5A


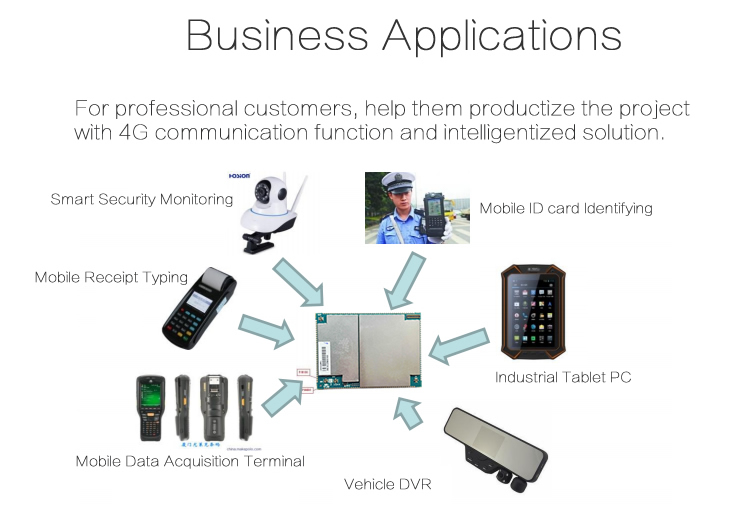

G8909 System on Module

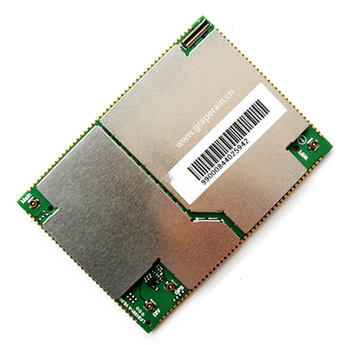

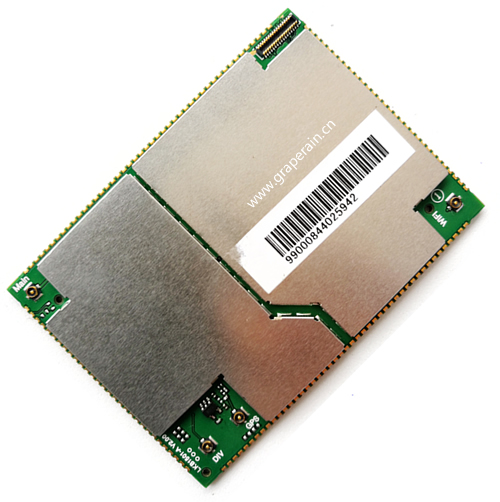

Front of G8909 system on module

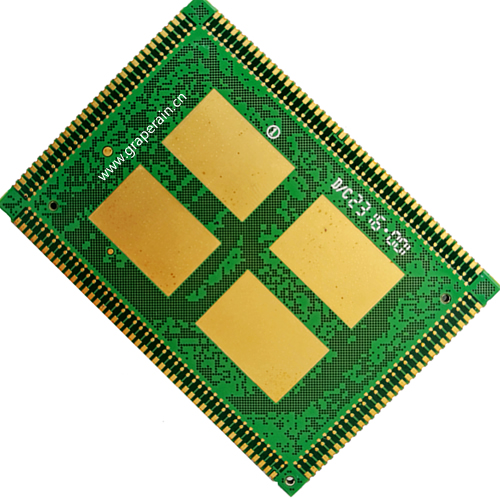

Back of G8909 system on module


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
