Shenzhen Graperain Technology Co., Ltd.
ARM Development Boards and Modules with ARM9, ARM11, Cortex-A8, Cortex-A9
- Qualcomm MSM8937 System on Module
- Qualcomm MSM8937 SOM, support 4G call. SOM onboard bluetooth, wifi, 4G, Beidou GPS, no need for peripherals module, and max LCD resolution 1920*1080.supports FDD-LTE/TD-LTE/TD-SCDMA/WCDMA/EVDO/CDMA/EDGE/ GSM communication bands.
- Customized solution with G8937 system on module for reference.
I want to customize service.>> - Viewed：8386
- More Information
- G8937
- System on Module
- CPU:MSM8937 (ARM Cortex-A53)
- Has been shipped in large quantities, is absolutely stable and reliable
- Onboard Bluetooth, wifi, 4G, and GPS.
- CPU1.4GHz*8
- DDR32G
- EMMC16G
Product instruction
G8937 system on module have integrated communication device, CPU, storage and GPS, connecting with matching base board through PINs.
G8937 System on Module Features:
- Smallest size
- Support 4g LTE internet speed, compatibility 2G/3G/4G
- Be of 21 interfaces, which meets clients rich interface configuration
- It is the first system on module of Qualcomm Snapdragon
- Single-sided cloth plate designed, which lower the thickness of the board
- Stable and reliable features
- Reduce the development difficulty
- Enhancing maintainability
- Enhanced maintainability. Through the change of core board can realize the upgrading of products, to avoid re opening, to extend the product life cycle;
G8937 System on Module Parameters:
Parameters
- Structure Parameters: Outlook: Stamp hole
- Size: 36mm x 60mm
- Craft: 8-layer gold immersion PCB
System Configuration
- System Configurations: CPU: MSM8937, cortex –a53 octa core, 1.4 Ghz
- Ram: 2GB DDR3 as standard, and 2GB optional
- EMMC: 8GB/16GB/32GB optional, and 16GB as standard.
Interface Features
- Outlook: PCBA
- Dimension:36mm x 60mm
- Hardware Platform：MSM8937 octa-Core 1.4Ghz
- Memory：16GB ( EMMC ) + 2GB ( DDR3 ) as standard, 1GB&16GB, 2GB&16GB, 2GB&32GB
- are compatible
- Display ：Resolution: HVGA（320*480, WVGA（480*800, FWVGA（480*854）qHD（540*960,
- HD（1280*720, max FHD（1920*1080）default mipi, supports RGB interface on carrier board by adding
- chip Touch：Capacitive supported and Resistive supported through IIC
- camera：max 21M AF MIPI support falshlight
- BT：support, EDR2.1, BLE4.1
- GPS：support, BEIDOU not support single
- WIFI：support, 802.11b/g/n, 802.11a/b/g/n, 802.11ac, support WIFI client and WIFI hotspot
- FM：support, only support receiving, no sending
- Sensors：IIC Expansion support, Gravity /Distance/Light Sensation /Geomagnetism /Gyroscope
- Interface Expansion：Sim card*1/MicroSD card*1/IIC*4/uart*2/USB(OTG)*1/3.5mm earphone*1/GPIO *20/ADC*2/PW
- Keys：4 keys,IIC expend keyboard IC, support full keyboard
- Speaker：support / external speaker
- Handset：support
- Mic：support dual-MIC
- Motor：support
- Button cell：extension support
- Breathing light：IIC Extend
- RFID：IIC Extend
- NFC：IIC Extend
- IO：>10
- Low power status ： < 10mA
- USB extended HUB：SW supported, only USB HUB driver, not including connecting devices with HUB
- Charge：max 1.5A
G8937 System on Module
Front of G8937 system on module

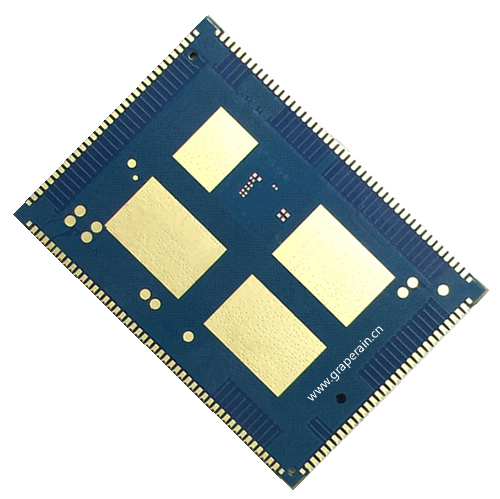

Back of G8937 system on module
Pay particular attention
Commitment
- For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
MSM8937 products
-
CPU：MSM8953 ARM Cortex-A53；
Frequency：2.0GHz*8
RAM：1GB DDR3/2GB DDR3 optional
Flash：8GB/16GB/32GB emmc optional -
CPU：MSM8953 ARM Cortex-A53；
Frequency：2.0GHz*8
RAM：1GB DDR3/2GB DDR3 optional
Flash：8GB/16GB/32GB emmc optional -
CPU：MSM8909ARM Cortex-A7；
Frequency：1.1GHz*4
RAM：1GB DDR3/2GB DDR3 optional
Flash：8GB/16GB/32GB emmc optional -
CPU：MSM8937 ARM Cortex-A53；
Frequency：1.4GHz*8
RAM：1GB DDR3/2GB DDR3 optional
Flash：8GB/16GB/32GB emmc optional
