  • RK3568
  • RK3568
  • MINI PC
  • CPU:RK3568 (ARM Cortex-A55)
  • Inbuilt Mali-G52 GPU, 1T NPU, low consumption
  • The system on module uses 8-layer process design, ensure reliability and stability
  • CPU
    2.0GHz*4
  • LPDDR4
    2G
  • EMMC
    16G







 The most cost-effective quad core

●Super Cortex-A55  ●max to 2.0GHz  ●stable  ●long supply



应用领域




RK3568 MINI PC features

The product features
  • Size: 130mm*90mm
  • RK809 PMD
  • Support kinds of brand eMMC, 16GB eMMC as default
  • LPDDR4, 2GB RAM as default, max 8GB
  • Support power sleep/wake up
  • Support Android11, Linux, Ubuntu, and Debian OS
  • Support gigabit Ethernet

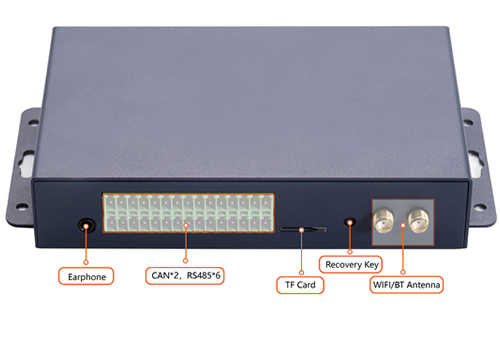

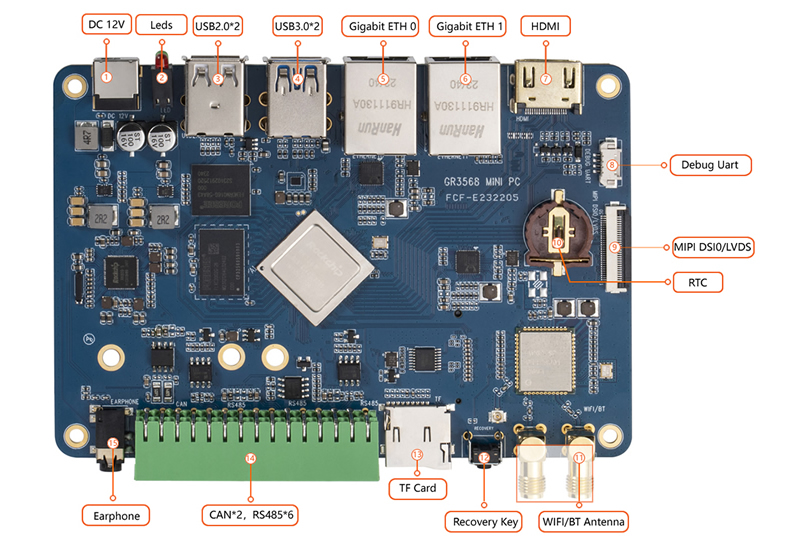

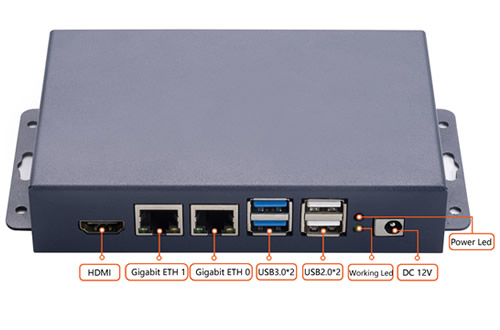

MINI PC interfaces


MINI PC interfaces 1
MINI PC interfaces 1
MINI PC interfaces 1
MINI PC interfaces 1

Parameters

Parameters
  • Appearance: Single board computer
  • Size: 130mm*90mm
  • Technology: 8-layer immersion gold technology design
System on Module parameters
  • CPU: RK3568, Cortex-A55 quad-core 2.0GHz
  • RAM: LPDD2, 2GB as standard, 4GB as customize
  • EMMC: 8GB/16GB/32GB eMMC optional, 16GB as standard version
  • Power IC: RK809
  • GPU: Integrated ARM G52 2EE GPU, support OpenGL ES1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1, Inbuilt 2D hardware accelaration, support 4K 60fps H.265/H.264/VP9 video decode and 1080P 100fps H.265/H.264 video encode, such as 8M ISP, HDR, 0.8T NPU.
Interfaces parameters
  • Power supply: Type-C, 5V-12V voltage input
  • Ethernet: Integrated dual channels GMAC Ethernet control machine, come out 1000Mbps Ethernet ( RJ45)
  • Wifi: Wifi + Bluetooth two-in-one module: Support Wifi 6, Support 2.4GHz / 5GHz dual channels Wifi, 802.11a/b/g/n/ac. And support Bluetooth 5.3
  • Display: 1 x HDMI2.0, max 4K@60Hz 1 x MIPI DSI, max 1920x1080@60fps.
  • Audio: 1 x Phone output ( w/MIC record ), support dual channels 1x HDMI audio output
  • Camera: 1 x MIPI-CSI ( single channel 4LAN or dual channels 2LAN ), max 8mp camera
  • USB: 2 x USB2.0, 2 x USB3.0

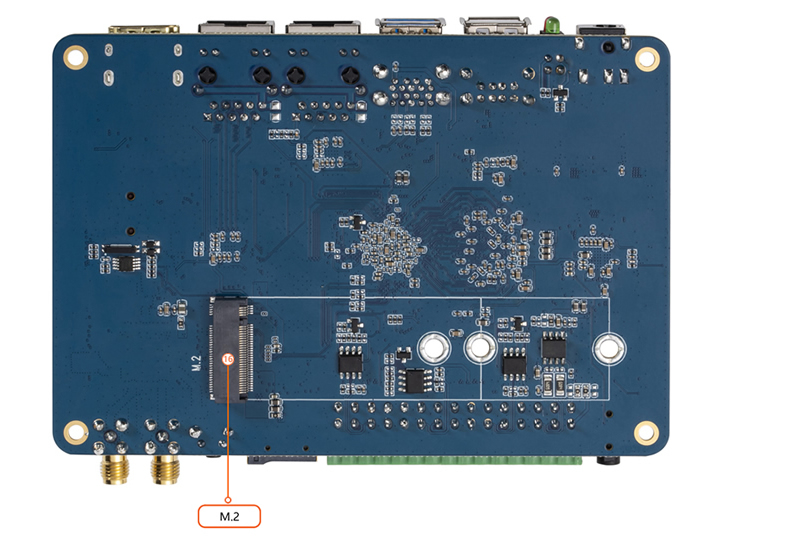

  • M.2: M.2 2242, 2280 version SSD
  • TF card: 1 x TF card, max 128GB TF
  • Other interfaces: 6 x UART/RS485 1 x Debug uart 2 x CAN 1 x RTC
Electrical characteristics
  • Working temperature: -20℃- 80℃
  • Stroge temperature: -30℃- 80℃
  • Stroge humidity: 10%～80 %
Others
  • OS: Android11, Linux, Ubuntu, and Debian OS
  • Service: G3568 system on module, hardware design, software develop and OEM/ODM
Applied area
  • Handheld devices, electricity, communications, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc

Packing list

Standard accessories:
  • RK3568 MINI PC
  • 5V/3A power adapter
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)


Download Center

Download Center


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
