  • RK3568
  • RK3568
  • Development Board
  • CPU:RK3568 (ARM Cortex-A55)
  • Onboard MIPI-CSI, dual MIPI-DSI, EDP, HDMI, PCIe, SATA, CAN,
    USB3.0, USB2.0
  • The system on module uses 8-layer process design, ensure reliability and stability
  • CPU
    2.0GHz*4
  • LPDDR4
    2G
  • EMMC
    8G







 The most cost-effective quad core

●Super Cortex-A55  ●max to 2.0GHz  ●stable  ●long supply

Brief Introduction

G3568 development board is based on Rockchip RK3568(64bit quad core) platform, which is designed by Shenzhen Graperain Technology Co., Ltd. RK3568 is 22nm Cortex-A55, frequency up to 2.0GHz. Cortex-A55 provides up to 100% performance improvement compared to the previous A15/A17 core design.



RK3568 is integrated with ARM G52 2EE graphics processor.



Support OpenGL ES1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware.



Support 4K 60fps H.265/H.264/VP9 video decoding, 1080P 100fps H.265/H.264 video encoding.



Support 8M ISP, support HDR, NPU support 0.8T computing power.



Such powerful GPU and NPU can be applied to many applications, such as computer vision, machine learning, 4K 3D rendering, etc.



Other interfaces: MIPI-CSI, dual MIPI-DSI, EDP, HDMI, PCIe, SATA, CAN, USB3.0, USB2.0, OTG and others.



In addition to the powerful RK3568, G3568 development board is also equipped with 2GB/4GB LPDDR4, 8GB/16GB/32GB eMMC, independent power management system, powerful network expansion capability, rich display interfaces. It supports Android11, Linux, Debian.



G3568 development board consists of stamp hole system on module and carrier board. 8-layer PCB designed system on module has 208 pins, can run up to 2.0GHz frequency.



G3568 development board has rich function expansion interfaces, which can effectively improve the scalability of industry customization. G3568 supports PCIe3.0 1x2/2x1 Lane and PCIE2.1 1x1 Lane at the same time, meeting the expansion requirements of 4G/5G, wifi6, multiple network ports, NPU, etc. RK3568 supports 3x SATA3.0, solves various USB expanding to SATA instability problems of traditional AP processor. RK3568 supports up to 4 USB ports, 1xUSB3.0/USB2.0 HOST + 1xUSB3.0/USB2.0 OTG + 1xUSB2.0 HOST + 1xUSB2.0 HOST. RK3568 also supports dual Gigabit Ethernet ports to meet the multi-network port requirements of industrial control and IoT gateways.



RK3568 SOM size:55.8 mm* 55.8mm    RK3568 carrier board size:180mm * 110.5 mm    Check RK3568 SOM features>>





应用领域




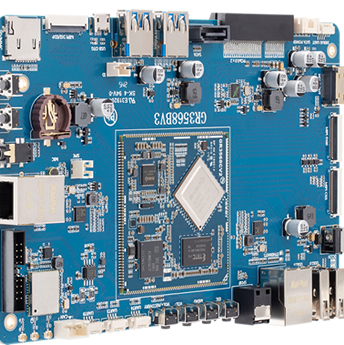

RK3568 development board features

The product features
  • Size: 180mm*110.5mm, can be used in final product.
  • Powerful functions, rich interfaces, wide applications.
  • Supports Android11, Linux, Ubuntu, Debian. Source code open, accelerate develop time.
  • Stable and reliable board.

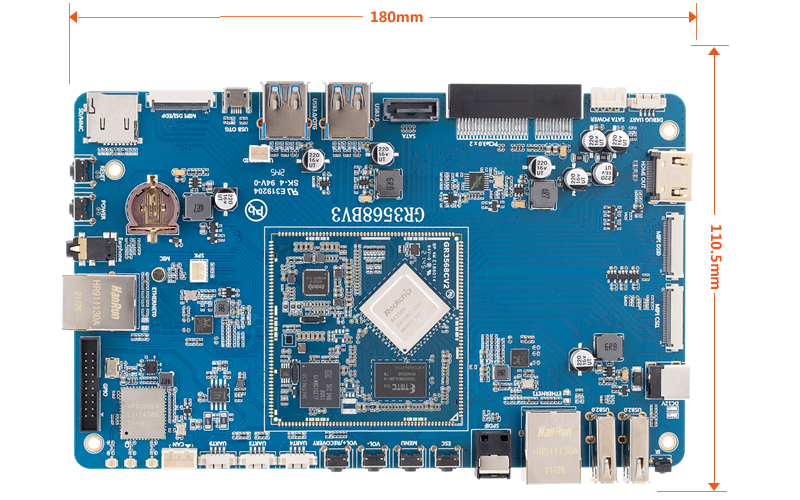

Development board size


Development board size


Development board interfaces 1


Development board interfaces 1

Parameters

Parameters
  • Appearance: Stamp hole SOM + carrier board
  • Size: 180mm*110.5mm
  • Layer: SOM 8-layer/carrier board 4-layer
System on Module parameters
  • CPU: Rockchip RK3568
  • Frequency: Cortex A55 quad core 2.0GHz
  • RAM: Standard 2GB, 4GB/8GB Optional
  • eMMC: standard 8GB, 8GB/16GB/32GB eMMC optional
  • Power IC: RK809
  • Graphic and video processor : ARM Mali- G52 2EE GPU OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 4K VP9, 4K 10bits H265/H.264 video decoding, up to 60 fps 1080P multi-format video decoding 1080Pvideo decoding, H.264,VP8 form
Interfaces parameters
  • Display: MIPI, eDP output
  • Ethernet: RTL8211E Gigabit Ethernet PHY
  • Audio: IIS/PCM, support record and play
  • SD: 2 channel SDIO output
  • eMMC: Onboard eMMC
  • Ethernet: 2 x Gigabit Ethernet
  • USB HOST: 2 channel HOST2.0,1 channel HOST3.0
  • USB3.0 OTG: 1 channel
  • UART: 10 channel,Support serial port with flow control
  • PWM: 12 channel PWM output
  • IIC: 6 channel IIC output
  • SPI: 3 channel SPI output
  • ADC: 5 channel ADC
  • Camera: 1 channel MIPI input
  • HDMI: High-definition audio and video output, audio and video synchronous output
  • MIPI: 1 channel MIPI RX, 2 channel MIPI TX
  • eDP: Support
  • PCIE: Support PCIe3.0 1x2/2x1 Lane, PCIe2.1 x1
  • SATA: Support 3 channel SATA3.0
  • CAN: Support 3 channel CAN
Electrical characteristics
  • Input Voltage: 12V
  • Output Voltage: 12V/5V/3.3V
  • Storage temperature: -30~80 degree
  • Working temperature: -20~70 degree

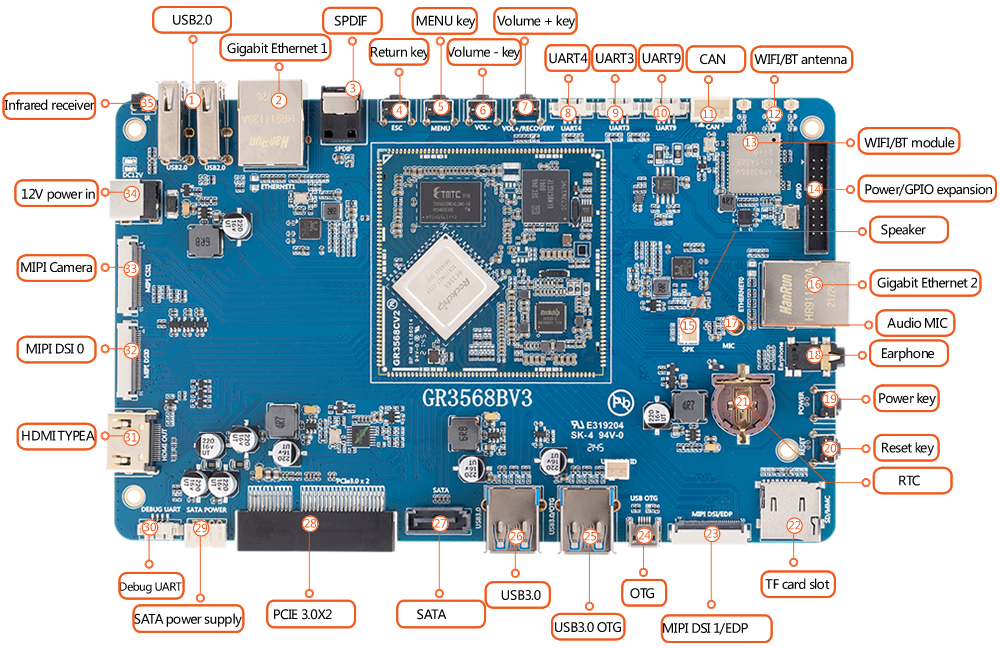

Hardware interface
  • 【1】 USB2.0:USB2.0 host
  • 【2】 Gigabit Ethernet 1:RJ45
  • 【3】 SPDIF:SPDIF
  • 【4】 Return key:Return key
  • 【5】 MENU key:MENU key
  • 【6】 Volume - key:Volume - key
  • 【7】 Volume + key:Volume + key
  • 【8】 UART4:UART4
  • 【9】 UART3:UART3
  • 【10】 UART9:UART9
  • 【11】 CAN:CAN
  • 【12】 WIFI/BT antenna:WIFI,BT antenna
  • 【13】 WIFI/BT module:WIFI,BT module
  • 【14】 Power/Gpio expansion:POWER,GPIO
  • 【15】 Speaker:Speaker
  • 【16】 Gigabit Ethernet 2:RJ45
  • 【17】 Audio MIC:Microphone input
  • 【18】 Earphone:Earphone output
  • 【19】 Power key:Sleep/awake key
  • 【20】 Reset key:Reset key
  • 【21】 RTC:RTC
  • 【22】 TF card slot:TF card slot
  • 【23】 MIPI DSI1/EDP:MIPI DSI 1, EDP LCD display
  • 【24】 OTG:USB OTG
  • 【25】 USB3.0 OTG:USB3.0 OTG, share data with OTG
  • 【26】 USB3.0:USB3.0 HOST
  • 【27】 SATA:SATA hard disk
  • 【28】 PCIE 3.0x2:PCIE 3.0x2
  • 【29】 SATA power supply:SATA power supply interface
  • 【30】 Debug port:Debug port
  • 【31】 HDMI TYPEA:HDMI TYPEA output
  • 【32】 MIPI DSI 0:MIPI LCD display
  • 【33】 MIPI camera:MIPI camera
  • 【34】 12V power connector:12V power supply interface
  • 【35】 Infrared receiver:Infrared receiver
Others
  • OS: Android11, Linux and Debian.
  • Custom service: RK3568 SOM, custom hardware + software + OEM/ODM
Applied area
  • high-definition display with advertising machine, vending machines, teaching terminals, automatic identification, robotics, security monitoring, financial POS, vehicle control terminals, VR, etc.. With the development board to test, it will accelerate product develop time.

Packing list

Standard accessories:
  • RK3568 stamp hole development board
  • 12V/2A power adapter
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.

RK3568 products





Follow us
