  • RK3568
  • RK3568
  • Single Board Computer
  • CPU:RK3568 (ARM Cortex-A55)
  • Inbuilt Mali-G52 GPU, 1T NPU, low consumption
  • The system on module uses 8-layer process design, ensure reliability and stability
  • CPU
    2.0GHz*4
  • LPDDR4
    2G
  • EMMC
    16G







 The most cost-effective quad core

●Super Cortex-A55  ●max to 2.0GHz  ●stable  ●long supply



应用领域




RK3568 Single Board Computer features

The product features
  • Size: 85mm x 56mm
  • RK809 PMD
  • Support kinds of brand eMMC, 16GB eMMC as default
  • LPDDR4, 2GB RAM as default, max 8GB
  • Support power sleep/wake up
  • Support Android11, Linux, Ubuntu, and Debian OS
  • Support gigabit Ethernet

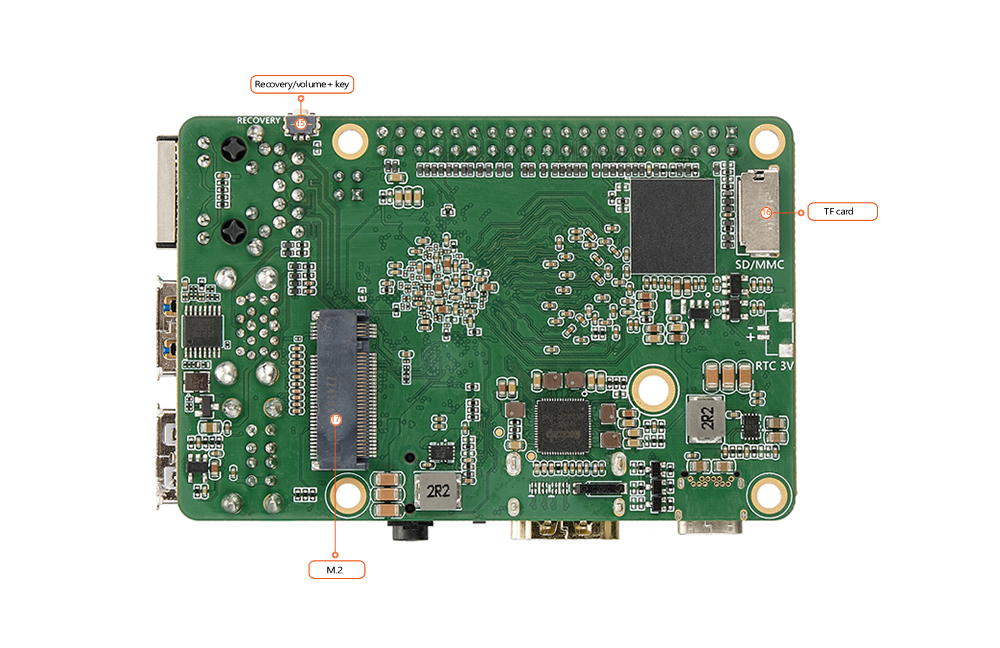

Single Board Computer interfaces


Single Board Computer interfaces 1
Single Board Computer interfaces 1

Parameters

Parameters
  • Appearance: Single board computer
  • Size: 85mm x 56mm
  • Technology: 8-layer immersion gold technology design
System on Module parameters
  • CPU: RK3568, Cortex-A55 quad-core 2.0GHz
  • RAM: LPDD2, 2GB as standard, 4GB as customize
  • EMMC: 8GB/16GB/32GB eMMC optional, 16GB as standard version
  • Power IC: RK809
  • GPU: Integrated ARM G52 2EE GPU, support OpenGL ES1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1, Inbuilt 2D hardware accelaration, support 4K 60fps H.265/H.264/VP9 video decode and 1080P 100fps H.265/H.264 video encode, such as 8M ISP, HDR, 0.8T NPU.
Interfaces parameters
  • Power supply: Type-C, 5V-12V voltage input
  • Ethernet: Integrated GMAC Ethernet control manchine, 1000Mbps Ethernet ( RJ45 )
  • Wifi: 2.4GHz / 5GHz dual channels Wifi, 802.11a/b/g/n/ac. It could be extend Wifi+ blue two-in-one module by SDIO interface. And Bluetooth 5.0
  • Display: 1 x HDMI2.0, max 4K@60Hz 1 x MIPI DSI, as 1920x1080@60fps.
  • Audio: 1 x Phone output ( No MIC record ), support dual channels output, 1x HDMI audio output
  • Camera: 1 x MIPI-CSI ( single channel 4LAN or dual channels 2LAN ), max 8mp camera
  • USB: 2 x USB2.0, 2 x USB3.0
  • M.2: M.2 2242 version SSD
  • TF card: 1 x TF card, max 128GB TF
  • Other interface: 3 x UART,1 x Debug UART, 2 x ADC, 2 x I2C, 2 x SPI, 12 x PWM, 1 x RTC, reserved 2 PIN power supply interface
Electrical characteristics
  • Working temperature: -20℃- 80℃
  • Stroge temperature: -30℃- 80℃
  • Stroge humidity: 10%～80 %
Others
  • OS: Android11, Linux, Ubuntu, and Debian OS
  • Service: G3568 system on module, hardware design, software develop and OEM/ODM

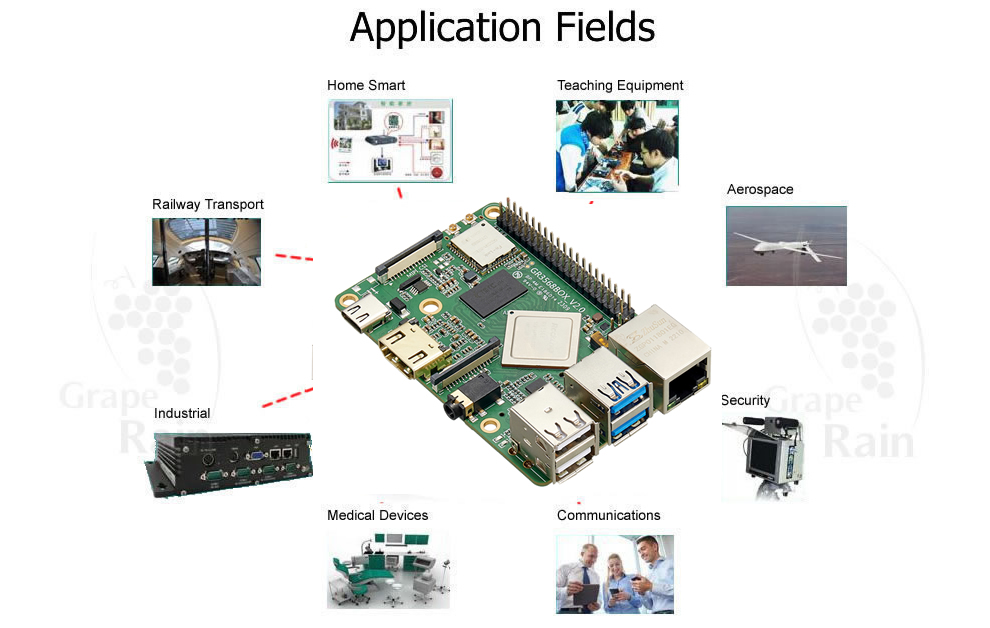

Applied area
  • Handheld devices, electricity, communications, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc

Packing list

Standard accessories:
  • RK3568 Single Board Computer
  • 5V/3A power adapter
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)


Download Center

Download Center


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
