RK3568 System on Module (shorts for RK3568 SOM) Introduction:

G3568 system on module is based on Rockchip RK3568 (64bit quad core) platform, which is designed by Shenzhen Graperain Technology Co., Ltd.



G3568 system on module take Rockchip RK3568 chip, 64bits quad core CPU, frequency up to 2.0GHz. Cortex-A55 provides up to 100% performance improvement compared to the previous A15/A17 core design.



This RK3568 chip is integrated with ARM G52 2EE graphics processor. Support OpenGL ES1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1, embedded high-performance 2D acceleration hardware. More support 4K 60fps H.265/H.264/VP9 video decode, and 1080P 100fps H.265/H.264 video code, and 8M ISP and HDR, NPU 0.8T computing power. Such powerful GPU and NPU can be applied to many applications, such as computer vision, machine learning, 4K 3D rendering, etc.



And more interfaces, such as MIPI-CSI interface and dual MIPI-DSI, EDP, HDMI, PCIe, SATA, CAN, USB3.0, USB2.0, OTG .



G3568 system on module is equipped with 2GB/4GB LPDDR4，8GB/16GB/32GB eMMC, independent power management system, powerful network expansion capability, rich display interfaces. It supports Android11, Linux, Debian.



G3568 development board is consist with G3568 system on module and carrier board, its pin more than 208, running speed more than 2.0Hz.



G3568 development board has rich function expansion interfaces, which can effectively improve the scalability of industry customization. Such as PCIe3.0 1x2/2x1 Lane and PCIE2.1 1x1 Lane at the same time, meeting the expansion requirements of 4G/5G, wifi6, multiple network ports, NPU, etc, and 3x SATA3.0, solves various USB expanding to SATA instability problems of traditional AP processor, and up to 4 USB ports, 1xUSB3.0/USB2.0 HOST + RK3568-Development-Board1xUSB3.0/USB2.0 OTG + 1xUSB2.0 HOST + 1xUSB2.0 HOST. RK3568 also supports dual Gigabit Ethernet ports to meet the multi-network port requirements of industrial control and IoT gateways.



Checking RK3568 Development Board Instruction>>






RK3568 SOM Features Details:

RK3568 SOM Features Details:
  • Best Size; 55.8mm*55.8mm*3mm
  • RK809 power management system
  • Kinds of eMMC, 8GB eMMC as default
  • Take LPDDR4, default 2GB RAM, 4GB could be customized,max 8gb
  • Support power sleep and wake-up
  • Support Android 11，Linux ，Ubuntu ，Debian OS
  • Support dual gigabit Ethernet ports
  • 208 PIN out, includes all PIN of CPU
核心板接口

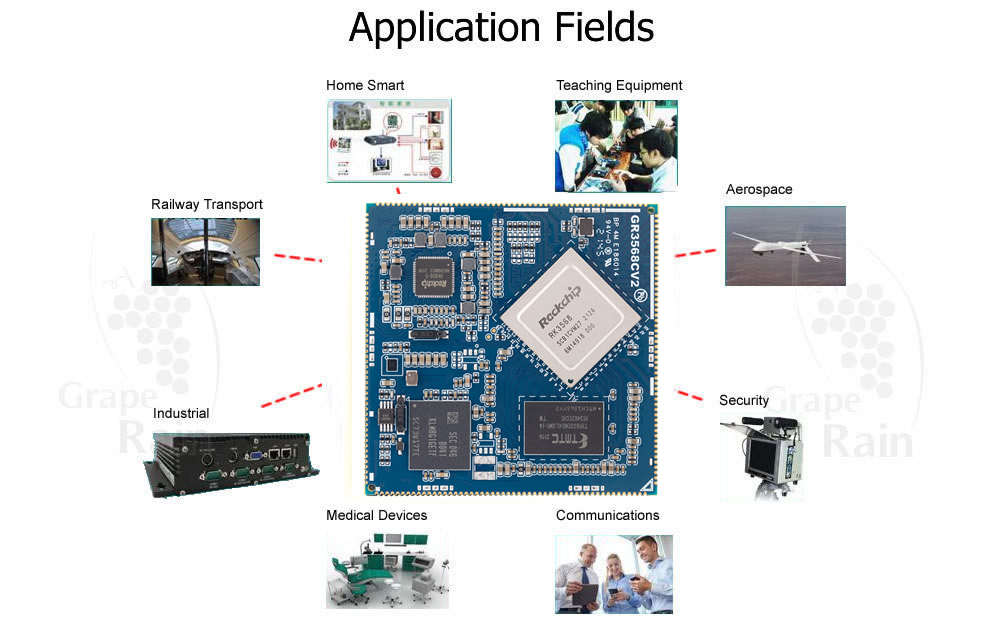

应用领域

Structure Parameter

Structure Parameter
  • Appearance：Stamp hole
  • System Dimension：55.8mm*55.8mm*3mm
  • Pin Pitch：1mm
  • Pin Quantity：208 PIN
  • Layer：8 layers immersion gold designed
System Configuration
  • CPU: RK3568, Cortex A55 quad core 2.0GHz
  • RAM: LPDDR4, 2GB default, 4GB customized
  • Memory: 8GB/16GB/32GB eMMC optional, 8GB default
  • Power IC：RK809
  • Graph and Video Processor: ARM Mali- G52 2EE GPU OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 Support 4K VP9 and 4K 10bits H265/264 video decode, max 60fps.1080 Multi-format video decode 1080 video decode, supports H.264, VP8 format
Interfaces Parameter
  • Display:MIPI interface, eDP output
  • Ethernet:RTL8211F gigabit PHY
  • Audio:IIS/PCM interface, support RP
  • SD Card:2 channels SDIO output
  • EMMC:Onboard eMMC interface, no othe PIN OUT
  • Ethernet:Dual GbE Ethernet ports
  • USB HOST:2 channels HOST2.0, 1 channel HOST3.0
  • USB3.0 OTG:1 channel USB3.0
  • UART:10 channels serial port, supports flow control serial port
  • PWM:12 channels PWM output
  • IIC:6 channels IIC output
  • SPI:3 channels SPI output
  • ADC:5 channels ADC
  • Camera:1 channel MIPI input
  • HDMI:Hd audio and video output, Audio and video synchronous output
  • MIPI:1 channel MIPI RX, 2 channels MIPI TX
  • EDP:Yes
  • PCIE:Support PCIe3.0 1x2/2x1 Lane，PCIe2.1 x1
  • SATA:3 channels SATA3.0
  • CAN:3 channels CAN
Electrical Features
  • Input Voltage：3.3V-5V
  • Output Voltage: 1.8V
  • Storage Temperature: --30--80C
  • Working Temperature: -20--70C


RK3568 SOM Appearance

RK3568 SOM Front
  • RK3568 SOM Front

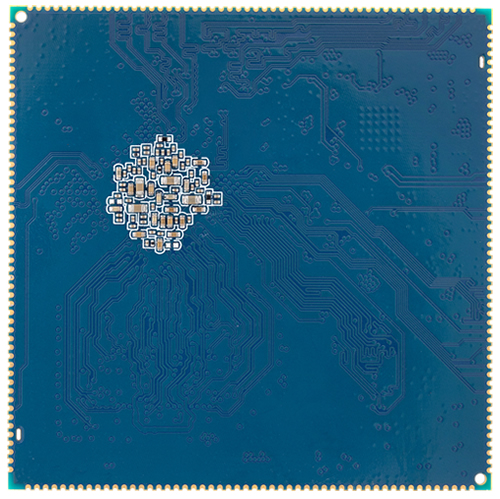

RK3568 SOM Back
  • RK3568 SOM Back
