  • RK3399
  • System on Module
  • CPU:RK3399 ( A53 quad core 1.4 Ghz + A72 dual core 2 Ghz)
  • Competitive product, Stronger & More Stable and Reliable
  • Best size 82mm x 60mm x3mm only, and strong expandability, 313PIN
  • CPU
    1.4GHz*4
    2.0GHz*2
  • DDR3
    2G
  • EMMC
    8G

The King of octa core

2GB RAM as standard and 4GB optional.

  • King of Six Core

    A53 Quad Core + A72 Dual Core CPU
    Cortex A53 quad Core 1.4 Ghz, and A72 dual core 2.0Ghz
    As Swift As Lighting

  • 4GB RAM /32GB EMMC

    DDR 3 dual channels




  • RK808, Dynamic Frequency Modulation

    MPU to insure work stable




  • Android 7.1 OS

    Android 7.1 OS/linux/Debian




Product instruction

G3399 SOM takes Rockchip brand six core 64bit CPU RK3399 which is of dual server level Cortex-A72 + quad core Cortex -A53 dual framework, and its main frequency reach up to 2.0 Ghz, and its features promoted better than A15/A17/A57.



It integrated ARM Mali-T860 MP4 graphics processor, and supports OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,Directx11,AFBC (frame buffer compression), which could be used in computer view, educating machines, 4K 3D development, and more supports H.265 HEVC & VP9、H.265 coding,4K HDR



MIPI-CSI interface and dual ISP, PCIe,USB3.0,USB2.0,TypeC and so on.



Besides RK3399 CPU, we outfit 2GB/4GB DDR3,8GB/16GB/32GB eMMC high-speed storage, independent MPU, strong expansion capability, rich display interfaces, Android 7.1, Linux and Debian OS.



G3399 development board consists G3399 SOM and carrier board. And this G3399 SOM is very convenient to fix.



Checking RK3399 Development Board Instruction>>

Checking RK3399 Single Board Computer Instruction>>




G3399 SOM Features

  • Best Size: 82mm*60mm
  • RK808 PMU
  • Kinds of eMMC supports, default 8GB eMMC
  • Single channel DDR3, default 2GB, 4GB could be customized
  • Power sleep wake
  • Android 7.1, Linux and Debian OS
  • The gigabit Ethernet
  • HDMI 2.0
  • Rich display interface, drive 2K display
  • 4K Video Hard Decoding
  • It integrated ARM Mali-T860 MP4 graphics processor, and supports OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,Directx11, which could come ture 4K x 2K H.264 and 10 bit H.265 video hard decoding. Antutu runs 50000points

  • G3399 SOM Size and PINs
  • Size: 82mm*60mm*3mm


    Shenzhen Graperain Technology Co., Ltd. have integrated all its features into G3399 SOM yet. Customers only need to design the two or four layers carrier board to realize high-end quad core product design.

  • 313 PINs, Meet Kinds of Needs
  • G3399 SOM is of strong expandable, more 313 PINs, max 2.0 Ghz. Its PCB takes 8-layers immersion gold process design, with best electrical specification and immunity characteristics.


    Supports MIPI interface, eDP output, dual MIPI-CSI interfaces and dual ISP, PCIe, USB3.0, USB2.0 and TypeC and so on.

G3399 SOM Parameters

Structure Parameter:
  • Outlook: Golden finger
  • Size:82mm*60mm*3mm
  • Pin Distance:1.1mm
  • Pin Bonding Pad Size:1.3mm*0.7mm
  • Pin Quantity:313 PIN
  • Craft:8-layer immersion gold designed
System Configuration
  • CPU: RK3399, Cortex A53 quad core 1.4GHz + A72 dual core 2GHz
  • Storage:Single channel DDR3, default 2GB, 4GB could be customized
  • RAM: 4GB/8GB/16GB/32GB emmc optional, and default 8GB
  • Power IC: RK808, supports Dynamic frequency modulation
  • Graphics Processor: Mali-T860 MP4,quad core GPU, supports OpenGL ES 1.1/2.0/3.0/3.1,Openvg1.1,OpenCL,Directx11, and 4K VP9 & 4K 10bits H265/H.264video hard decoding,max up to 60 fps,1080Pmulti-formats video decoding, 1080P decoding such as H.264, VP8
  • Ethernet: RTL8211E the gigabit Ethernet PHY
Interface Parameters:
  • Display Interface: MIPI interface, eDP output
  • Touch Interface: Capacitive touch, usb or serials extensional resistive touch
  • Voice Frequency: AC97/IIS/PC interface, and support recording and sound
  • SD Card: 2 channels SDIO output
  • EMMC: eMMC onboard, no other pin out
  • Ethernet: the gigabit Ethernet
  • USB HOST: 2 channels HOST 2.0, 1 HOST3.0
  • USB TYPEC: 1 channel
  • UART: 5 channels, and supports flow control serial port
  • PWM: 2 channels
  • IIC: 6 channels
  • SPI: 1 channel
  • ADC: 5 channels
  • Camera:1 channel BT656/BT601, 2 channels MIPI output
  • HDMI: HDMI2.0 output, synchronous output of audio and video
  • MIPI: 1 channel MIPI RX, 1 channel MIPI TX, 1 channel MIPI RX/TX
  • EDP: Yes
Electrical Features
  • Input Voltage:3.3V
  • Output Voltage:1.8V
  • Storage Temp.:-20~80℃
  • Working Temp.:-20~70℃
Others
  • Others: OS: Android 7.1, Linux and Debian OS
Applicable Industries
  • Handheld device, electricity, communication, medical treatment, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc
Typical Applications
  • POS machines, express carriers, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conference system, etc.

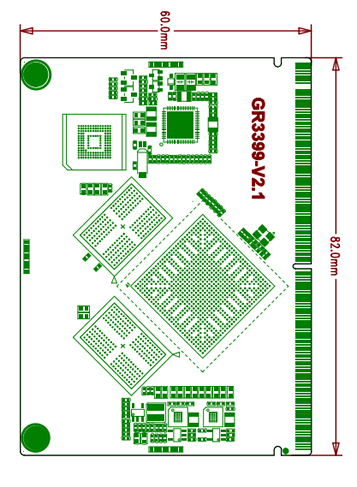

System on Module Appearance

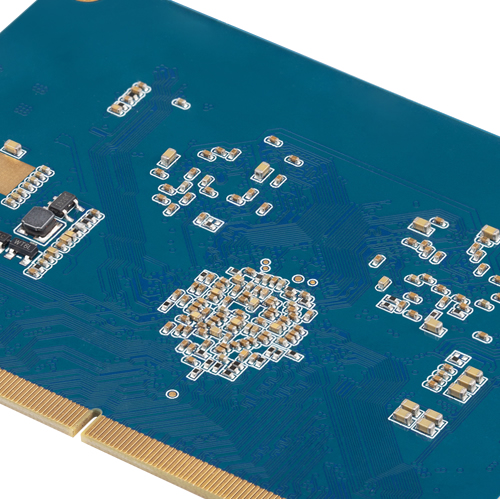

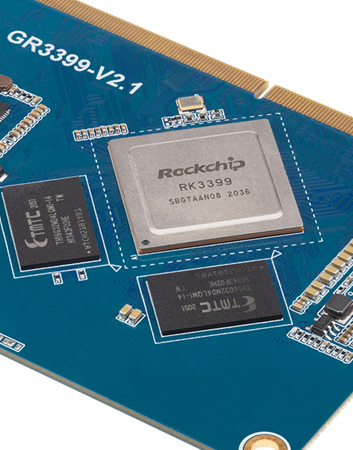

System on Module Real View

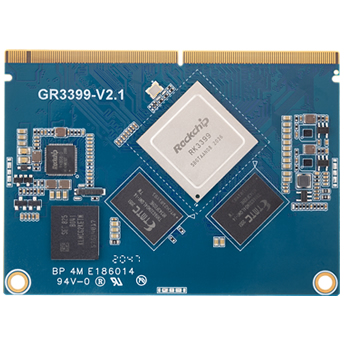

System on Module Panel

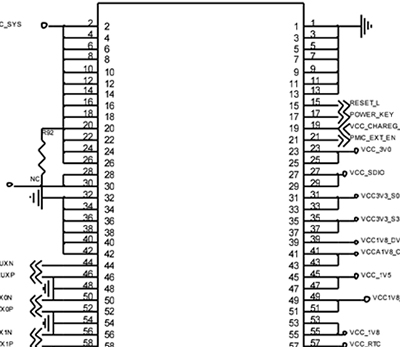

G3399 SOM Pin Definition

Pin 01
Pin #
Signal Instructions
Instructions
1
GND
2
VCC_SYS
3
GND
4
VCC_SYS
5
GND
6
VCC_SYS
7
GND
8
VCC_SYS
9
GND
10
VCC_SYS
11
GND
12
VCC_SYS
13
GND
14
VCC_SYS
15
RESET_L
16
VCC_SYS
17
POWER_KEY
18
VCC_SYS
19
VCC_CHARGE_EN
20
VCC_SYS
21
PMIC_EXT_EN
22
VCC_SYS
23
VCC_3V0
24

VCC_SYS

25
VCC_3V0
26
VCC_SYS
27
VCC_SDIO
28
VCC3V3_S5
29
VCC_SDIO
30
VCC3V3_S5
31
VCC3V3_S0
32
GND
33
VCC3V3_S0
34
GND
35
VCC3V3_S7
36
GND
37
VCC3V3_S7
38
GND
39
VCC1V8_DVP
40
GND
41
VCC1V8_CODEC
42
GND
43
VCC1V8_CODEC
44
EDPAUXN
45
VCC_1V5
46
EDPAUXP
47
VCC_1V5
48
GND
49
VCC1V8_S3
50
EDP_TX0N
51
VCC1V8_S3
52
EDP_TX0P
53
VCC_1V8
54
GND
55
VCC_1V8
56
EDP_TX1N
57
VCC_RTC
58
EDP_TX1P
59
VCC_EFUSE
60
GND
61
MAC_TXD3
62
EDP_TX2P
63
MAC_TXEN
64
EDP_TX2N
65
MAC_CRS
66
GND
67
MAC_TXD1
68
EDP_TX3P
69
MAC_RXER/INT
70
EDP_TX3N
71
MAC_TXD2
72
GND
73
MAC_MCLK
74
GPIO2_B4/DVP_PDN0_H
75
MAC_RXD3
76
GPIO2_B1/I2C6_SDA/CIF_HREF
77
MAC_TXD0
78
GPIO2_B0/I2C7_SCL/CIF_VSYN
79
MAC_RXDV
80
GPIO2_A0/I2C2_SDA/CIF_D0
81
MAC_RXD0
82
GPIO2_A1/I2C2_SCL/CIF_D1
83
MAC_COL/PMEB
84
GPIO2_A2/CIF_D2
85
MAC_RXCLK
86
GPIO2_A3/CIF_D3
87
MAC_TXCLK
88
GPIO2_A4/CIF_D4
89
MAC_MDC
90
GPIO2_A5/CIF_D5
91
MAC_RXD1
92
GPIO2_A6/CIF_D6
93
MAC_RXD2
94
GPIO2_A7/I2C7_SDA/CIF_D7
95
MAC_MDIO
96
GPIO2_B2/I2C6_SCL/CIF_CLKI
97
GND
98
GPIO2_B3/CIF_CLKO
99
PCIE_TX2P
100
GND
101
PCIE_TX2N
102
SPI1_CLK
103
GND
104
SPI1_RXD
105
PCIE_RX2_P
106
SPI1_TXD
107
PCIE_RX2_N
108
SPI1_CSN0
109
GND
110
GPIO0_B5
111
PCIE_TX3N
112
GPIO0_A2
113
PCIE_TX3P
114
GPIO1_C6
115
GND
116
TOUCH_INT_L
117
PCIE_RX3_P
118
LCD_EN_H
119
PCIE_RX3_N
120
GPIO1_D0
121
GND
122
I2C4_SCL
123
PCIE_REF_CLKP
124
I2C4_SDA
125
PCIE_REF_CLKN
126
GPIO1_A1
127
GND
128
SPK_CTL_H
129
PCIE_TX0N
130
GPIO1_A0
131
PCIE_TX0P
132
GPIO0_B0
133
GND
134
GPIO1_C7
135
PCIE_RX0_N
136
GPIO1_A3
137
PCIE_RX0_P
138
GPIO1_A4
139
GND
140
IR_RX
141
PCIE_TX1N
142
GND
143
PCIE_TX1P
144
RTC_CLK_OUT
145
GND
146
GND
147
PCIE_RX1_N
148
HOST1_DP
149
PCIE_RX1_P
150
HOST1_DM
151
GND
152
GND
153
ADC_IN0
154
HOST0_DM
155
ADC_IN1
156
HOST0_DP
157
ADC_IN2
Pin 02
Pin #
Signal Instructions
Instructions
158
GND
159
ADC_IN4
160
TYPEC0_U2VBUSDET
161
ADKEY_IN
162
USB3_SSTXN
163
GND
164
USB3_SSTXP
165
USB3_DP
166
GND
167
USB3_DM
168
USB3_SSRXP
169
GND
170
USB3_SSRXN
171
TYPEC0_DM
172
GND
173
TYPEC0_DP
174
TYPEC0_TX2N
175
GND
176
TYPEC0_TX2P
177
TYPEC0_SBU2_DC
178
GND
179
TYPEC0_SBU2_DC
180
TYPEC0_RX2P
181
GND
182
TYPEC0_RX2N
183
TYPEC0_SBU2
184
GND
185
TYPEC0_SBU1
186
TYPEC0_TX1N
187
GND
188
TYPEC0_TX1P
189
TYPEC0_RX1N
190
GND
191
TYPEC0_RX1P
192
HDMI_TX2P
193
GND
194
HDMI_TX2N
195
MIPI_TX0_D0P
196
GND
197
MIPI_TX0_D0N
198
HDMI_TX1P
199
GND
200
HDMI_TX1N
201
MIPI_TX0_D1P
202
GND
203
MIPI_TX0_D1N
204
HDMI_TX0P
205
GND
206
HDMI_TX0N
207
MIPI_TX0_CLKP
208
GND
209
MIPI_TX0_CLKN
210
HDMI_TXCP
211
GND
212
HDMI_TXCN
213
MIPI_TX0_D2N
214
GND
215
MIPI_TX0_D2P
216
MIPI_RX0_D0N
217
GND
218
MIPI_RX0_D0P
219
MIPI_TX0_D3P
220
GND
221
MIPI_TX0_D3N
222
MIPI_RX0_D1N
223
GND
224
MIPI_RX0_D1P
225
MIPI_TX1/RX1_D3N
226
GND
227
MIPI_TX1/RX1_D3P
228
MIPI_RX0_CLKN
229
GND
230
MIPI_RX0_CLKP
231
MIPI_TX1/RX1_D2N
232
GND
233
MIPI_TX1/RX1_D2P
234
MIPI_RX0_D2N
235
GND
236
MIPI_RX0_D2P
237
MIPI_TX1/RX1_CLKN
238
GND
239
MIPI_TX1/RX1_CLKP
240
MIPI_RX0_D3N
241
GND
242
MIPI_RX0_D3P
243
MIPI_TX1/RX1_D1N
244
GND
245
MIPI_TX1/RX1_D1P
246
BT_REG_ON_H
247
GND
248
WIFI_HOST_WAKE_L
249
MIPI_TX1/RX1_D0N
250
WIFI_REG_ON_H
251
MIPI_TX1/RX1_D0P
252
BT_HOST_WAKE_L
253
GND
254
GPIO0_B4
255
SDMMC0_CLK
256
CHG_CC_INT_L
257
SDMMC0_PWR_H
258
UART0_RTS
259
SDMMC0_DET_L
260
UART0_TXD
261
SDMMC0_CMD
262
SDMMC0_CMD
263
SDMMC0_D0
264
UART0_RXD
265
SDMMC0_D1
266
DVP_PDN1_H
267
SDMMC0_D2
268
CAMERA_RST_L
269
SDMMC0_D3
270
CABC_EN
271
SDIO0_CMD
272
BT_WAKE_L
273
SDIO0_D0
274
GPIO4_C6/PWM1_D
275
SDIO0_D1
276
GPIO4_B3
277
SDIO0_D2
278
PORT_HPD
279
SDIO0_D3
280
SPDIF_TX
281
SDIO0_CLK
282
PCIE_CLKREG
283
RTC_CLK0_WIFI
284
GPIO4_D2
285
GND
286
I2C1_SDA
287
I2S_CLK
288
I2C1_SCL
289
I2S0_LRCK_RX
290
GPIO4_A5
291
I2S0_SCLK
292
HP_DET_H
293
HDMIIN_PWREN18/I2S1_SCLK
294
VCC5V0_HOST_EN
295
HDMIIN_STBY/I2S1_SDI0
296
UART2DBG_RX
297
GPIO3_D4/I2S0_SDI1
298
UART2DBG_TX
299
HDMIIN_PWREN33/I2S1_SDO0
300
LCD_RST_H
301
HDMIIN_RST/I2S1_LRCK_RX
302
LCD_BL_PWM
303
I2S0_SDI0
304
I2C_SDA_HDMI
305
GPIO3_D5/I2S0_SDO2
306
HDMI_CEC
307
I2S0_SDO0
308
I2C_SCL_HDMI
309
GPIO3_D6/I2S0_SDO1
310
GND
311
I2S0_LRCK_TX
312
GND
313
GND


Attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.

RK3399 products

  • Arm Cortex A72 G3399 Development Boards – Graperain
    CPU:RK3399 ARM Cortex-A72+Cortex-A53;
    Frequency:2.0GHz*2+1.4GHz*4
    RAM:2GB DDR3/4GB DDR3 optional
    Flash:8GB/16GB/32GB emmc optional
  • G3399 SBC Single Board Computer– Graperain
    CPU:RK3399 ARM Cortex-A72+Cortex-A53;
    Frequency:2.0GHz*2+1.4GHz*4
    RAM:2GB DDR3/4GB DDR3 optional
    Flash:8GB/16GB/32GB emmc optional
  • G3399 System On Module(SOM) – Graperain
    CPU:RK3399 ARM Cortex-A72+Cortex-A53;
    Frequency:2.0GHz*2+1.4GHz*4
    RAM:2GB DDR3/4GB DDR3 optional
    Flash:8GB/16GB/32GB emmc optional





Follow us


Contacts
Shenzhen Graperain Technology Co., Ltd.
Tel: +86-755-2302 5312
Fax: +86-755-2302 5312-8006
Email: [email protected]aperain.com
Post Code: 518000

Address: Building D, Huafeng Tech. & Innov. Park Baoan Wisdom Valley, Xixiang, Baoan Dist.Shenzhen, Guangdong

Open Hours:9:00 am to 18:00 pm on Monday Tuesday Wednesday Thursday Friday
Connect

Copyright © Shenzhen Graperain Technology Co., Ltd. All rights reserved.
