  • RK3288
  • RK3288
  • System on Module
  • CPU:RK3288 (ARM Cortex-A17)
  • Goods in the high-quality, and absolutely stable and reliable.
  • G3288 system on module is of the smallest size and insure GPIO intefaces inland meanwhile, size 50mm x 66mm x 3mm.
  • CPU
    1.8GHz*4
  • DDR3
    2G
  • EMMC
    8G

The King of Quad core

2GB RAM as standard, and 4GB optional.

  • A17 Quad Core CPU

    ARM Cortex-A17 and 1.8Ghz Quad Core



    A17 Quad Core CPU
  • 4GB Emmc, 32GB Memory






    4GB Emmc, 32GB Memory
  • Independence Power Management

    Takes RK818, it supports dynamic frequency modulation and coulombmeter,
    which could be insure it works stable.


    Independence Power Management
  • Android 5.1 Operating System

    Android 5.1 Operating System




    Android 5.1 Operating System

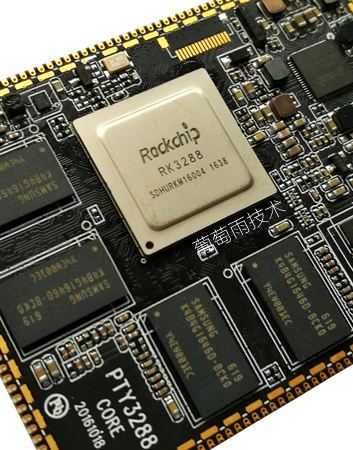

G3288 System on Module (shorts for G3288 SOM) Introduction:

G3288 SOM is based on Rockchip RK3288 ( A17 quad-core) chip, and which launced from Shenzhen Graperain Technology Co., Ltd.



G3288 SOM takes Rockchip RK3288 (A17 quad-core) CPU, and its basic frequency is 1.8Ghz, integrated Mali-T760 MP4 graphics processor, supports OpenGL ES1.1/2.0/3.0,OpenVG1.1,OpenCL,Directx11, and supports H.264 of 4K X 2K and 10bit H.265 hard video decoding.



Checking RK3288 Development Board Instruction>>




G3288 SOM Features

G3288 SOM Features

Stronge graphics processor and 4K hard video decoding

  • Dual-frequency different show

    Dual-frequency different show


    Dual-frequency different show

  • HDMI 2.0 : HDMI video and audio sync out

    HDMI 2.0 : HDMI video and audio sync out


    HDMI 2.0 : HDMI video and audio sync out

  • 支持WIFI 双频

    Wifi Dual Band


    802.11b/g/n and 5G & 2.4G dual band

  • 支持Linux+4G

    Compatible 2K Display


    integrated Mali-T760 MP4 graphics processor, supports OpenGL ES1.1/2.0/3.0,OpenVG1.1,OpenCL,Directx11, and supports H.264 of 4K X 2K and 10bit H.265 hard video decoding.




G3288 SOM Features Details:

G3288 SOM Features Details:
  • The smallest size: 50mm x 66mm, and ensure GPIO interfaces Onboard
  • Takes RK818 PMU power management and keep work stable
  • Supports kinds of eMMC, Toshiba 8GB eMMC as default
  • Takes single channel DDR3, and 2GB as default. 4GB as optional
  • Supports power sleep wake up
  • Supports Android 5.1. Linux + qt, Ubuntu operating system
  • Onboard the Gigabit Ethernet
  • Supports HDMI2.0
  • Supports 2k display drive

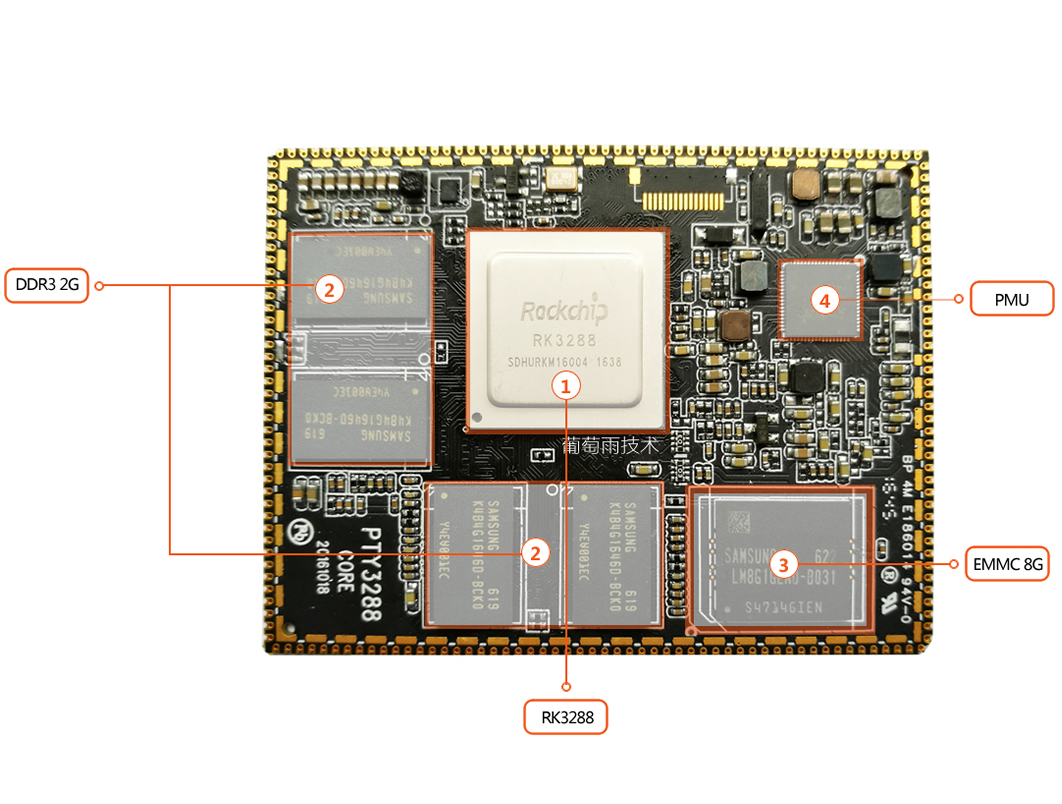

核心板接口
  • G3288 SOM Supports 4K Hard Video Decoding
  • G3288 SOM Supports 4K Hard Video Decoding
  • G3288 system on module ( shorts for G3288SOM ) is of Rockchip RK3288 chip, its main frequency 1.8 Ghz, and integrated Mali-T760 MP4 graphics processor, supports OpenGL ES1.1/2.0/3.0,OpenVG1.1,OpenCL,Directx11, and supports H.264 of 4K X 2K and 10bit H.265 hard video decoding.

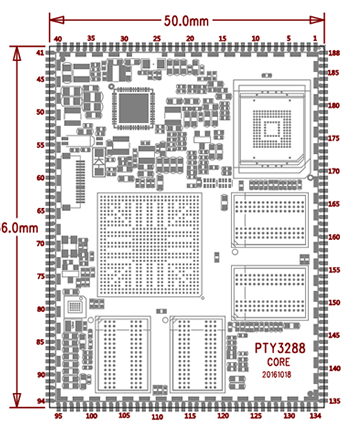

  • G3288 SOM Size and PINs
  • G3288 SOM Size and PINs
  • The best size: 50mmx66mmx3mm


    Shenzhen Graperain Technology Co., Ltd. have integrated all its features into G3288 SOM yet. Customers only need to design the two or four layer carrier board, can realize high-end quad core product design.

  • 204 PINs
  • 204 PINs
  • G3288SOM is of strong expandability, which is 204 PINs, and 1.8Ghz. Its PCB takes 8-layers immersion gold designed, which is of the best electrical properties and anti-interference characteristics.


    Meanwhile, G3288 SOM supports LVDS, MIPI out, the gigabit Ethernet, and HDMI2.0 too.

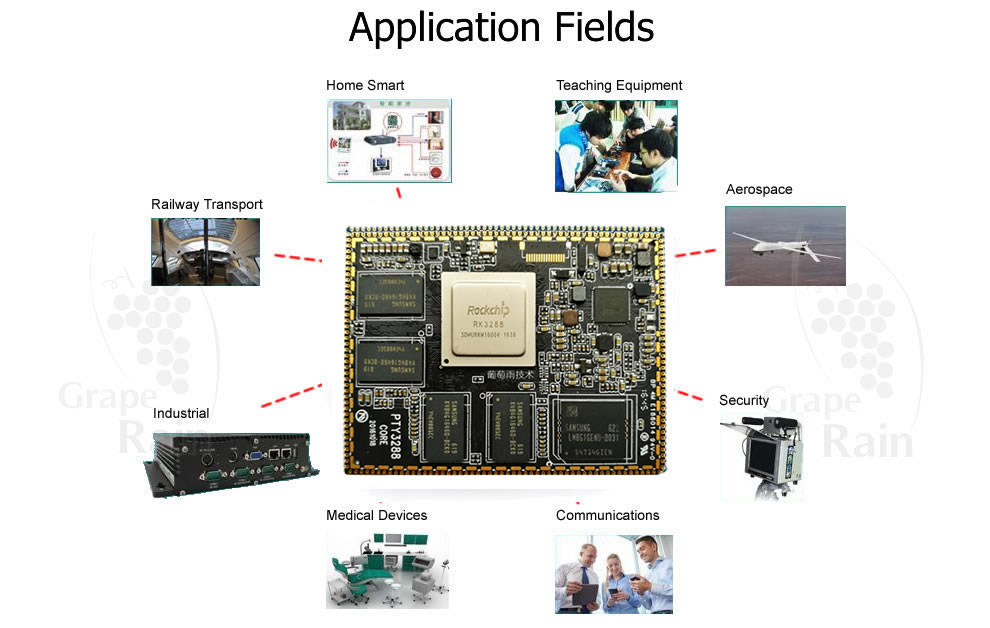

应用领域

Structure Parameter

Structure Parameter
  • Appearance:Stamp hole
  • System Dimension:50mm*66mm*3mm
  • Pin Pitch:1.1mm
  • Pin Pad Dimension:1.3mm*0.7mm
  • Pin Quantity:204 PIN
  • Layer:8 layers immersion gold designed
System Configuration
  • CPU:RK3288,Quad core A17 1.8 GHz
  • RAM:2GB as default,and 4GB for optional
  • Storage: 4GB/8GB/16GB/32GB eMMC for optional, 8GB as default
  • IC Power IC:RK818,which support dynamic frequency and
  • Ethernet:RTL8211E the gigabit Ethernet PHY
Interfaces Parameter
  • Display Interfaces :LVDS、MIPI output
  • Touch Interfaces:Capacitive touch, supports USB serial ports extension
  • Audio Interfaces:AC97/IIS/PCM, supports record and play
  • SD Slot:Two channels SDIO input
  • EMMC:Inland eMMC, no PIN
  • Ethernet:The gigabit Ethernet
  • USB HOST :Five channels USB HOST 2.0
  • USB OTG :Single channel USB OTG 2.0
  • UART :Four channels serial ports, and supports stream control
  • PWM :Two channels PWM output
  • IIC :Five channels IIC output
  • SPI :Single channel SPI output
  • ADC :Single channel ADC output
  • Camera :Single channel BT656/BT601, single MIPI output
  • HDMI :HDMI2.0,HD A&V output, and audio output
  • Boot Config.:No, the SOM boot automatically
Electrical Features
  • Input Voltage:12V
  • Output Voltage:5V
  • Storage Temp.:-20~80℃
  • Working Temp.:-20~70℃

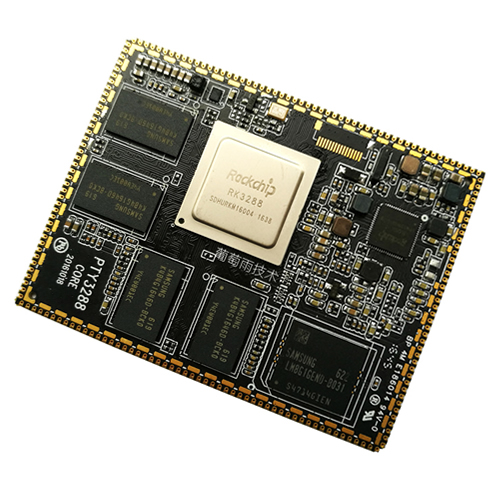

G3288 SOM Appearance

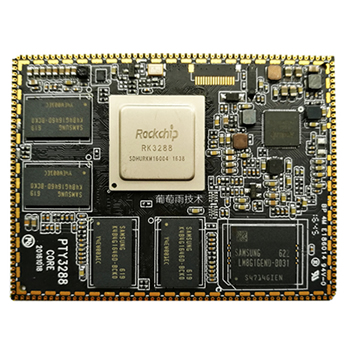

G3288 SOM Front
  • G3288 SOM Front

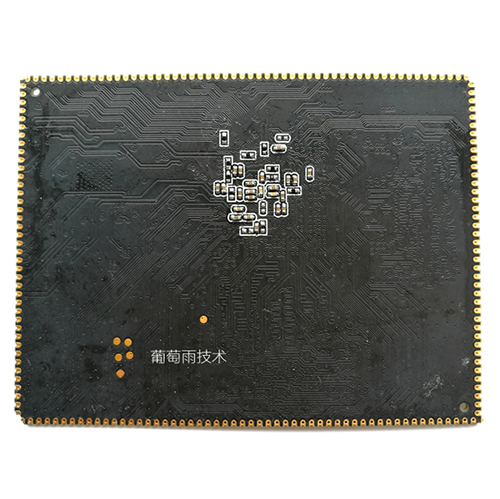

G3288 SOM Back
  • G3288 SOM Back

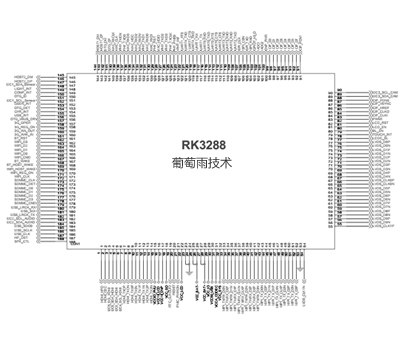

G3288 SOM Pin Definition:

Pin01
Pin #
Signal
Instructions
1
HDMI_HPD
2
HDMI_CEC
3
I2C5_SCL_HDMI
4
I2C5_SDA_HDMI
5
I2C4_SDA_HDMI
6
I2C4_SCL_HDMI
7
HDMI_TXCP
8
HDMI_TXCN
9
HDMI_TX0P
10
HDMI_TX0N
11
HDMI_TX1P
12
HDMI_TX1N
13
HDMI_TX2P
14
HDMI_TX2N
15
VCCIO_PMU
16
VCC18_LCD
17
VCC18_DVP
18
VCC_SD
19
RTC_CLKOUT2
20
RESET
21
PMIC_PWRON
22
VCC_LCD
23
GND
24

GND

25
VCC_BAT-
26
VCC_BAT-
27
VCC_BAT+
28
VCC_BAT+
29
VCC_IO
30
VCC50_USB
31
VCCA_CODEC
32
VCC_SYS
33
MIPI_TX/RX_D0N
34
MIPI_TX/RX_D0P
35
MIPI_TX/RX_D1N
36
MIPI_TX/RX_D2P
37
MIPI_TX/RX_CLKN
38
MIPI_TX/RX_CLKP
39
MIPI_TX/RX_D2N
40
MIPI_TX/RX_D2P
41
MIPI_TX/RX_D3P
42
MIPI_TX/RX_D3N
43
MIPI_TX_D0N
44
MIPI_TX_D0P
45
MIPI_TX_D1N
46
MIPI_TX_D1P
47
MIPI_TX_CLKN
48
MIPI_TX_CLKP
49
MIPI_TX_D2N
50
MIPI_TX_D2P
51
MIPI_TX_D3N
52
MIPI_TX_D3P
53
GND
54
LVDS_CLK1N
55
LVDS_CLK1P
56
LVDS_D9N
57
LVDS_D9P
58
LVDS_D8N
59
LVDS_D8P
60
LVDS_D7N
61
LVDS_D7P
62
LVDS_D6N
63
LVDS_D6P
64
LVDS_D5N
65
LVDS_D5P
66
LVDS_CLK0N
67
LVDS_CLK0P
68
LVDS_D4N
69
LVDS_D4P
70
LVDS_D3N
71
LVDS_D3P
72
LVDS_D2N
73
LVDS_D2P
74
LVDS_D1N
75
LVDS_D1P
76
LVDS_D0N
77
LVDS_D0P
78
LCDC_BL
79
TOUCH_INT
80
BL_EN
81
LCD_EN
82
LCD_RST
83
PWM1
84
CIF_CLKI
85
CIF_CLK0
86
CIF_HREF
87
CIF_VSYNC
88
CIF_PDN0
89
I2C3_SDA_CAM
90
I2C3_SCL_CAM
91
CIF_PDN1
92
CIF_D7
93
CIF_D6
94
CIF_D5
Pin02
Pin #
Signal
Instructions
95
CIF_D5
96
CIF_D3
97
CIF_D2
98
CIF_D1
99
CIF_D0
100
DVP_PWR
101
ADC1
102
ADC2
103
GPIO7_A5_D
104
SPI_RXD
105
SPI_TXD
106
SPI_CSN
107
SPI_CLK
108
UART2_TXD
109
UART2_RXD
110
UART3_RXD
111
UART3_TXD
112
UART3_CTS
113
UART0_CTS
114
UART0_RTS
115
UART0_TXD
116
UART0_RXD
117
UART1_TX
118
UART1_RX
119
UART4_RXD
120
UART1_CTS
121
UART4_TXD
122
UART1_RTS
123
PHY_INT
124
PHY_PMEB
125
PHY_TXCLK
126
PHY_TXD3
127
PHY_TXD2
128
MAC_MDIO
129
PHY_RST
130
MAC_RXD1
131
MAC_RXD0
132
MAC_TXD1
133
MAC_RXDV
134
MAC_RXD2
135
MAC_MDC
136
MAC_RXD3
137
PHY_TXD0
138
PHY_TXEN
139
MAC_CLK
140
MAC_RXCLK
141
OTG_DP
142
OTG_DM
143
HOST1_DP
144
HOST1_DM
145
HOST2_DM
146
HOST2_DP
147
I2C1_SDA_Sensor
148
LIGHT_INT
149
COMP_INT
150
OTG_ID
151
I2C1_SCL_Sensor
152
GSEN_INT
153
OTG_DET
154
GYR_INT
155
USB_INT
156
OTG_VBUS_DRV
157
3G_GPIO1
158
3G_REG_ON
159
3G_WA_OUT
160
3G_WAK_IN
161
BT_RST
162
WIFI_D3
163
WIFI_D2
164
WIFI_D1
165
WIFI_D0
166
WIFI_CMD
167
BT_WAKE
168
BT_HOST_WAKE
169
WIFI_HOST_WAKE
170
WIFI_REG_ON
171
WIFI_CLK
172
SDMMC_CLK
173
SDMMC_DET
174
SDMMC_D0
175
SDMMC_D1
176
SDMMC_D2
177
SDMMC_D3
178
SDMMC_CMD
179
I2S0_LRCK_RX
180
I2S0_SDI
181
I2S0_LRCK_TX
182
I2C2_SCL_AUDIO
183
I2C2_SDA_AUDIO
184
I2S0_SDO0
185
I2S0_SCLK
186
I2S0_CLK
187
HP_DET
188
SPK_CTL


G3288 SOM Pin Definition

Pin01
Pin #
Signal
Instructions
1
GND
2
MIPI_RX_D0P
3
MIPI_RX_D0N
4
GND
5
MIPI_RX_D1P
6
MIPI_RX_D1N
7
GND
8
MIPI_RX_CLKP
Pin02
Pin #
Signal
Instructions
9
MIPI_RX_CLKP
10
GND
11
MIPI_RX_D2P
12
MIPI_RX_D2N
13
GND
14
MIPI_RX_D3P
15
MIPI_RX_D3N
16
GND


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
