  • RK3288
  • RK3288
  • Development Board
  • CPU:RK3288 (ARM Cortex-A17)
  • RK3288 development board supports Android 5.1, Linux + Qt, and Ubuntu OS
  • The system on module uses 8-layer process design, ensure reliability and stability
  • CPU
    1.8GHz*4
  • DDR3
    2G
  • EMMC
    8G




Core Advantages

Core Advantages

Powerful Image Processing ability | support 4k video hardware decoding

  • Support double screen different display

    Support double screen different display


    Support double screen different display

  • Support HDMI2.0

    Support HDMI2.0


    HDMI2.0, HD audio
    video output, audio
    video output synchronizing

  • Support WIFI Double Frequency

    Support WIFI Double Frequency


    WIFI(802.11b/g/n)support 5G and 2.4G. It needs to custom if with 2 frequency.The development board support 2.4G now.

  • 支持Linux+4G

    It can drive 2k screen.


    Integrate with Mali-T760 MP4 image processing, support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL, Directx11. Can achieve 4K x 2K H.264 and 10 bits H.265 video hard decoding.

  • Support wifi, bluetooth, GYROSCOPE, camera exclusive
  • Support wifi, bluetooth, GYROSCOPE, camera exclusive
  • G3288 development board supports gigabit Ethernet, audio, wifi, BT, gyroscope, camera, etc. onboard HDMI, LVDS ports, MIPI and USB ports,etc. Meanwhile the hardware keep its uniform style, supports software power on/off, dormancy awakening and so on.


    The system on module uses 8-layer process design, ensure reliability and stability. It can be used in tablet, electric power, medical, media, security, automotive, handheld devices, POS, game consoles and so on.

  • Rich software sources, multi OS supporting
  • Rich software sources, multi OS supporting

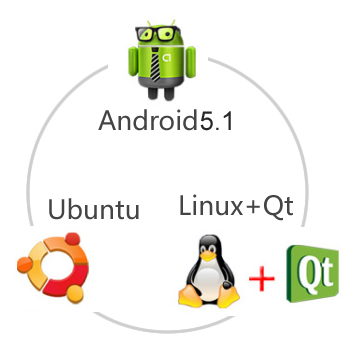

  • G3288 comes with complete and stable Android5.1, Linux+qt, Ubuntu OS. Graperain is the first company that launched G3288 development board.

    It can be used in tablet, electric power, medical, media, security, automotive, handheld devices, POS, game consoles and so on.


  • Varieties interfaces, complete functions
  • Varieties interfaces, complete functions
  • There are a lot of peripherals in carrier board, and it could demonstrate all functions of RK3288 chip, such as supports Ethernet, audio, wifi, BT, gyroscope, camera, etc. onboard HDMI, LVDS ports, MIPI ports ,etc. Meanwhile the hardware keep its uniform style, supports software power on/off, dormancy awakening and so on.


    Greperain G3288 SOM almost achieve all the functions. Customers only need to design the two or four layer carrier board, can realize high-end quad core product design.










RK3288 main features list

As quad core processor becomes popular fast, either main consumer or industrial platform users are taking quad core processor to develop products. Graperain G3288 is such a board with full interfaces with cost effective.

  CPU   RK3288
  Availability 2014
  Technological Process 28 nm
  CPU frequency

1.8G

CPU Cortex-A17 quad core

GPU

ARM Mali-T764 GPU, support TE, ASTC, AFBC memory compress technology

Memory

Dual channel DRAM controller, 64 bits  storage interface, support DDR3L, LPDDR2, LPDDR3

Image Processing

support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11, Embedded high performance 2D/3D Accelerated Hardware, support 4K, H.265 hard decoding 10bits colour depth, HDMI2.0

Support 1080P Multimedia Decoding 1080P video coding, support H.264, VP8 and MVC image enhancement process, Geomerics Enlighten global real time engine, Display hardware low energy

Display interface

RGB,MIPI,LVDS,eDP;
Max support 3840X2160 resolution, and HDMI2.0 output

Ethernet

Gigabit

GPIO

3.3V

LCD

RGB,MIPI

USB

2 HOST2.0, 1 OTG

ISP

support , embedded 13M ISP




G3288 comes with complete and stable Android5.1, Linux+qt, Ubuntu OS. Graperain is the first company that launched G3288 development board. G3288 development board contains of stamp hole system on module + carrier board design. 204 pins in total, max to 1.8GHz. The system on module uses 8-layer process design, ensure reliability and stability.



Check RK3288 SOM features>>





 The most cost-effective quad core

●Super Cortex-A17  ●max to 1.8GHz  ●single channel memory  ●stable  ●long supply

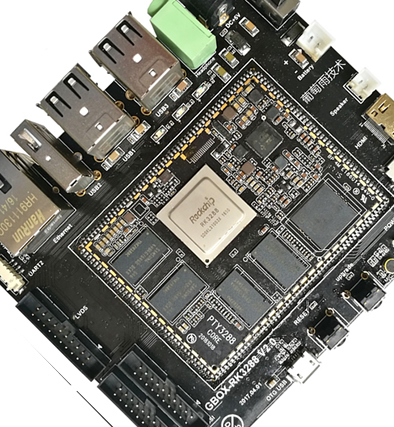

Brief Introduction

G3288 development board contains of stamp hole system on module, carrier board and LCD board. The system on module uses 8-layer process design, and is stable, which could be used in tablet pc, car machine, learning machine, POS machine, game machine, industry monitoring and many other fields. The chipset is Cortex-A17 quad core RK3288, frequency can be up to 1.8GHz. There are a lot of peripherals in carrier board, and it could demonstrate all functions of RK3288 chip, such as supports Ethernet, audio, wifi, BT, gyroscope, camera, etc. onboard HDMI, LVDS ports, MIPI ports ,etc. Meanwhile the hardware keep its uniform style, supports software boot, dormancy awakening and so on.



G3288 system on module could be used in industrial control, electric power, communications, medical, media, security, automotive, financial, consumer electronics, handheld devices, game consoles, display control, teaching instrument ,etc. More POS, game consoles, the teaching experiment platform, multimedia terminal, PDA, order machine, advertising machine and so on.

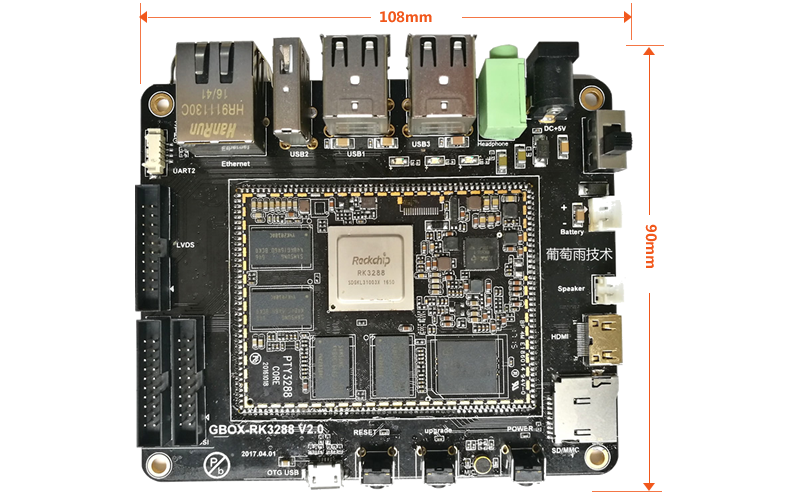

G3288 SOM size:50mm * 66mm    G3288 carrier board size:108mm * 90mm    Check RK3288 SOM features>>





应用领域




The product features

The product features
  • Kernel: ARM Cortex-A17 quad core
  • Frequency: 1.8GHz*4
  • Memory: 2GB DDR3, can be custom to 4GB DDR3
  • Flash: support 8GB/16GB/32GB emmc, standard 8GB emmc
  • Dual channel 8 bit LVDS interface
  • 5 channel USB HOST interface, support more USB device works same time
  • USB OTG interface
  • 1 channel TTL interface
  • 1 channel TF card interface
  • 1 channel LED
  • Reset button
  • Software turn on/off button
  • Standard external speakers
  • MIC input
  • Earphone output interface
  • The sole support from launch configuration switch design
  • support backlight sleep adjustment
  • support HDMI2.0 interface
  • support 5 points capacitive touch
  • support SDIO interface WIFI;
  • support bluetooth
  • support kinds of SPI,I2C,UART, and periphery extend
  • support MPEG4, H.263, H.264, MJPEG video coding
  • support all format video decoding
  • support 2D, 3D High-performance graphics acceleration
  • support RTC
  • support Gigabit Ethernet RTL8211E
  • support BT656/BT601/MIPI camera interface;
  • support external USB 3G module
  • support USB mouse, keyboard
  • support gyroscope


Development board size


Development board size

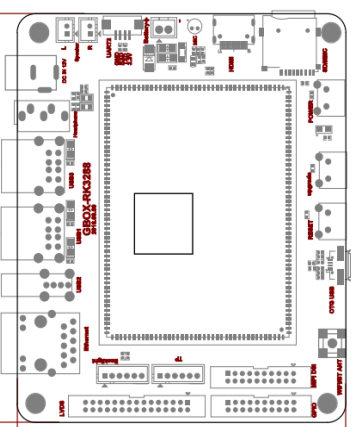

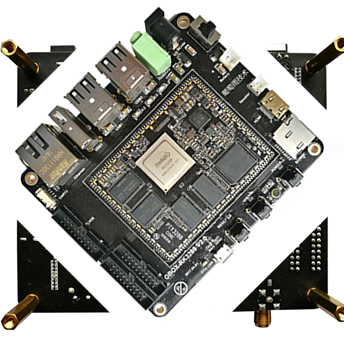

Development board interfaces 1


Development board interfaces 1


Development board interfaces 2


Development board interfaces 2

Parameters

LCD
  • size: 7” capacitive touch screen
  • Resolution: 1024*600
System on Module parameters
  • Appearance: stamp hole
  • System on Module size: 50mm*66mm*3mm     [the smallest size in SOM field]
  • Pin patch: 1.1mm
  • Foot pad size: 1.3mm*0.7mm
  • Pin numbers: as many as 204 pin
  • Craft: 8 layers in immersion gold design, PCB manufactured in Taiwan-Capital Enterprises    [Sole supports]
  • CPU: RK3288, quad core, ARM Cortex-A17, 1.8GHz frequency, to be treated as the most promising ARM processor
  • Memory: use single channel, 2GB DDR3, can be custom to 4GB DDR3
  • Flash: support 8GB/16GB/32GB emmc, standard 8GB emmc
  • Power IC: RK818, support dynamic frequency    [Sole supports]
  • Ethernet: Gigabit Ethernet RTL8211E     [Sole supports]

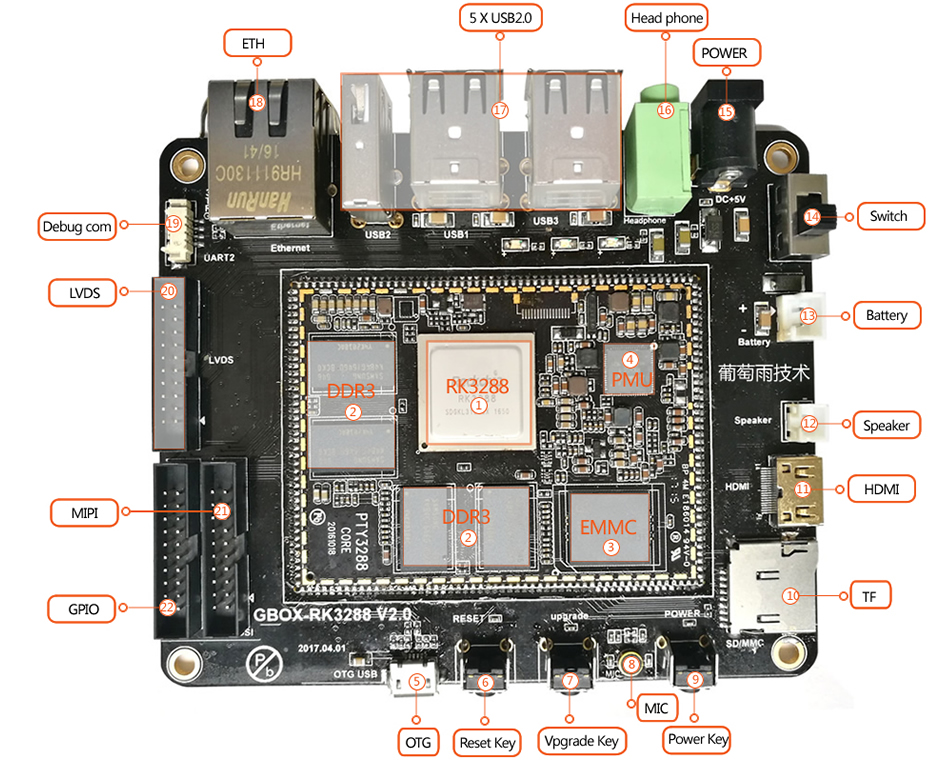

Hardware interface
  • 【1】CPU:RK3288,ARM Cortex A17,4*1.8GHz
  • 【2】Memory:DDR3,2GBytes
  • 【3】EMMC:eMMC,8GBytes
  • 【4】PMU:Power management, RK818
  • 【5】OTG:OTG interface
  • 【6】RESET KEY:RESET KEY
  • 【7】UPGRADE KEY:upgrade/return key
  • 【8】POWER KEY:POWER KEY
  • 【9】TF card:TF card slot
  • 【10】HDMI:HDMI interface
  • 【11】MIC:Recording MIC
  • 【12】Battery:Battery slot
  • 【13】Debug com:Debug com
  • 【14】Speaker:Speaker slot
  • 【15】Speaker:Speaker slot
  • 【16】POWER:12V power jack
  • 【17】Head phone:Earphone interface
  • 【18】5 x USB2.0:5 USB2.0 interface
  • 【19】ETH:ETH socket
  • 【20】LVDS:LVDS interface
  • 【21】Backlight:Backlight interface
  • 【22】TP:Touch interface
  • 【23】GPIO:Touch IO interface
  • 【24】MIPI CSI:MIPI display interface
  • 【25】WIFI ANT:Wifi antenna interface
Hardware backside interface
  • 【1】MIPI CSI:MIPI camera interface
  • 【2】Audio codec:Audio chip
  • 【3】WIFI/BLUETOOTH:Wifi/bt chip, AP6335
  • 【4】ETH:ETH chip
  • 【5】DVP camera:parallel camera interface

Support Android5.1, Linux+qt, Ubuntu OS. It can be used in tablet, electric power, medical, media, security, automotive, handheld devices, POS, game consoles and so on.

Bootloader
  • u-boot.bin
  • Version: u-boot-2014.07
  • Main functions:
  • 1、Support eMMC erase, read and write
  • 2、Support bootm and bootargs settings
  • 3、Support print, setting, save environment variable
  • 4、Support memory content display, comparison, modify
  • 5、Support USB images download; SD offline upgrade(provide related source code)
Kernel and devices drivers program
  • Kernel: Linux 3.4.39
  • System clock: system CPU: 1.4GHz
  • Memory: run 1GB/2GB
  • Display driver: 7”(1024*600) driver(provide related source code, other size screen are available, MIPI, LVDS interface screen)
  • TOUCH: touch screen driver(provide related source code, support different touch IC)
  • HDMI: HDMI v1.4 (provide related source code)
  • MFC: multi-media hardware encoding/decoding driver(provide related source code)
  • ROTATOR: screen rotate driver(provide related source code)
  • TF cars: 2 interfaces(provide related source code)
  • HSMMC: SD/MMC/SDIO driver(provide related source code)
  • SPI: SPI driver(provide related source code)
  • KEYBD: button driver program(provide related source code)
  • AUDIO: audio driver(provide related source code)
  • DMA: DMA driver (provide related source code)
  • RTC: real time clock driver(provide related source code)
  • JPEG: JPEG hardware encoding/decoding driver(provide related source code)
  • 2D: 2D hardware accelerate driver(provide related source code)
  • 3D: 3Dhardware accelerate driver(provide related source code)
  • I2C TP driver: I2C capacitive touch driver(provide source code)
  • PWM backlight driver: PWM backlight driver(provide source code)
  • USB driver: USB driver(provide source code)
  • Serial port driver: Serial port driver(provide source code)
  • Ethernet driver: Ethernet driver(provide source code)
  • WIFI driver: WIFI driver
  • Camera driver: 5MP camera driver(provide source code)
  • Bluetooth driver: Bluetooth module driver(provide source code)
  • 3G driver: 3GNetwork Card driver(provide source code) optional
  • GPS module: provide source code optional
android5.1 source code with cross tool chain:
  • arm-2009q3.tar.bz2: cross tool chain
Applications:
  • arm-2009q3.tar.bz2: cross tool chain
  • Clock: can set time, ring tone choices
  • Calculator
  • Camera
  • Phone
  • Email
  • Settings: different kinds of application and services settings
  • Browser: support web page zoom in, out etc.
  • Audio player
  • Messaging
  • Gallery: Image view control, which supports image zooming, on one piece and the next, powerpoint, share, rotation, cutting, and image information.
VmWare 7.0+Ubuntu14.04
  • VmWare 7.0: Windows XP virtual machine Ubuntu14.04: develop environment
  • Ubuntu14.04: develop environment

Packing list

Standard accessories:
  • G3288 development board(7” 1024*600 capacitive touch screen included)
  • 5V/2A power adapter
  • Serial cable
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
