  • PX30
  • GR30
  • System on Module
  • CPU:RK PX30 ( A35 quad core 1.3GHz )
  • Goods in the high-quality, and absolutely stable and reliable.
  • Best Size, Strong expandability, more 144 PIN 45 mm* 45mm*3mm
  • CPU
    1.3GHz*4
  • DDR3
    1G
  • EMMC
    8G

The King of Quad core

1GB RAM as standard, and 2GB optional.

  • A35 Quad Core CPU

    ARM Cortex-A35 and 1.3Ghz Quad Core



    A17 Quad Core CPU
  • 2GB RAM, 32GB Emmc






    4GB Emmc, 32GB Memory
  • Independence Power Management

    Takes RK809
    which could be insure it works stable.


    Independence Power Management
  • Android 8.1 Operating System

    Android 8.1 Operating System




    Android 5.1 Operating System

GR30 System on Module (shorts for GR30 SOM) Introduction:

GR30 SOM takes Rockchip PX30 ( A35 quad core ) CPU, 1.3GHz, integrated Mali-G31 graphics processor, support OpenGL ES3.2, Vulkan 1.0, OpenCL2.0, to come out 1080p 60fps H.264 and H.265 vedio hard decoding.



More equipped with 1GB/2GB DDR3, 8GB/16GB/32GB eMMC higg-speed storage, independent power management system, strong network expansion capability, rich display interface, support Android 8.1, Linux, Ubuntu operating system, which make its features and experience work best.



And the company have designed and producted its carrier board too.



Checking PX30 Development Board Instruction>>






GR30 SOM Features Details:

GR30 SOM Features Details:
  • Best Size; 45mm*45mm*3mm
  • RK809 power management system
  • Kinds of eMMC, 8GB eMMC as default
  • Single DDR3 channel, 1GB RAM as default, and 2GB customized
  • Power wake-up
  • Android 8.1, Linux, Ubuntu OS
  • Gigabit wired Ethernet
  • 144 PIN out, includes all PIN of CPU
  • Rich display interface, double screen show

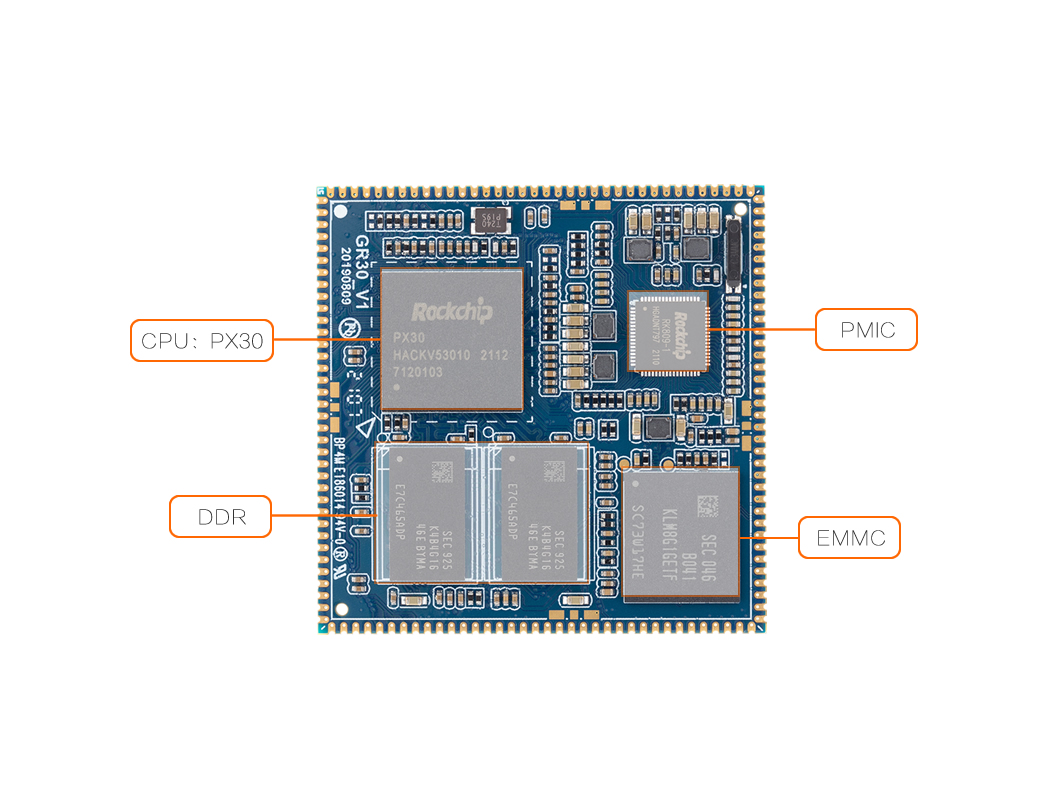

核心板接口

应用领域

Structure Parameter

Structure Parameter
  • Appearance:Stamp hole
  • System Dimension:45mm*45mm*3mm
  • Pin Pitch:1.2mm
  • Pin Quantity:144 PIN
  • Layer:8 layers immersion gold designed
System Configuration
  • CPU:RK PX30, cortex A35 quad core 1.3 GHz
  • RAM:DDR3, 1GB as standard, and 2GB customized
  • Storage: 4GB/8GB/16GB/32GB eMMC optional, 8GB as standard.
  • Power IC:RK809
  • Graphics Processor: Mali-G31, support OpenGL ES3.2, Vulkan 1.0, OpenCL2.0, to come out 1080p 60fps H.264 and H.265 video hard decoding
Interfaces Parameter
  • Display: RGB, LVDS, MIPI interface output
  • Touch: Capacitive touch, and USB or serial port expansion resistive touch
  • Audio: AC97/IIS interface, supports record and play
  • SD: Single SDIO output channel
  • EMMC: eMMC onboard, no other pin out
  • Ethernet: 100M Ethernet
  • USB HOST: Double channels HOST2.0
  • USB OTG: Single OTG 2.0
  • UART: Six channels, support serial port with flow control
  • PWM: Eight channels
  • IIC: Four channels IIC output
  • SPI: Double channels output
  • ADC: Three channels output
  • Camera: Single MIPI CSI input
Electrical Features
  • Input Voltage:4.2V-5V
  • Output Voltage: 1.8V/3V/3.3V/5V
  • Storage Temperature: --30--80C
  • Working Temperature: -20--70C


GR30 SOM Appearance

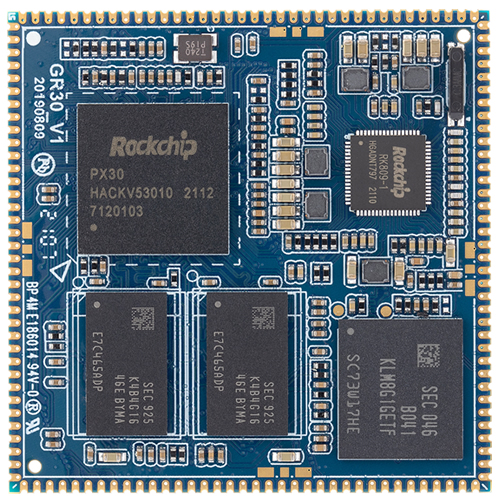

GR30 SOM Front
  • GR30 SOM Front

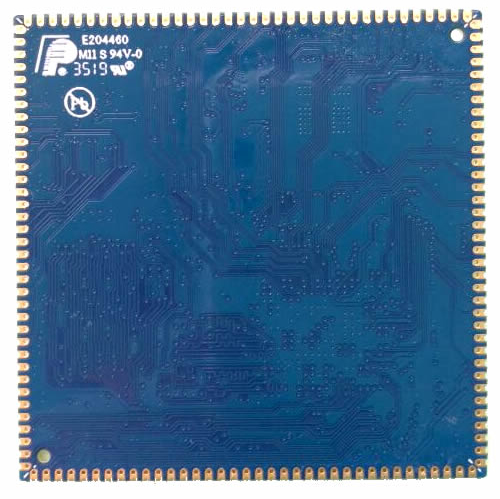

GR30 SOM Back
  • GR30 SOM Back
