  • PX30
  • PX30
  • Development Board
  • CPU:PX30 (ARM Cortex-A35)
  • Onboard 4G LTE, OTG, USB2.0, 100M Ethernet, WIFI, bluetooth
  • The system on module uses 8-layer process design, ensure reliability and stability
  • CPU
    1.3GHz*4
  • DDR3
    1G
  • EMMC
    8G







 The most cost-effective quad core

●Super Cortex-A35  ●max to 1.3GHz  ●stable  ●long supply

Brief Introduction

PX30 development board is based on Rockchip PX30(64bit quad core A35) platform, which is designed by Shenzhen Graperain Technology Co., Ltd..



PX30 development board consists of PX30 stamp hole SOM and carrier board.



PX30 system on module is based on Rockchip PX30 64 bit quad-core A35 processor. The frequency is up to 1.3GHz. Integrated with ARM Mali-G31 graphics processor, supports OpenGL ES3.2, Vulkan 1.0,OpenCL2.0, 1080p 60fts, H.264 and H.265 video decoding. It is designed with 1GB/2GB DDR, 8GB/16GB/32GB eMMC,



PX30 carrier board Interfaces: 4G LTE, OTG, USB2.0, 100M Ethernet, WIFI, bluetooth, audio/video input/output , G-Sensor, RGB, LVDS, MIPI, MIPI camera, TF card slot, extended GPIO.



It supports Android, Linux and Debian. Source code are open.



Applications: high-definition display with advertising machine, vending machines, teaching terminals, automatic identification, robotics, security monitoring, financial POS, vehicle control terminals, VR, etc.. With the development board to test, it will accelerate product develop time.



GR30 SOM size:45 mm* 455mm    GR30 carrier board size:186.5mm * 115.6 mm    Check PX30 SOM features>>





应用领域




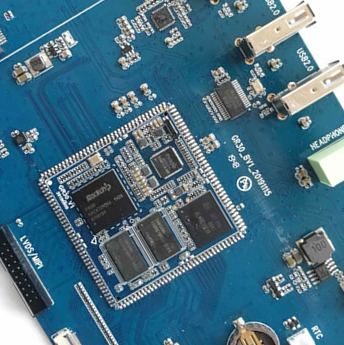

PX30 development board features

The product features
  • Size: 186.5mm*115.6mm, can be used in final product.
  • Powerful functions, rich interfaces, wide applications.
  • Supports Android8.1, Linux, Debian. Source code open, accelerate develop time.
  • Stable and reliable board.


Development board size


Development board size

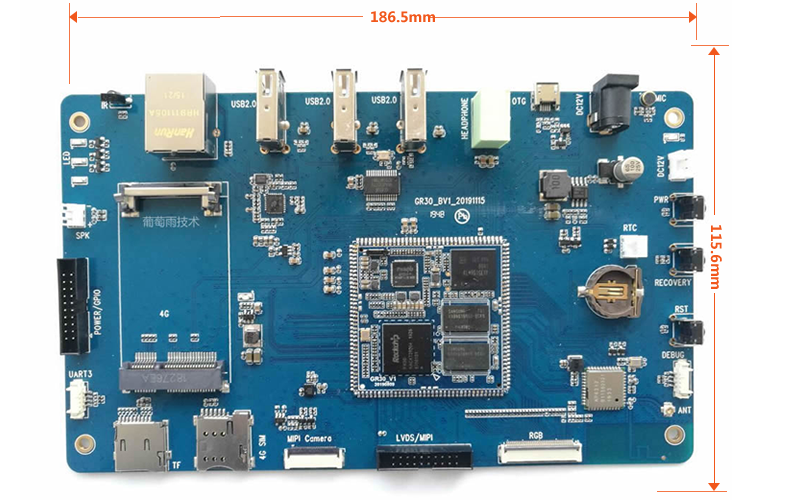

Development board interfaces 1


Development board interfaces 1

Parameters

Parameters
  • Appearance: Stamp hole SOM + carrier board
  • Size: 186.5mm*115.6mm
  • Layer: SOM 8-layer/carrier board 4-layer
System on Module parameters
  • CPU: Rockchip PX30
  • Frequency: Cortex A35 quad core 1.3GHz
  • RAM: standard 1GB, can be custom to 2G
  • eMMC: 4GB/8GB/16GB/32GBeMMC optional, standard 8GB
  • Power IC: RK809
  • Graphic and video processor : Mali-G31, support OpenGL ES3.2, Vulkan 1.0, OpenCL2.0, 1080p 60fps H.264 and H.265 video decoding
Interfaces parameters
  • Display: RGB, LVDS, MIPI
  • Touch: Capacitive touch, can use USB or UART to extend resistive touch
  • Audio: AC97/IIS, support record and play
  • SD: 1 channel SDIO
  • eMMC: On board eMMC
  • Ethernet: 100M
  • USB HOST :3 channel HOST2.0
  • USB OTG: 1 channel OTG2.0
  • UART: 2 channel uart, support flow control uart
  • PWM : 2 channel PWM output
  • IIC : 4 channel IIC output
  • SPI :1 channel SPI output
  • ADC :2 channel ADC
  • Camera :1 channel MIPI CSI
  • MIPI :1 channel MIPI TX (LVDS multiplexing)
  • LVDS :1 channel lvds (MIPI TX multiplexing)
Electrical characteristics
  • Input Voltage: 12V/2A
  • Output Voltage: 12V/5V/3.3V
  • Storage temperature: -30~80 degree
  • Working temperature: -20~70 degree

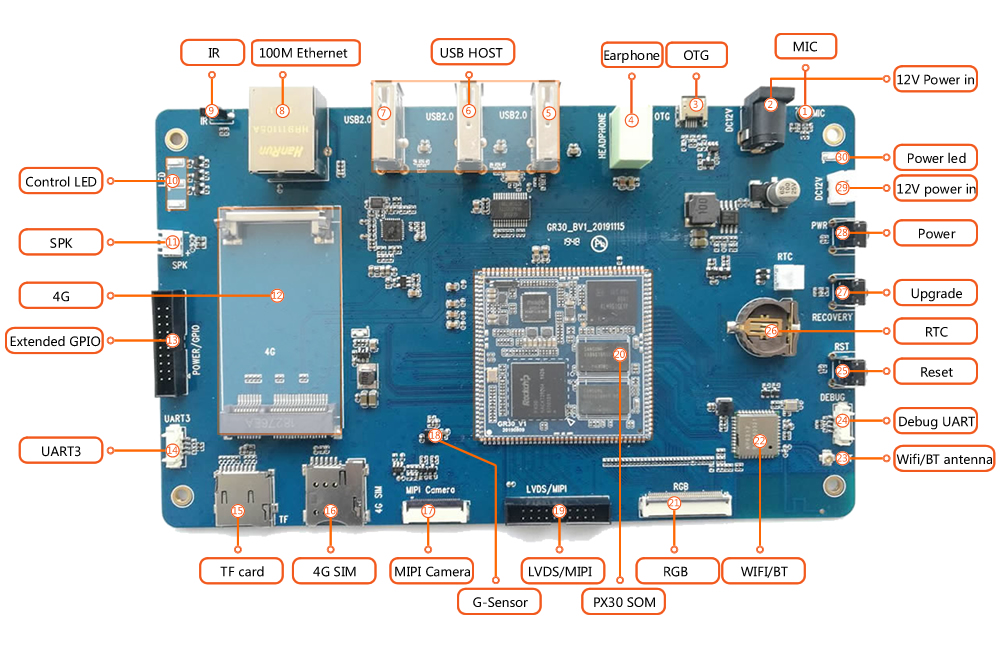

Hardware interface
  • 【1】MIC Audio input
  • 【2】12V Power in
  • 【3】OTG Micro USB
  • 【4】Audio earphone output
  • 【5】USB2.0 host
  • 【6】USB2.0 host
  • 【7】USB2.0 host
  • 【8】RJ45 100M Ethernet
  • 【9】IR receive
  • 【10】Gpio control led on/off
  • 【11】speaker output
  • 【12】PCIE 4G module
  • 【13】POWER/GPIO expansion
  • 【14】Uart3, ttl level
  • 【15】TF card slot
  • 【16】4G sim card slot
  • 【17】MIPI Camera
  • 【18】G-Sensor
  • 【19】LVDS/MIPI lcd
  • 【20】PX30 SOM GR30
  • 【21】RGB
  • 【22】WIFI/BT module AP6212
  • 【23】Wifi/BT antenna, including onboard and socket
  • 【24】Debug UART
  • 【25】Reset
  • 【26】RTC
  • 【27】upgrade
  • 【28】Power
  • 【29】12V power in, 2pin connector
  • 【30】Power led
Others
  • OS: Android8.1, Linux and Debian.
  • Custom service: PX30 SOM, custom hardware + software + OEM/ODM
Applied area
  • high-definition display with advertising machine, vending machines, teaching terminals, automatic identification, robotics, security monitoring, financial POS, vehicle control terminals, VR, etc.. With the development board to test, it will accelerate product develop time.

Packing list

Standard accessories:
  • PX30 stamp hole development board
  • 12V/2A power adapter
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.

PX30 products





Follow us


Contacts
Shenzhen Graperain Technology Co., Ltd.
Tel: +86-755-2302 5312
Fax: +86-755-2302 5312-8006
Email: [email protected]
Post Code: 518000

Address: Room 5005B, East Laobing Building, Xingye Rd 3012th, Xixiang, Bao'an Dist., Shenzhen

Open Hours:9:00 am to 18:00 pm on Monday Tuesday Wednesday Thursday Friday
