The King of octa core
1GB RAM as standard, and 2GB optional.
- A53 Octa Core CPU
ARM Cortex-A53 and 1.4Ghz+ Octa Core
- 2GB RAM, Max eMMC 32GB
DDR3 Dual Channels
- X-powers Power Management
Takes AXP228 PMU
- Android 5.1 OS
Android 5.1 OS
Shenzhen Graperain Technology Co., Ltd.
ARM based Development Boards and Modules with ARM9, ARM11, Cortex-A8, Cortex-A9
- Samsung S5P6818 System on Module
- Samsung S5P6818 system on module takes stamp hole. It is of strong expandability, and supports 184 PIN, 1.4GHz. Its PCB designed 8 layers in immersion gold, which is of the best electrical specification and anti-interference characteristic and stable features. More it inland PMU and coulombmeter charging.
- Customized solution with G4418 system on module for reference.
I want to customize service.>> - Viewed：7899
- More Information
- S5P6818
- System on Module
- CPU:S5P6818 (ARM Cortex-A53)
- Bulk order is acceptable, and quality will be insured.
- G4418 system on module is of the smallest size and insure GPIO intefaces inland meanwhile, size 52mm x 52mm x 3mm.
- CPU1.4GHz*8
- DDR31G
- EMMC8G
Product instruction
Samsung S5P6818 system on module takes stamp hole. It is of strong expandability, and supports 184 PIN, 1.4GHz. Its PCB is designed 8 layers in immersion gold, which is of the best electrical specification and anti-interference characteristic and stable features. More it Onboard PMU and coulombmeter charging. The system on module could be used MID, POS, PDA, PND, smart home, phone, learning machine, game machine and other kinds of industrial control filed.
S5P6818 system on module takes 28nm craftsmanship, built-in high performance A53 ARM Octa Core architecture. S5P6818 supports mostly format video decoding, and Onboard LVDS and RGB double channels display control interface. Its resolution ratio is 2048*1280. Meanwhile it integrates the Gigabit Ethernet controller inside. About electrical level, S5P6818 is 3.3V GPIO, more convenient for development products.
With its excellent performances, SOM cooperate with G6818 carrier board, S5P6818 SOM will present most of the functions of the SoC itself. This also saves develop time for customers. G6818 development board was designed by considering the chipset features and many actual applications. Its full expansions in the development board has saved cost and time for future develop.
G6818 System on Module Features:
- The smallest size: 52mm x 52mm, and ensure GPIO interfaces Onboard
- Takes AXP228 PMU power management and keep work stable
- Supports kinds of eMMC, Toshiba 8GB eMMC as default ( 19nm MLC craft )
- Takes single channel DDR3, and 1GB as default. 2GB as optional
- Supports power sleep wake up
- Supports Android 5.1. Linux + qt, Ubuntu OS
- Onboard the Gigabit Ethernet
- Unique Power Design
- G6818 system on module takes AXP 228 power managements, which could keep it work more stable.
The design provide two ways of charging. One through 5V/2A power input, and power supply for PIN 55/56; The other through 3.5V to 4.2v Li-battery, and power supply for PIN49/50. And two ways could work contemporarily, the system on module supports battery chip onboard and manage all power on/off.
- 184 PINs
G6818 system on module could pin out mostly cpu resource. And it could be used MID, POS, PDA, PND, smart home, phone, learning machine, game machine and other kinds of industrial control filed.
Shenzhen Graperain Technology Co., Ltd. have integrated all its features into G6818 system on module yet. Customers only need to design the two or four layer carrier board, can realize high-end octa core product design.

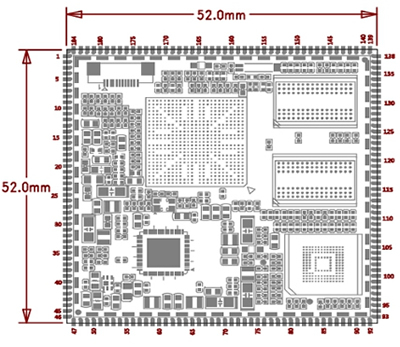

- Size and PIN details of G6818 System on Module
Size: 52 mm x 52 mm x 3mm
Onboard PMU, and coulombmeter charging
System on Module parameters
Structure:
- Appearance: stamp hole
- System on Module size: 52mm*52mm*3mm
- Pin patch: 1.1mm
- Foot pad size: 1.3mm*0.7mm
- Pin numbers: as many as 184 pin
- Craft: 8 layers in immersion gold design, PCB manufactured in Taiwan-Capital Enterprises ［Sole supports］
System configurations:
- CPU: S5P6818, octa core, ARM Cortex-A53, 1.4Ghz
- RAM: standard 1GB, 2G optional
- Flash: 4GB/8GB(Default)/16GB/32GB emmc
- Power IC: AXP228, DVFS, coulombmeter
- Ethernet: RTL8211E, the gigabit Ethernet PHY
Interface parameters:
- LCD: TTL, LVDS, MIPI ［Sole supports］
- Touch: Capacitive screen, resistive screen
- Audio: AC97/IIS, supports record and play
- SD card: 2 Channel SDIO output channel
- eMMC: Onboard eMMC, no extra pin leaded
- Ethernet: The Gigabit Ethernet PHY
- USB host: 1 Channel HOST2.0, 1 Channel HSICHSIC ［Sole supports］
- USB OTG: 1 Channel OTG2.0
- UART: 5 channel supported, 3 Channel serial ports lead out, Flow control
- PWM: 4 Channel PWM output
- IIC: 3 Channel IIC output
- SPI: 1 Channel SPI output
- ADC: 8 Channel supported, 3 channel ADC lead out
- Camera: 1 Channel BT656/BT601, 1 Channel MIPI CSI ［Sole supports］
- HDMI: HD audio and video output interface, audio and video synchronization output ［Sole supports］
- VGA: use LCD output to expand
- Boot config. : No, the system on module boot automatically
Electrical Features
- Input voltage 3.7V~5.5V (suggest 5V output)
- Output voltage 3.3V/4.2V (carrier board power and battery)
- Working temperature: -20~80 ℃ ［Sole supports］
- Storage temperature -20~80 ℃

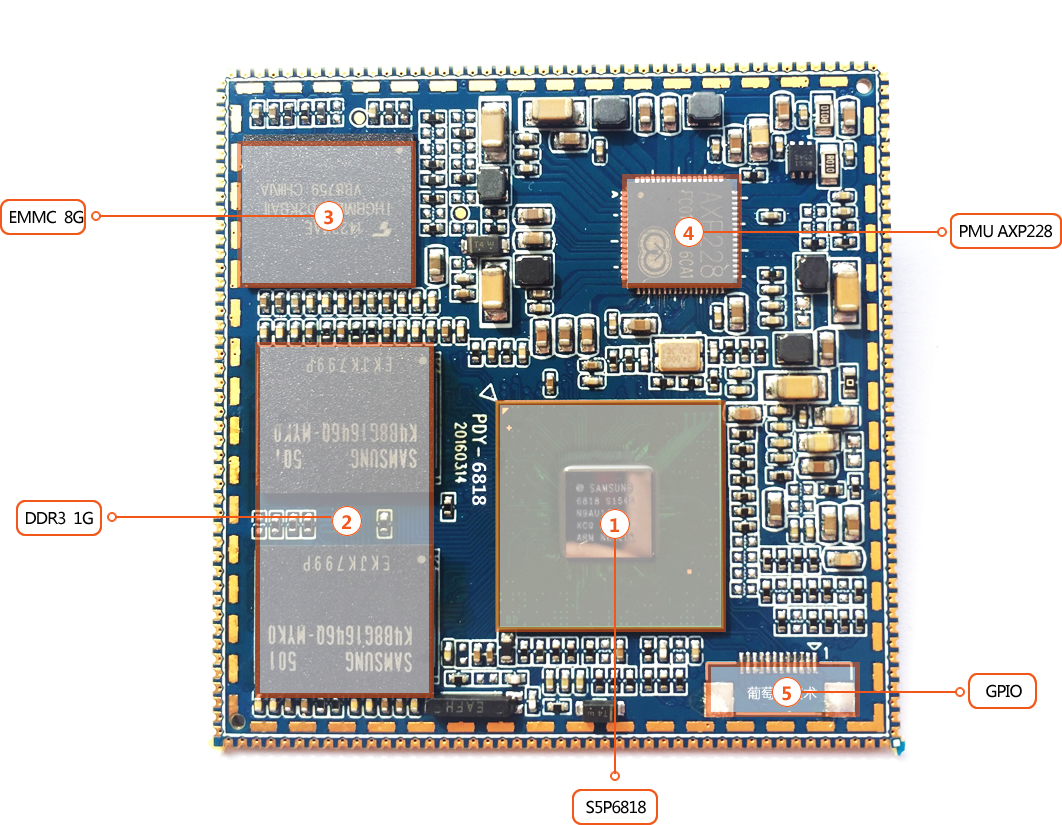

System on module appearance

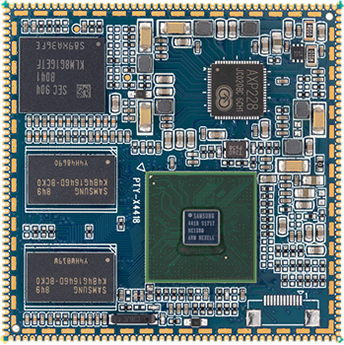

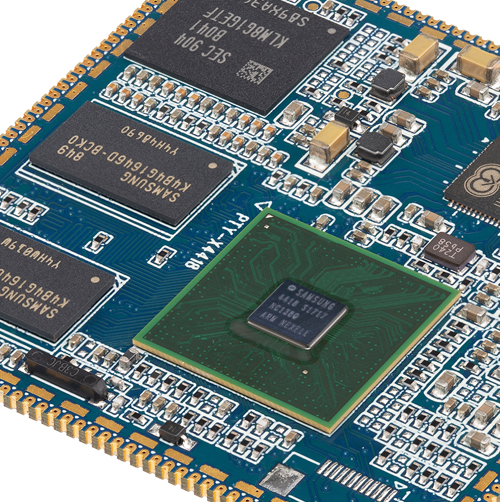

System on module Real View
System on module panel

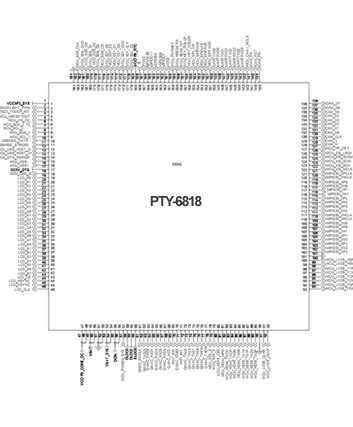

Core board pin definitions
Core board pin definitions 01
Pin#
Signal
instructions
1
VCC3P3_SYS
2
MCU_BACKLIGHT_PWM
3
MCU_TOUCH_INT
4
MCU_NRESETOUT
5
MCU_VG_EN
6
MCU_SDA_2
7
MCU_SCL_2
8
MCU_SDA_1
9
MCU_SCL_1
10
USBHSIC_DATA
11
USBHSIC_STROBE
12
MCU_USB_HOST_D-
13
MCU_USB_HOST_D+
14
MCU_OTG_PWRON
15
MCU_USB-
16
MCU_USB+
17
DC5V_OTG
18
MCU_USB_ID
19
LCD_R0
20
LCD_R1
21
LCD_R2
22
LCD_R3
23
LCD_R4
24
LCD_R5
25
LCD_R6
26
LCD_R7
27
LCD_G0
28
LCD_G1
29
LCD_G2
30
LCD_G3
31
LCD_G4
32
LCD_G5
33
LCD_G6
34
LCD_G7
35
LCD_B0
36
LCD_B1
37
LCD_B2
38
LCD_B3
39
LCD_B4
40
LCD_B5
41
LCD_B6
42
LCD_B7
43
LCD_DE
44
LCD_HSYNC
45
LCD_VSYNC
46
LCD_CLK
47
VCC1P0_CORE_DC
48
VCC1P0_CORE_DC
49
VBAT
50
VBAT
51
GND
52
GND
53
VBAT_SYS
54
VBAT_SYS
55
DCIN
56
DCIN
57
MCU_PWREN_SYS
58
DLDO3
59
DLDO2
60
ELDO3
61
GMAC_RXCLK
62
GMAC_TXCLK
63
GMAC_RXD0
64
GMAC_RXD1
65
GMAC_RXD2
66
GMAC_RXD3
67
GMAC_RXDV
68
GMAC_MDC
69
PHY_RST
70
GMAC_MDIO
71
PHY_INT
72
GMAC_TXD3
73
GMAC_TXD2
74
GMAC_TXD1
75
GMAC_TXD0
76
GMAC_TXEN
77
GMAC_TXER
78
MCU_SCL_0
79
MCU_SDA_0
80
MCU_HDMI_CEC
81
MCU_HDMI_HPD
82
MCU_HDMI_TXCN
83
MCU_HDMI_TXCP
84
MCU_HDMI_TX0N
85
MCU_HDMI_TX0P
86
MCU_HDMI_TX1N
87
MCU_HDMI_TX1P
88
MCU_HDMI_TX2N
89
MCU_HDMI_TX2P
90
GND
91
MCU_LVDS_CLKM
92
MCU_LVDS_CLKP
Core board pin definitions 02
Pin#
Signal
instructions
93
MCU_LVDS_Y3M
94
MCU_LVDS_Y3P
95
MCU_LVDS_Y2M
96
MCU_LVDS_Y2P
97
MCU_LVDS_Y1M
98
MCU_LVDS_Y1P
99
MCU_LVDS_Y0M
100
MCU_LVDS_Y0P
101
GND
102
MIPIDSI_DP3
103
MIPIDSI_DN3
104
MIPIDSI_DP2
105
MIPIDSI_DN2
106
MIPIDSI_DP1
107
MIPIDSI_DN1
108
MIPIDSI_DP0
109
MIPIDSI_DN0
110
MIPIDSI_DPCLK
111
MIPIDSI_DNCLK
112
MIPIDSI_DN3
113
MIPIDSI_DP3
114
MIPIDSI_DN2
115
MIPIDSI_DP2
116
MIPIDSI_DN1
117
MIPIDSI_DP1
118
MIPIDSI_DN0
119
MIPIDSI_DP0
120
MIPIDSI_DNCLK
121
MIPIDSI_DPCLK
122
MCU_I2S_MCLK
123
MCU_I2S_BCK
124
MCU_I2S_SDIN
125
MCU_I2S_SDOUT
126
MCU_I2S_LRCK
127
MCU_HP_DET
128
CAM_H
129
CAM_V
130
CAM_CLK
131
CAM_D0
132
CAM_D1
133
CAM_D2
134
CAM_D3
135
CAM_D4
136
CAM_D5
137
CAM_D6
138
CAM_D7
139
CAM_PD
140
CAM_RST
141
CAM_PN
142
MCU_CAM1_MCLK
143
UARTRXD3
144
UARTTXD3
145
UARTRXD2
146
UARTTXD2
147
UARTRXD1
148
UARTTXD1
149
UARTRXD0
150
UARTTXD0
151
MCU_SPITXD0
152
MCU_SPIFRM0
153
MCU_SPICLK0
154
MCU_SPIRXD0
155
MCU_SPI_WP
156
MCU_KEY_VOLDN
157
MCU_KEY_VOLUP
158
MCU_SEN0_INT
159
MCU_NRSETIN
160
MCU_PWRKEY
161
ADC0
162
GPIOC7
163
GPIOB8
164
GPIOB9
165
GPIOC11
166
GPIOA28
167
PWM2
168
IR
169
VCC1P8_RTC
170
MCU_SD1_CD
171
MCU_SD1_CLK
172
MCU_SD1_CMD
173
MCU_SD1_D0
174
MCU_SD1_D1
175
MCU_SD1_D2
176
MCU_SD1_D3
177
MCU_SD0_CD
178
MCU_SD0_D3
179
MCU_SD0_D2
180
MCU_SD0_D1
181
MCU_SD0_D0
182
MCU_SD0_CMD
183
MCU_SD0_CLK
184
GND
Core board pin definitions 03
pin definitions

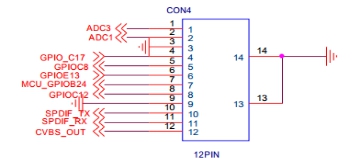

- Extended IO, the following part of g4418 core board: 9 Available IO. (There is no CVBS_OUT on G4418, leads on G6818 core board )
