  • S5P6818

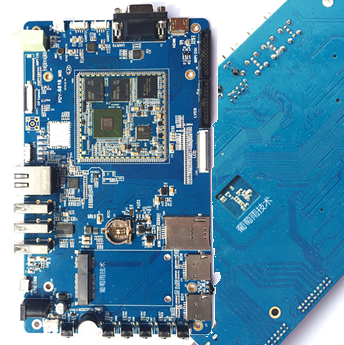

  • Development Board
  • CPU:S5P6818 (ARM Cortex-A9)
  • S5P6818 development board supports Android 5.1, Linux + Qt, and Ubuntu OS
  • And takes AXP288 as power management to insure the board work stable.
  • CPU
    1.4GHz*8
  • DDR3
    2G
  • EMMC
    8G
  • G6818 development board supports Wifi, Bluetooth, GPS, and 3G/4G
  • The board inland GPS, 3G/4G, Sensor and so on, and it supports wifi, Bluetooth, DVP camera and CSI camera.


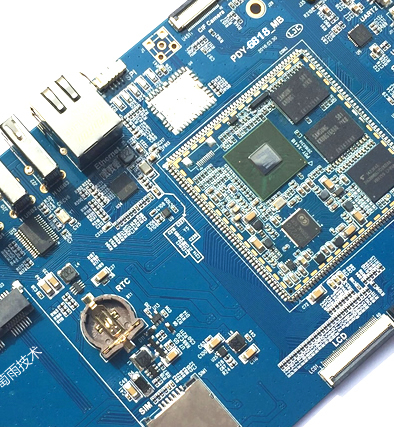

    G6818 system on module have been designed 8-layer board, which could be sure it works stably. And the system on module could be used in tablet pc, learning machine, game machine and other kinds of industrial control filed.

  • Abundant Software Source, and Multi-System Supported
  • G6818 development board supports Android 5.1, Linux+ Qt, and Ubuntu OS. And the board supports the Gigabit Ethernet.

    And LVDS interface, MIPI interfaces and PCIE interface onboard. Also it supports software power switch and dormancy awake. Its LCD display takes 7inch TFT as default, and 4.3inch or 5inch as optional. The board supports backlight adjustable too. In a word, this G6818 development board is designed for engineers to testing and developing .


  • G6818 development board is of abundant interfaces and full functions.
  • G6818 development board supports the gigabit Ethernet. And LVDS interface, MIPI interfaces, PCIE interface , SPI interface, HDMI interface, DVP camera interface, CSI camera interface, and 3G/4G SIM interface onboard. Also it supports software switch and power sleep wake up.


    Shenzhen Graperain Technology Co., Ltd. have integrated all its features into G6818 system on module yet. The clients just design 2 or 4 layers carrier PCB board meeting your product will be ok.








Features Comparsion Between S5P4418/S5P6818 Chip

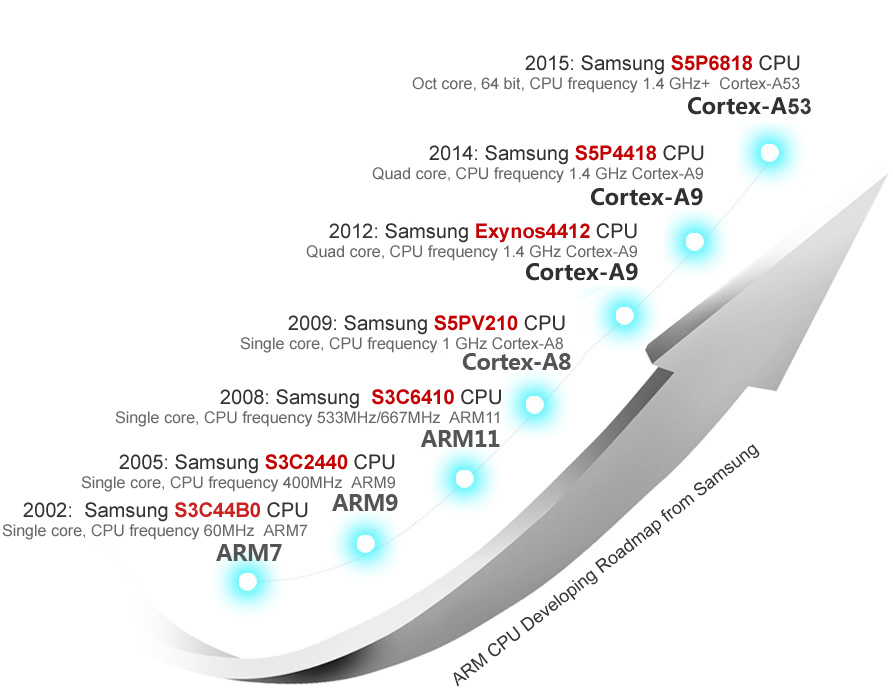

As octa core processor become more popular, either mainstream consumer platform or industrial platform users are using 8 core to update. Final products are successfully developed based on S5P6818 by either small and medium-sized enterprise or brand companies. Graperain G6818 development board is the hot octa core board with varied configurations and cost effective.

  Processor model     S5P4418   S5P6818
  Market time 2014 2014
  Processing Technology 28 nm 28 nm
  CPU 1.4 GHz 1.4 GHz+
CPU framework Cortex-A9 quad-core Cortex-A53 octa-core

cache capacity

32KB*4 I/D cache,1MB level 2 cache

32KB*4 I/D cache,1MB level 2 cache

DDR3 interface LPDDR1, LPDDR2, DDR2 and DDR3 LPDDR1, LPDDR2, DDR2 and DDR3

DDR3 interface

Single-channel 32-bit data bus, 800MHz operating frequency

Single-channel 32-bit data bus, 800MHz operating frequency

EMMC 8GB(Default)/4GB/16GB(Optional) emmc 8GB(Default)/4GB/16GB(Optional) emmc
multimedia decoder

H.263,H.264,MPEG1, MPEG2,MPEG4,VC1,VP8,Theora,AVS,RV8/9/10,MJPEG(Almost all formats)

H.263,H.264,MPEG1, MPEG2,MPEG4,VC1, VP8,Theora,AVS,RV8/9/10,MJPEG(Almost all formats)

Multimedia coding

H.263,H.264,MPEG4,MJPEG

H.263,H.264,MPEG4,MJPEG

Display interface RGB, MIPI, LVDS RGB, MIPI, LVDS
Maximum display resolution

2048*1280

2048*1280

GPIO level 3.3V 3.3V
Ethernet Interface

Gigabit Ethernet

Gigabit Ethernet

ADC

8 channel 12bit 0-1.8V

8 channel 12bit 0-1.8V

USB interface

1channel HSIC,1 channel HSIC,1 channel OTG

1 channel HSIC,1 channel HSIC,1 channel OTG

Slim bus

no supports

no supports

C2C

no supports

no supports

GPS

no supports

no supports

ISP

no supports

no supports

Chip ID

Support the only 128bit ID number

Support the only 128bit ID number

OS Support Android, Linux+QT,ubuntu Android, Linux+QT,ubuntu




Based on aboving list, you will find both S5p4418 and S5P6818 have same manufacturing technique, level two cache, and pin definition, but differents on kernel. S5p6818 CPU frequency is 1.4 G+, higher than S5P4418. In this way, the board have been updated well but hardware keep same version, which will save cost on its base board.

Shenzhen Graperain Technology Co., Ltd. first to launch S5P6818 development platform, it is equipped with a complete and stable software android 5.1 operating system (linux + qt, ubuntu system optional), uses AXP228 launched by x-powers as the power management chip to ensure 4418 work stable and reliable.

Checking S5p6818 Single Board Computer Instruction>>

Checking S5p6818 System On Module Instruction>>





The Most Cost Effective Oct Core System on Module

●Oct Core CPU  ●the Gigabit Ethernet  ●PMU  ●Single Channel DDR  ●Super Performance  ●Super Stability  ●Delivery Cycle long

Both S5p4418 and S5P6818 have same manufacturing technique, level two cache, and pin definition, but differents on kernel. S5p6818 CPU frequency is 1.4 G+, higher than S5P4418.


产品简介

G6818 development board contains of stamp hole system on module, base board and LCD board. Its system on module designed 8-layer PCB board which insured its stability. And its base board is of rich peripherals, which can demonstrate all features of G4418 system on module. It supports the Gigabit Ethernet. And LVDS interface, MIPI interfaces and PCIE interface onboard.



Also it supports software power switch and dormancy awake. And the LCD takes 7inch TFT as default, and 4.3inch or 5inch as optional. The board supports backlight adjustable too.

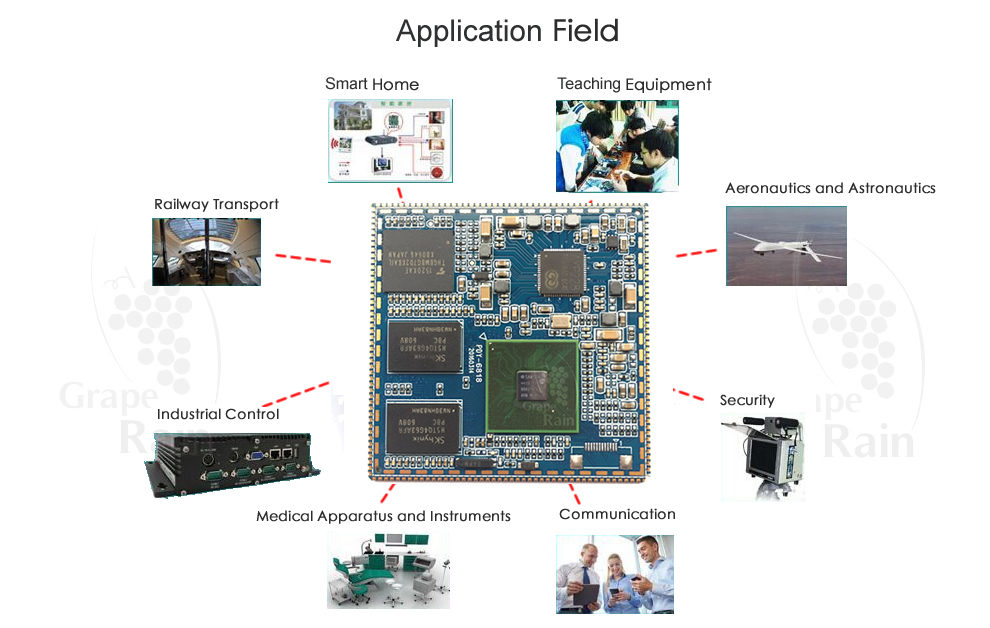

G6818 system on module is suitable for industrial control, electric power, communication, medical treatment, media, security, car, finance, consumer electronics, handheld devices, game consoles, display control, teaching instruments and other fields. Can be widely used in POS, game consoles, teaching experimental platform, multimedia terminals, PDA, a la machine, advertising and other fields.



G6818 system on module size:52mm*52mm    G6818 development board base board size::185mm*110mm
Checking S5p6818 system on module instruction>>






Product Features

Product Features
  • Kernel:ARM Cortex-A53 Oct-core;
  • Frequency:1.4GHz*8;
  • RAM:1GB/2GB DDR3(Optional),standard 2GB;    [optional]
  • Flash: Support 4GB/8GB/16GB EMMC optional, standard 8GB emmc;    [optional]
  • 24-bit RGB interface;
  • 8-bite LVDS interface;
  • 3-channel USB HOST interface, support connecting multi USB devices simultaneously;
  • USB OTG interface;
  • 1 RS232 interface; 2 TTL interface;
  • 2 TF card interface;
  • 4 LED indicators;
  • Reset button;
  • Software on/off button;
  • Onboard external speaker;
  • MIC input connector;
  • Earphone output connector;
  • Support free start-up configuration switch;
  • Backlight multi-level adjustment;
  • Support HDMI interface;
  • Support 5-point capacitive touch control;
  • Support USB WIFI;
  • Support USB Bluetooth;
  • Support G-sensor;
  • Support peripheral expansion using various interfaces, such as SPI, I2C, UART, etc.
  • Support MPEG2/MPEG4, H.263, H.264 MJPEG video encode/decode;
  • Support for almost all format video decoding;
  • Support 2D, 3D high-performance graphics accelerator;
  • Support RTC real time clock save;
  • Support Gigabit wired Ethernet RTL8211E;
  • Support BT656/BT601/MIPI camera interface;
  • Support GPS interface;
  • Support GPRS interface;
  • Support external USB 3G module;
  • Support PCIE 3G/4G;
  • Support USB keyboard/mouse;
  • Supports infrared integration receiving head;

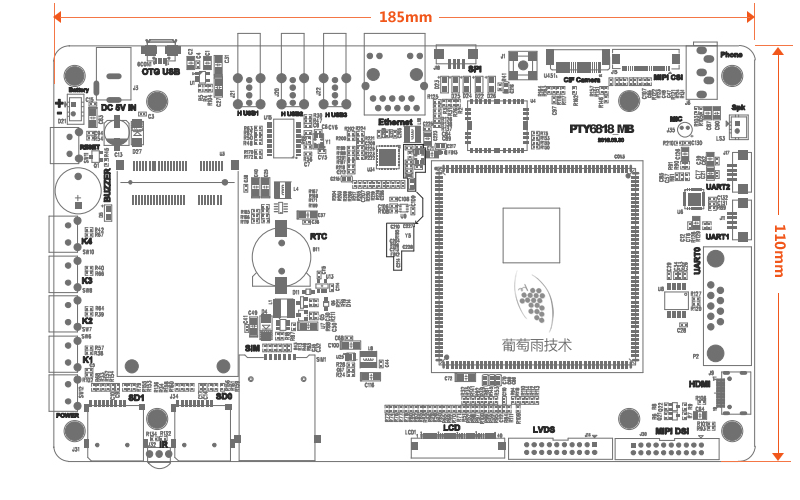

Dimensions of G6818 Development Board



Interfaces Details of G6818 Development Board


Specification Parameters:

LCD Display
  • LCD Display:7inch Capacitive Touchscreen
  • Resolution: 10240 x 600
G6818 System on Module Parameters:
  • Appearance: Stamp hole
  • Size of G6818 System on Module:52mm*52mm*3mm    [the smallest size in SOM field]
  • Pin Pitch:1.1mm
  • Pin Pad Dimension:1.3mm*0.7mm
  • Pin Quantity:184 PIN
  • Layer: 8 layers     [Sole supports]
  • CPU: Samsung S5P6818, Oct Core Cortex-A53, 1.4 Ghz
  • DDR: Single channel DDR3, 2GB as default, and 1GB optinal    [2G(Default)/1GB(Optional)]
  • RAM: 4GB/8GB/16GB eMMC optional, 8GB as default    [8G(Default)/4GB/16GB(Optional)]
  • Power IC:AXP288, and supports dynamic frequency modulation and coulombmeter and so on    [Sole supports]
  • Ethernet: RTL8211E, the Gigabit Ethernet PHY    [Sole supports]

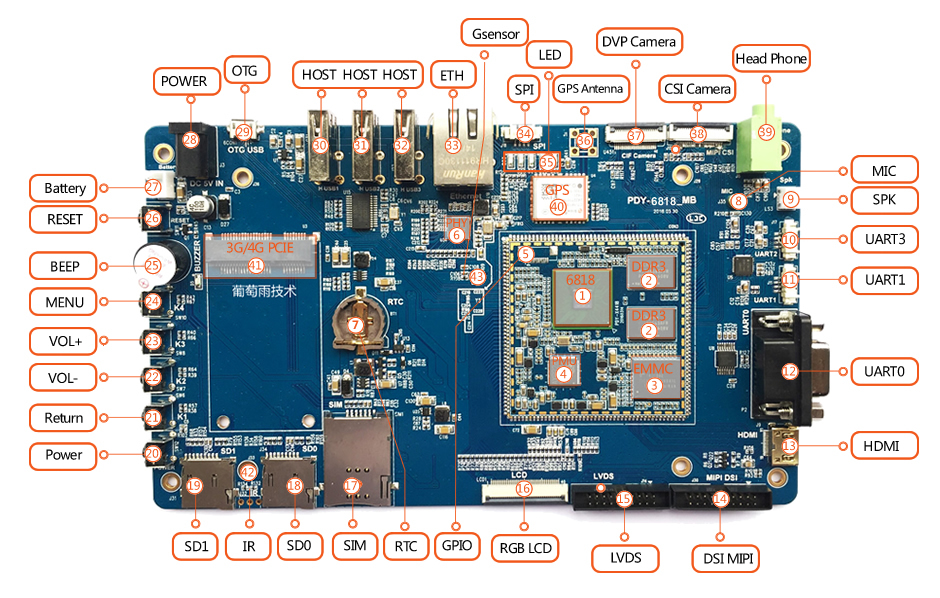

The hardware interface
  • 【1】CPU:S5P6818,ARM Cortex A53,8*1.4GHz
  • 【2】RAM:DDR3,2GBytes    [Sole supports]
  • 【3】ROM:eMMC,8GBytes    [Sole supports]
  • 【4】PMU:Power manager,AXP228
  • 【5】Extended IO:Refer to section 2.3.5
  • 【6】Ethernet:Ethernet PHY,RTL8211E
  • 【7】RTC:RTC Backup battery slot
  • 【8】Mic:Record input
  • 【9】Loudspeaker Interface:Loudspeaker output
  • 【10】UART2:Com3
  • 【11】UART1:Com1
  • 【12】UART0:Com0,Debug Com
  • 【13】HDMI Interface:HDMI Output
  • 【14】DSI MIPI Interface:MIPI Display Interface
  • 【15】LVDS Interface:LVDS Display Interface
  • 【16】RGB LCD/VGA Interface:RGB Output Interface
  • 【17】SIM carm slot:3G/4G SIM card slot
  • 【18】SD card,CH0:SD card,channel 0
  • 【19】SD card,CH1:SD card,channel 1
  • 【20】On/Off Key :On/Off,Wake up
  • 【21】Key,RETURN:Key,K1,RETURN
  • 【22】Key,VOL-:Key,K2, VOL-
  • 【23】Key,VOL+:Key,K3, VOL+
  • 【24】Key,MENU:Key,K4, MENU
  • 【25】Buzzer:Support Active Buzzer
  • 【26】Hardware Reset Key:Hardware Reset
  • 【27】Battery Interface:Single-cell 4.2V Lithium Battery Interface
  • 【28】5V Power Jack:DC input
  • 【29】USB OTG:USB OTG Interface
  • 【30】USB HOST1:HUB Chip Extension,HOST
  • 【31】USB HOST2:HUB Chip Extension,HOST
  • 【32】USB HOST3:HUB Chip Extension,HOST
  • 【33】1000M Ethernet Interface:RTL8211E Interface
  • 【34】SPI Interface:SPI Interface
  • 【35】LED:Power indicator lamp,4 LEDs
  • 【36】GPS Antenna:GPS Module Antenna
  • 【37】DVP camera Interface:Parallel camera Interface
  • 【38】CSI camera Interface:Mipi camera Interface
  • 【39】Headset Interface:Headset output
  • 【40】GPS Module:GPS Module
  • 【41】3G/4G PCIE Interface Slot:Support 3G/4G PCIE Module
  • 【42】IR Receiver:HS0038 IR Receiver
  • 【43】Gsensor:G-sensor mma8653

G6818 development board supports Android 5.1, Linux+ Qt5.4, and Ubuntu 120.4 OS. Bootloarder:

Bootloader
  • u-boot.bin
  • Version:u-boot-2014.07
  • Main Features:
  • 1、1.Supports eMMC reassure, read, and programming
  • 2、2.Supports bootm, bootargs Setting
  • 3、3.Supports print, setting, and save environment variable
  • 4、4.Supports memory reveal, contrast, and modification
  • 5、5.Supports USB image download, SD card updating
Kernel and Device Driver
  • Kernel: Linux-3.4.39
  • CPU: 1.4 Ghz
  • RAM: 1GB/2GB
  • Display Driver: 7inch capacitive display( Resolution: 1024 x600) driver;
  • Touch: Touch screen driver
  • HDMI: HDMI V1.4
  • MFC: Multimedia Hardware Decoding ( Provide the source code )
  • ROTATOR: Display Totator Driver ( Provide the source code )
  • TF Card: 2 TF-Card Driver ( Provide the source code )
  • HSMMC: SD/MMC/SDIO Driver ( Provide the source code )
  • SPI: SPI Driver ( Provide the source code )
  • KEYBD: Keyboard Driver ( Provide the source code )
  • AUDIO: Audio Driver ( Provide the source code )
  • DMA: DMA Driver ( Provide the source code )
  • RTC: RTC Driver ( Provide the source code )
  • JPEG: JPEG Hardware Decoding Driver ( Provide the source code )
  • 2D: 2 D Hardware Accelerating Driver ( Provide the source code )
  • 3D: 3D Hardware Accelerating Driver ( Provide the source code )
  • I2C TP: I2C TP Driver for capacitive touchscreen ( Provide the source code )
  • PWM Backlight: PWM Backlight Driver ( Provide the source code )
  • USB: USB Driver ( Provide the source code )
  • Serial Port: Serial Port Driver ( Provide the source code )
  • Ethernet: Ethernet Driver ( Provide the source code )
  • Wifi: Wifi Driver
  • Camerar: 500Mp Camera Driver ( Provide the source code )
  • Bluetooth: Bluetooth Module Driver ( Provide the source code )
  • 3G: 3G CDMA Driver ( Provide the source code )
  • GPS: GPS Driver ( Provide the source code )
Android 5.1 Source BYO Cross Tool Chain:
  • Arm-2009q3.bz2: Cross Tool Chain
Basic Application:
  • Arm-2009q3.bz2: Cross Tool Chain
  • Clock: Android Clock App, which could set alarm time and ring tone.
  • Calculator: Calculator
  • Camera: Camera application
  • Phone: Takephone dialer in Android, which is of call history and contacts list
  • Email: Email tools
  • Settings: Settings for kinds of applications and service in Android OS
  • Browser: Powerful Brower in Android OS, which supports web page zoom in or out, web page jump, and settings.
  • Also supports album classification, artist, dvd, songs, playlist, random play, background play, and search.
  • Messaging: Message software in Android OS
  • Gallery: Image view control, which supports image zooming, on one piece and the next, powerpoint, share, rotation, cutting, and image information.
VmWare 7.0+Ubuntu14.04
  • VmWare 7.0: Virtual machine Ubuntu14.04 in Windows XP OS:Development environment
  • Ubuntu14.04:Development environment

Packing List

Packing List
  • G6818 development board kits (with a 7-inch 1024 x 600 capacitive touch LCD module)*1
  • 5V/2A power adapter *1
  • Serial line *1
  • Datesheet and source code of G6818 development board, which includes system on module schematic diagram in PDF file, and base board PCB, and so on.
Optional hardware checklist
  • 8G TF card *1
  • 500W pixel HM5065 camera*1
  • USB serial extension line*1
  • Ordinary network cable *1
  • Loudspeaker *1
  • HDMI cable*1
  • USB serial port cable*1
  • USB WIFI module *1
  • USB 3G card*1
  • PCIE interfaces 3G/4G module*1
  • TVIN module*1
  • USB WIFI Bluetooth 2 in 1 module*1/li>
  • VGA module*1
  • GPS module*1
  • GPRS module*1
  • USB camera*1


Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.

S5P4418 products

Copyright © Shenzhen Graperain Technology Co., Ltd. All rights reserved.
