  • TVIN module, analog video signal acquisition, is compatible with all major analog camera. The TVIN integrated video decoder converts analog chip TVP5150 signals compatible with NTSC/PAL/SECAM. With 2 video input channels on board,users can switch video input signals by setting 5150 chip register. It supports Graperain all series of development board. The TVIN module and its supported software provide good reference for video capture development, monitoring, car rear view and other products.
  • UI Signal definitions:

    Pin#

    Signal

    Pin#

    Signal

    1

    NC

    13

    NC

    2

    AGND

    14

    Y6

    3

    I2C_SDA

    15

    GND

    4

    NC

    16

    Y5

    5

    I2C_SCL

    17

    PCLK

    6

    RESET

    18

    Y4

    7

    VSYNC

    19

    Y0

    8

    NC

    20

    Y3

    9

    HREF

    21

    Y1

    10

    VDD_IO(3.3V output)

    22

    Y2

    11

    VDD_1V8(1.8V output)

    23

    NC

    12

    Y7

    24

    NC

    UI Signal definitions:

    Pin#

    Signal

    Pin#

    Signal

    1

    NC

    11

    Y0

    2

    VDD_IO(3.3V output)

    12

    Y1

    3

    PCLK

    13

    Y2

    4

    RESET

    14

    Y3

    5

    I2C_SDA

    15

    Y4

    6

    I2C_SCL

    16

    Y5

    7

    NC

    17

    Y6

    8

    VSYNC

    18

    Y7

    9

    HSYNC

    19

    GND

    10

    NC

    20

    GND

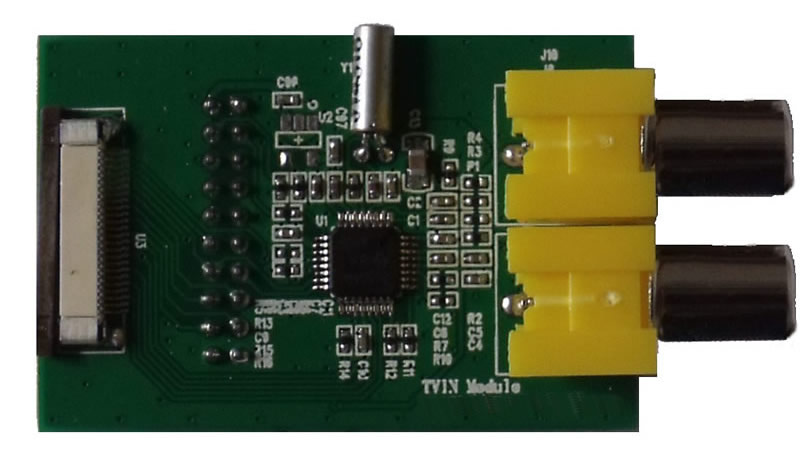

    TVIN module:

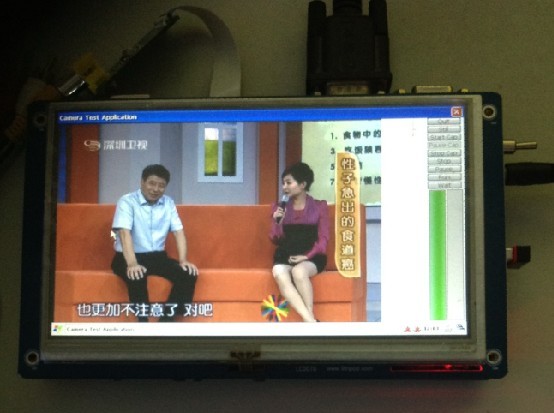

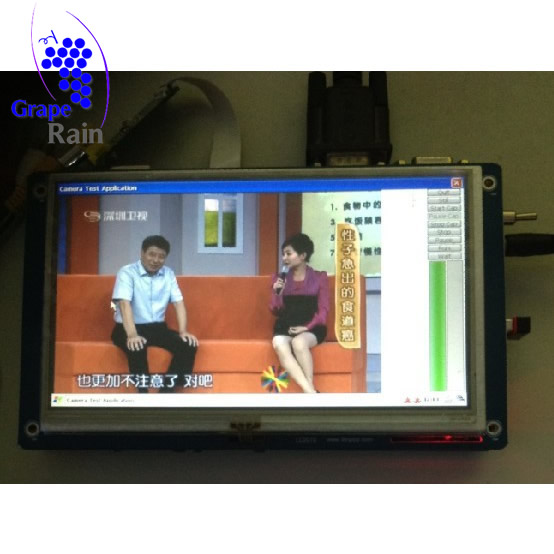

    G210 + TVIN module + Set-top boxes to watch TV:


    Shipment list:

    1. TVIN module *1
    2. 24PIN / 0.5mm pitch FPC bifacial extension cord *1(support for all Graperain development board)
    3. WINCE6.0 driver
    4. WINCE test procedure
    5. TVIN module brief introduction
    6. TVP5150 specification
    7. TVIN module hardware schematics

    Legend: When test the G210ii development board, please do the followings first:

    1.Short-circuit Pin#1 and Pin#5 of U2.
    2.Weld R180 0R resistance.
    3.Input 3.3V power for Pin#10 which connected with camera interface on the development board.
  • TVIN Module Brief Introduction.pdf
