 New arrival G4418 Ibox SBC Single Board Computer compatible to Samsung S5P6818 64bit Octa-Core
Home  /  ARM Embedded Products  >  Development Board  >  G4418 Development Board





  • S5P4418
  • Development Board
  • CPU:S5P4418 (ARM Cortex-A9)
  • S5P4418 development board supports Android 5.1, Linux + Qt, and Ubuntu OS
  • And takes AXP288 as power management to insure the board work stable.
  • CPU
    1.4GHz*4
  • DDR3
    1G
  • EMMC
    8G
  • G4418 development board supports Wifi, Bluetooth, GPS, and 3G/4G
  • The board inland GPS, 3G/4G, Sensor and so on, and it supports wifi, Bluetooth, DVP camera and CSI camera.


    G4418 system on module have been designed 8-layer board, which could be sure it work stable. And the system on module could be used in tablet pc, learning machine, game machine and other kinds of industrial control filed.

  • Abundant Software Source, and Multi-System Supported
  • G4418 development board supports Android 5.1, Linux+ Qt, and Ubuntu OS.

    And the board supports the Gigabit Ethernet. And LVDS interface, MIPI interfaces and PCIE interface onboard. Also it supports software power switch and dormancy awake. Its LCD display takes 7inch TFT as default, and 4.3inch or 5inch as optional. The board supports backlight adjustable too. In a word, this G4418 development board is designed for engineers to testing and developing .


  • G4418 development board is of abundant interfaces and full functions
  • G4418 development board supports the Gigabit Ethernet. And LVDS interface, MIPI interfaces, PCIE interface , SPI interface, HDMI interface, DVP camera interface, CSI camera interface, and 3G/4G SIM interface onboard. Also it supports software switch and power sleep wake up.


    Shenzhen Graperain Technology Co., Ltd. have integrated all its features into G4418 system on module yet. The clients just design 2 or 4 layers carrier PCB board meeting your product will be ok.

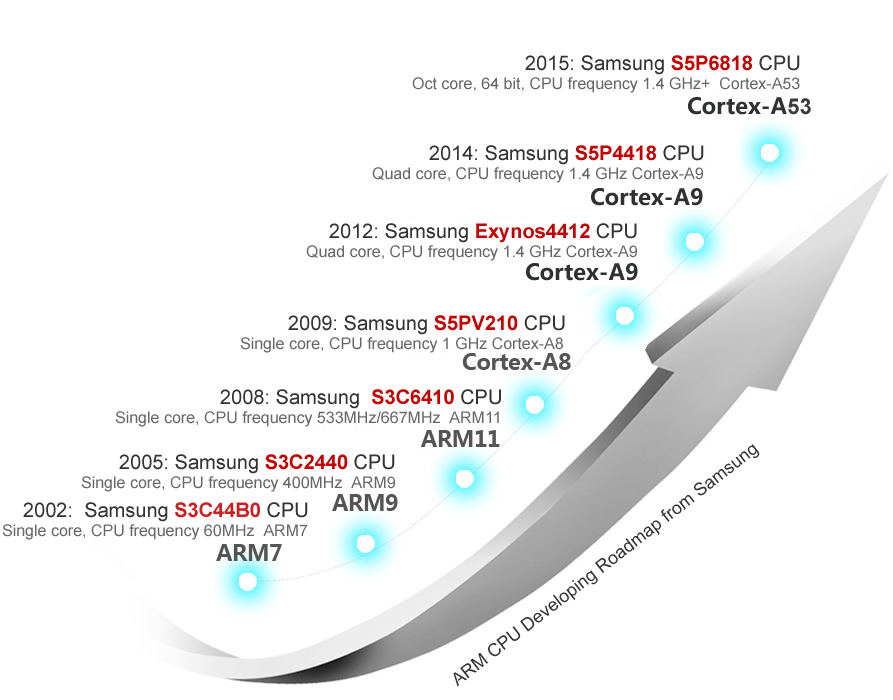

S5PV210, Exynos4412, S5P4418 Features Comparison

As quad core processor become more popular, either mainstream consumer platform or industrial platform users are using quad core to update. Final products are successfully developed based on S5P4418 by either small and medium-sized enterprise or brand companies. Graperain G4418 development board is the hot octa core board with varied configurations and cost effective.

  Processor model   S5PV210   Exynos 4412   S5P4418
  Market time 2010 2012 2014
  Process 65 nm 32 nm 28 nm
  CPU 1.0 GHz 1.4 GHz 1.4 GHz
Arm core series ARM Cortex-A8 Single core ARM Cortex-A9 Quad-Core ARM Cortex-A9 Quad-Core

Cache capacity



32KB*4 I/D cache,1MB Two level cache

32KB*4 I/D cache,1MB Two level cache

Memory LPDDR1, LPDDR2 and DDR2 LPDDR1, LPDDR2, DDR2 and DDR3 LPDDR1, LPDDR2, DDR2 and DDR3

DDR3



Dual channel 32 bit data bus, the working frequency of up to 800MHz

Single channel 32 bit data bus, the working frequency of up to 800MHz

EMMC 4GB(Default)/8GB(Optional) emmc 4GB(Default)/8GB/16GB emmc 4GB/8GB(Default)/16GB emmc
Multi-media decode MPEG2/MPEG4, H.263, H.264 H.263, H.264, MPEG2, MPEG4, VC1

H.263, H.264, MPEG1, MPEG2, MPEG4, VC1, VP8, Theora, AVS, RV8/9/10, MJPEG

Multi-media codec MPEG2/MPEG4, H.263, H.264 H.263, H.264, MPEG4

H.263,H.264,MPEG4, MJPEG

Display interface

RGB,MIPI

RGB,MIPI

RGB, MIPI, LVDS
Max resolution 1920*1080

1920*1200

2048*1280

GPIO voltage 3.3V 1.8V 3.3V
Ethernet 100M/10M Through bus address extension

Integrate gigabit Ethernet controller

ADC 4 channel 12 bit 0~1.8V 4 channel 12 bit 0~1.8V

8 channel 12 bit 0~1.8V

USB



1 channel HSIC,1 channel OTG

1 channel HSIC,1 channel HSIC,1 channel OTG

Slim bus



supports

no supports

C2C



supports(Mobile phone)

no supports

GPS



supports

no supports

ISP



supports

no supports

Chip ID

No unique ID

No unique ID

Support 128BIT unique ID

OS Support Android, Linux+QT, Wince Android, Linux+QT, ubuntu Android, Linux+QT,ubuntu




You can clearly find that 4418 is not a simple abridged version of 4412 but a new CPU from the table. Compared with 4412, it reduced the slim bus,C2C,GPS and ISP which widely used on mobile phones, these features rarely used in the industrial and tablet, but them take up a huge cost. At the same time, 4418 increase the Gigabit Ethernet controller, promote LCD interface driving capability and multimedia decoding capability . Add 1 channel USB HOST interface,but 4412 need to plus a bridge chip. GPIO level also change from 1.8V to 3.3V, more suitable for the current peripheral program.For the cost, users just get a 4418 with half cost of 4412.

Shenzhen Graperain Technology Co., Ltd. first to launch S5P4418 development platform, it is equipped with a complete and stable software android 5.1 operating system (linux + qt, ubuntu system optional), uses AXP228 launched by x-powers as the power management chip to ensure 4418 work stable and reliable.

Checking S5P4418 Single Board Computer Instruction>>

Checking S5P4418 System On Module Instruction>>





The Most Cost Effective Quad Core System on Module

●Quad Core CPU  ●the Gigabit Ethernet  ●PMU  ●Single Channel DDR  ●Super Performance  ●Super Stability  ●Delivery Cycle long

Compared with Exynos4412, S5P4418 chipset CPU reduced the slim bus,C2C,GPS and ISP interfaces, that way reduced the board cost too. And its 1000,000.00 shipments could proves its stability and usability.


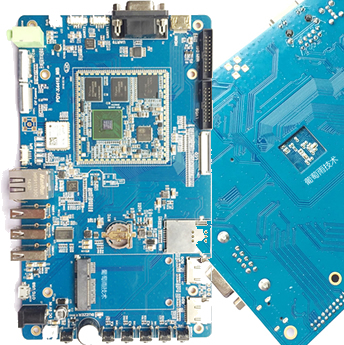

Product Introduction

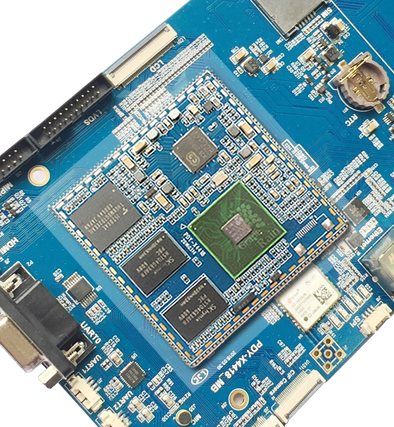

G4418 development board contains of stamp hole system on module, base board and LCD board. And its base board is of rich peripherals, which can demonstrate all features of G4418 system on module. It supports the Gigabit Ethernet. And LVDS interface, MIPI interfaces and PCIE interface onboard. Also it supports software power switch and dormancy awake. And the LCD takes 7inch TFT as default, and 4.3inch or 5inch as optional. The board supports backlight adjustable too.



More G4418 development board integrates infrared receiving head  which makes it to be a 4 core speed TV set-top box with the free online TV player software such as Thai express video etc,that  can completely replace the home cable TV and set-top boxes purchased on the market.



G4418 system on module size:52mm*52mm    G4418 development board base board size:185mm*110mm
Checking S5p4418 system on module instruction>>






Product Features

Product Features
  • Kernel:ARM Cortex-A9 quad-core;
  • Frequency:1.4GHz*4;
  • RAM:1GB/2GB DDR3(Optional),standard 1GB;    [optional]
  • Flash: Support 4GB/8GB/16GB EMMC optional, standard 8GB emmc;    [optional]
  • 24-bit RGB interface;
  • 8-bite LVDS interface;
  • 3-channel USB HOST interface, support connecting multi USB devices simultaneously;
  • USB OTG interface;
  • 1 RS232 interface; 2 TTL interface;
  • 2 TF card interface;
  • 4 LED indicators;
  • Reset button;
  • Software on/off button;
  • Onboard external speaker;
  • MIC input connector;
  • Earphone output connector;
  • Support free start-up configuration switch;
  • Backlight multi-level adjustment;
  • Support HDMI interface;
  • Support 5-point capacitive touch control;
  • Support USB WIFI;
  • Support USB Bluetooth;
  • Support G-sensor;
  • Support peripheral expansion using various interfaces, such as SPI, I2C, UART, etc.
  • Support MPEG2/MPEG4, H.263, H.264 MJPEG video encode/decode;
  • Support for almost all format video decoding;
  • Support 2D, 3D high-performance graphics accelerator;
  • Support RTC real time clock save;
  • Support Gigabit wired Ethernet RTL8211E;
  • Support BT656/BT601/MIPI camera interface;
  • Support GPS interface;
  • Support GPRS interface;
  • Support external USB 3G module;
  • Support PCIE 3G/4G;
  • Support USB keyboard/mouse;
  • Supports infrared integration receiving head;

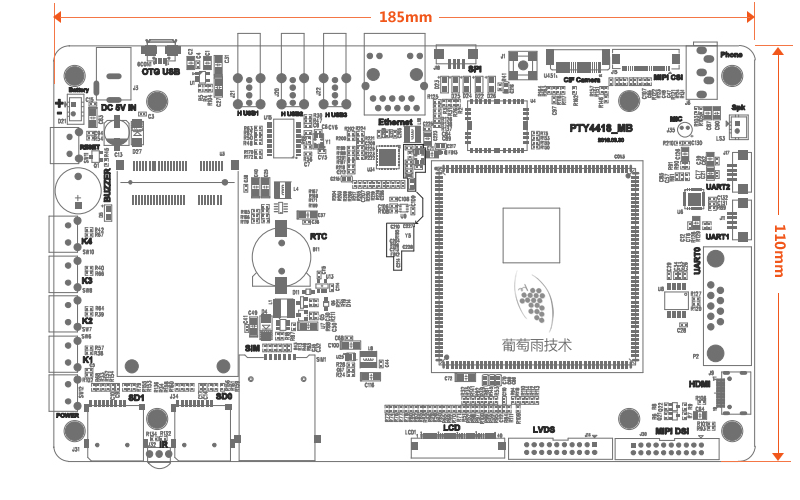

Dimensions of G4418 Development Board

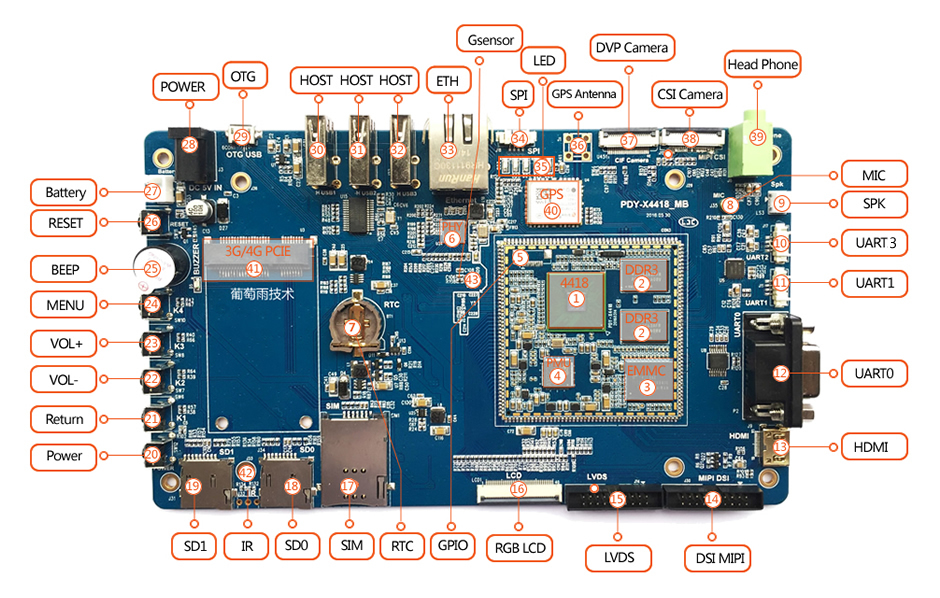

Interfaces Details of G4418 Development Board


Specification Parameters:

LCD Display
  • LCD Display:7inch Capacitive Touchscreen
  • Resolution:1024*600
G4418 System on Module Parameters:
  • Appearance: Stamp hole
  • Size of G4418 System on Module:52mm*52mm*3mm    [the smallest size in SOM field]
  • Pin Pitch:1.1mm
  • Pin Pad Dimension:1.3mm*0.7mm
  • Pin Quantity:184 PIN
  • Layer: 8 layers     [Sole supports]
  • CPU: Samsung S5P4418, Quad Core Cortex-A9, 1.4 Ghz
  • DDR: Single channel DDR3, 1GB as default, and 2GB optinal    [1G(Default)/2GB(Optional)]
  • RAM: 4GB/8GB/16GB eMMC optional, 8GB as default    [8G(Default)/4GB/16GB(Optional)]
  • Power IC:AXP288, and supports dynamic frequency modulation and coulombmeter and so on    [Sole supports]
  • Ethernet: RTL8211E, the Gigabit Ethernet PHY    [Sole supports]
The hardware interface
  • 【1】CPU:S5P4418,ARM Cortex A9,4*1.4GHz
  • 【2】RAM:DDR3,1GBytes    [Sole supports]
  • 【3】ROM:eMMC,8GBytes    [Sole supports]
  • 【4】PMU:Power manager,AXP228
  • 【5】Extended IO:Refer to section 2.3.5
  • 【6】Ethernet:Ethernet PHY,RTL8211E
  • 【7】RTC:RTC Backup battery slot
  • 【8】Mic:Record input
  • 【9】Loudspeaker Interface:Loudspeaker output
  • 【10】UART2:Com3
  • 【11】UART1:Com1
  • 【12】UART0:Com0,Debug Com
  • 【13】HDMI Interface:HDMI Output
  • 【14】DSI MIPI Interface:MIPI Display Interface
  • 【15】LVDS Interface:LVDS Display Interface
  • 【16】RGB LCD/VGA Interface:RGB Output Interface
  • 【17】SIM carm slot:3G/4G SIM card slot
  • 【18】SD card,CH0:SD card,channel 0
  • 【19】SD card,CH1:SD card,channel 1
  • 【20】On/Off Key :On/Off,Wake up
  • 【21】Key,RETURN:Key,K1,RETURN
  • 【22】Key,VOL-:Key,K2, VOL-
  • 【23】Key,VOL+:Key,K3, VOL+
  • 【24】Key,MENU:Key,K4, MENU
  • 【25】Buzzer:Support Active Buzzer
  • 【26】Hardware Reset Key:Hardware Reset
  • 【27】Battery Interface:Single-cell 4.2V Lithium Battery Interface
  • 【28】5V Power Jack:DC input
  • 【29】USB OTG:USB OTG Interface
  • 【30】USB HOST1:HUB Chip Extension,HOST
  • 【31】USB HOST2:HUB Chip Extension,HOST
  • 【32】USB HOST3:HUB Chip Extension,HOST
  • 【33】1000M Ethernet Interface:RTL8211E Interface
  • 【34】SPI Interface:SPI Interface
  • 【35】LED:Power indicator lamp,4 LEDs
  • 【36】GPS Antenna:GPS Module Antenna
  • 【37】DVP camera Interface:Parallel camera Interface
  • 【38】CSI camera Interface:Mipi camera Interface
  • 【39】Headset Interface:Headset output
  • 【40】GPS Module:GPS Module
  • 【41】3G/4G PCIE Interface Slot:Support 3G/4G PCIE Module
  • 【42】IR Receiver:HS0038 IR Receiver
  • 【43】Gsensor:G-sensor mma8653

G4418 development board supports Android 5.1, Linux+ Qt5.4, and Ubuntu 120.4 OS.

Bootloader
  • u-boot.bin
  • Version:u-boot-2014.07
  • Main Features:
  • 1、1.Supports eMMC reassure, read, and programming
  • 2、2.Supports bootm, bootargs Setting
  • 3、3.Supports print, setting, and save environment variable
  • 4、4.Supports memory reveal, contrast, and modification
  • 5、5.Supports USB image download, SD card updating
Kernel and Device Driver
  • Kernel: Linux-3.4.39
  • CPU: 1.4 Ghz
  • RAM: 1GB/2GB
  • Display Driver: 7inch capacitive display( Resolution: 1024 x600) driver;
  • Touch: Touch screen driver
  • HDMI: HDMI V1.4
  • MFC: Multimedia Hardware Decoding ( Provide the source code )
  • ROTATOR: Display Totator Driver ( Provide the source code )
  • TF Card: 2 TF-Card Driver ( Provide the source code )
  • HSMMC: SD/MMC/SDIO Driver ( Provide the source code )
  • SPI: SPI Driver ( Provide the source code )
  • KEYBD: Keyboard Driver ( Provide the source code )
  • AUDIO: Audio Driver ( Provide the source code )
  • DMA: DMA Driver ( Provide the source code )
  • RTC: RTC Driver ( Provide the source code )
  • JPEG: JPEG Hardware Decoding Driver ( Provide the source code )
  • 2D: 2 D Hardware Accelerating Driver ( Provide the source code )
  • 3D: 3D Hardware Accelerating Driver ( Provide the source code )
  • I2C TP: I2C TP Driver for capacitive touchscreen ( Provide the source code )
  • PWM Backlight: PWM Backlight Driver ( Provide the source code )
  • USB: USB Driver ( Provide the source code )
  • Serial Port: Serial Port Driver ( Provide the source code )
  • Ethernet: Ethernet Driver ( Provide the source code )
  • Wifi: Wifi Driver
  • Camerar: 500Mp Camera Driver ( Provide the source code )
  • Bluetooth: Bluetooth Module Driver ( Provide the source code )
  • 3G: 3G CDMA Driver ( Provide the source code )
  • GPS: GPS Driver ( Provide the source code )
Android 5.1 Source BYO Cross Tool Chain:
  • Arm-2009q3.bz2: Cross Tool Chain
Basic Application:
  • Arm-2009q3.bz2: Cross Tool Chain
  • Clock: Android Clock App, which could set alarm time and ring tone.
  • Calculator: Calculator
  • Camera: Camera application
  • Phone: Takephone dialer in Android, which is of call history and contacts list
  • Email: Email tools
  • Settings: Settings for kinds of applications and service in Android OS
  • Browser: Powerful Brower in Android OS, which supports web page zoom in or out, web page jump, and settings.
  • Also supports album classification, artist, dvd, songs, playlist, random play, background play, and search.
  • Messaging: Message software in Android OS
  • Gallery: Image view control, which supports image zooming, on one piece and the next, powerpoint, share, rotation, cutting, and image information.
VmWare 7.0+Ubuntu14.04
  • VmWare 7.0: Virtual machine Ubuntu14.04 in Windows XP OS:Development environment
  • Ubuntu14.04:Development environment

Packing List

Packing List
  • G4418 development board kits (with a 7-inch 1024 x 600 capacitive touch LCD module)*1
  • 5V/2A power adapter *1
  • Serial line *1
  • Datesheet and source code of G4418 development board, which includes system on module schematic diagram in PDF file, and base board PCB, and so on.
Optional hardware checklist
  • 8G TF card *1
  • 500W pixel HM5065 camera*1
  • USB serial extension line*1
  • Ordinary network cable *1
  • Loudspeaker *1
  • HDMI cable*1
  • USB serial port cable*1
  • USB WIFI module *1
  • USB 3G card*1
  • PCIE interfaces 3G/4G module*1
  • TVIN module*1
  • USB WIFI Bluetooth 2 in 1 module*1/li>
  • VGA module*1
  • GPS module*1
  • GPRS module*1
  • USB camera*1
