 New arrival G4418 Ibox SBC Single Board Computer compatible to Samsung S5P6818 64bit Octa-Core
Home  /  ARM Embedded Products  >  SBC Single Board Computer  >  G6818 SBC Single Board Computer



  • single board computer linux
  • S5P6818
  • Single Board Computer
  • CPU:S5P6818 (ARM Cortex-A53)
  • Only change CPU, quad core Cortex-A9 will be updated to octa core Cortex-A53
  • G4418 SBC and G6818 SBC are the same size, support Android, Linux + qt, Ubuntu OS.
  • CPU
    1.4GHz*8
  • DDR31G
  • EMMC
    8G
  • android single board computer
  • It’s fully compatible with S5P4418.

  • Only change CPU, quad core Cortex-A9 will be updated to octa core Cortex-A53. It makes more convenient for customers to update products.


    The G6818 single board computer is almost one third of the G6818 development board size, but with better performance than the G6818 development board. It nearly covers all the peripheral function of the development board, as well as onboard VGA, USB WIFI/BT two in one module, etc.

  • single board linux computer supporting Android5.1, Linux+qt, Ubuntu OS
  • Rich software sources, multi OS supporting

  • G6818 SBC comes with complete and stable Android5.1, Linux+qt, Ubuntu OS. Graperain is the first company that launched G6818 Single board computer.

    It supports Gigabit Ethernet, on board LVDS, MIPI interfaces, software power on/off, sleep wake up etc. Standard LCD is 7” touch screen. 4.3”, 5” are optional. Brightness adjustment is also supported. G6818 SBC is more suitable for engineers and enterprises to develop new products.


  • single board android computer
  • Varieties interfaces, complete functions

  • G6818 SBC supports Gigabit Ethernet, on board LVDS, MIPI, SPI, HDMI, DVP camera interfaces etc. It also supports software power on/off, sleep wake up etc.


    Greperain G6818 SOM almost achieve all the functions. Customers only need to design the two or four layer carrier board, can realize high-end quad core product design.



Product Introduction

The G6818 single board computer is almost one third of the G6818 development board size, but with better performance than the G6818 development board. It nearly covers all the peripheral function of the development board, as well as onboard VGA, USB WIFI/BT two in one module, etc. Software: G6818 SBC is completely compatible with G6818 development board, it’s unnecessary to make any modification. Hardware: G4418 SBC is completely compatible with G6818 SBC, it’s only needed to change the SoC to upgrade A9 Quad Core to A53 Octa Core, convenient for clients to upgrade their products.



G6818 single board computer is very suitable for the field which does not need other industry peripheral extension, such as industry control, electricity, communication, medical, media, security, vehicle device, financial and consumer electronics, advertising machine, set top box, hand-held device, gaming device, display control and so on. Free of secondary development, users can embed the SBC directly into their own products. Meanwhile, it’s also applicable for universities, embedded engineers study or DIY. G6818 SBC and G4418 SBC are seamless compatible. If G6818 SBC can’t meet requirements in the performance, G6818 SBC will be a optional choice without adding too much cost.



G4418 SBC and G6818 SBC are the same size, support 1GB, 2GB DDR3, Android, Linux + qt, Ubuntu OS.



Gbox6818 size:100.66mm * 68.8mm

Checking S5P6818 Development Board Instruction>>

Checking S5P6818 System On Module Instruction>>

Checking S5P4418 arm quad core single board computer Instruction>>

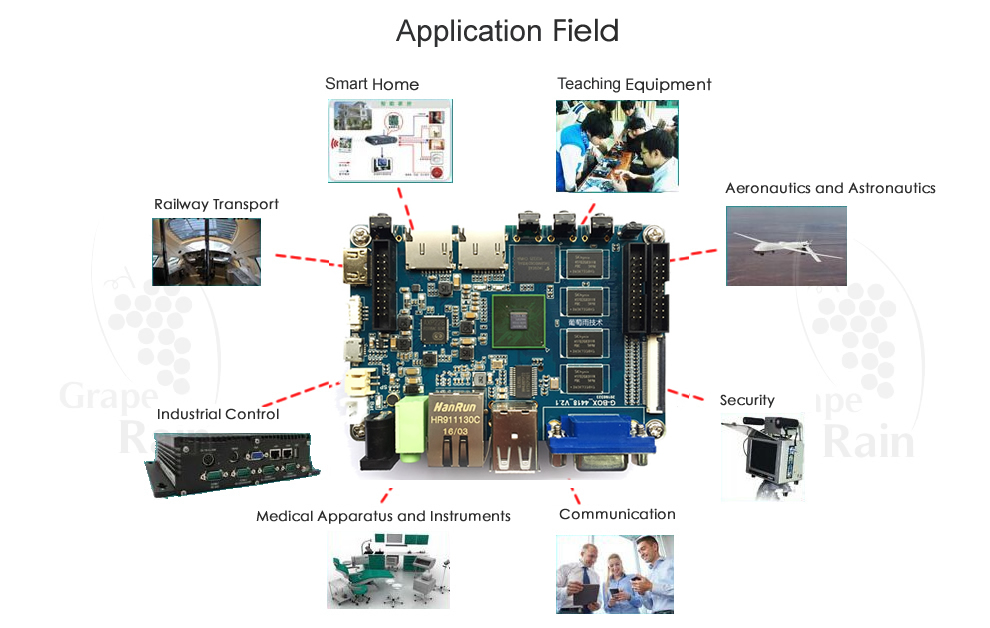

android single board computer Application Field


Functions and features

Functions and features
  • Core: ARM Cortex-A53 octa core;
  • Frequency:1.4GHz+*8;
  • Memory: 1GB DDR3, 2GB DDR3 optional;    [Optional]
  • Flash: 4GB / 8GB / 16GB/32GB EMMC optional, default 8GB emmc;    [Optional]
  • 24bit RGB interface;
  • 8bit LVDS interface;
  • VGA interface supported
  • MIPI DSI interface
  • 2 channels USB HOST interface, support more USB devices used together;
  • USB OTG interface;
  • 2 channels TTL electrical level UART interface;
  • 2 channels TF card interface;
  • 2 channel LED
  • Reset key;
  • Software power on/off switch;
  • Support external speaker;
  • Support MIC input;
  • Support earphone output interface;
  • Support the launch configuration switch design;
  • Support backlit stepless adjustment;
  • Support HDMI interface;
  • Support 5 points capacitive touch screen;
  • Support USB interface WIFI/BT two-in-one module;
  • Support SPI, I2C, UART etc.;
  • Support MPEG4, H.263, H.264, MJPEG video decoding;
  • Support all most video decoding;
  • Support 2D, 3D high-performance graphics acceleration;
  • Support RTC;
  • Support gigabit Ethernet RTL8211E;
  • Support BT656/BT601/MIPI camera interface;
  • Support GPS interface;
  • Support GPRS interface;
  • Support USB 3G module;
  • Support USB mouse and USB keyboard;
  • Support Integration of infrared receiving;

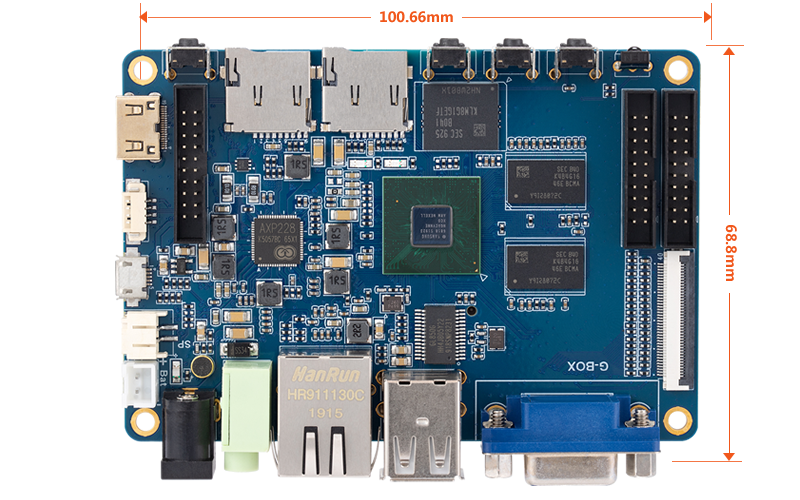

SBC size


ubuntu single board computer size

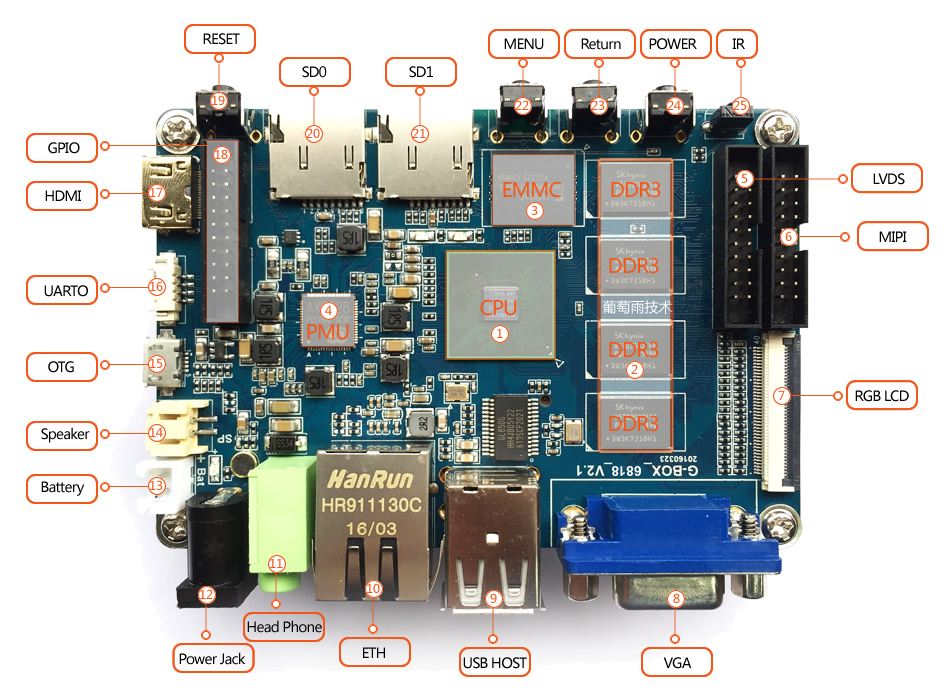

SBC interfaces1


single board computer ubuntu interfaces1

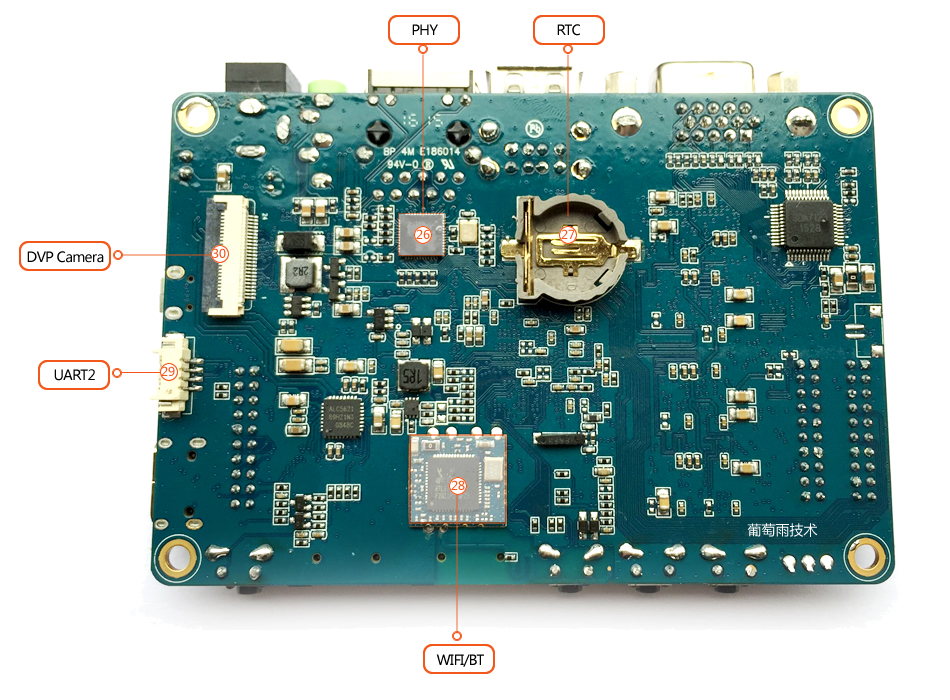

SBC interfaces2


arm linux sbc interfaces2

Parameters

Hardware interfaces
  • 【1】CPU: S5P6818, ARM Cortex A53, 8*1.4GHz
  • 【2】RAM: DDR3,1GB standard, 2GB optional
  • 【3】FLASH: 8GB,eMMC
  • 【4】PMU: AXP228
  • 【5】LVDS interface: For LVDS interface LCD
  • 【6】MIPI interface: For MIPI interface LCD
  • 【7】RGB interface: RGB output
  • 【8】VGA interface: SDA7123
  • 【9】USB HOST: Double lane HOST
  • 【10】Gigabyte Ethernet: RJ45
  • 【11】Head phone interface: Head phone output
  • 【12】5V in jack: DC power input
  • 【13】Battery interface: Single 4.2V lithium ion
  • 【14】Speaker interface: External speaker output
  • 【15】USB OTG: USB OTG interface
  • 【16】UART0 Serial port 0, for debugging
  • 【17】HDMI interface: HDMI output
  • 【18】Extension GPIO: UART, SPI, I2C, ADC
  • 【19】Hard reset key: Hard reset
  • 【20】TF card,SD0: TF card, uses channel 0
  • 【21】TF card,SD1: TF card, uses channel 1
  • 【22】Key, user-define: Independent key, as MENU
  • 【23】Key, user-define: Independent key, as Return
  • 【24】Power on/off Sleep/wake up
  • 【25】IR module HS0038B IR port
  • 【26】Gigabyte PHY: RT8211E
  • 【27】RTC: RTC backup battery
  • 【28】Wifi Bluetooth: RT8723BU, Wifi Bluetooth two-in-one module
  • 【29】UART2 Serial port 2,ttl level
  • 【30】Camera interface: BT601,BT656 camera interface

G6818 single board computer supports three main operating systems: android5.1 OS, linux3.4.39 + QT5.4 system and ubuntu12.04. The supported drivers are as follows:

G6818 develop platform supported drivers list

OS / Drivers

Linux3.4.39 android4.4.2

Linux3.4.39 QT5.4

Linux3.4.39 Ubuntu12.04

7”LCD(1024*600)

4.3”LCD(480*272)

5”LCD(800*480)

LVDS 10.1”

LVDS 8”

MIPI 7”

MIPI 5.5”

PMIC driver(AXP228)

Capacitive touch

Resistive touch

EMMC

SD

Independent key

LED

Buzzer

IR control

Driver supported, need application development

Driver supported, need application development

Power on/off

Sleep wake up

2 channel USB HOST

1 channel USB OTG

Audio(ALC5621)

Record(ALC5621)

USB WIFI/BT4.0

Parallel camera

Driver supported, need application development

Driver supported, need application development

Micro camera

Driver supported, need application development

Driver supported, need application development

Dual Parallel camera

Driver supported, need application development

Driver supported, need application development

Driver supported, need application development

USB camera

Driver supported, need application development

Dual USB camera

Driver supported, need application development

Driver supported, need application development

Serial port

HDMI

3G module(USB 3G dongle)

Driver supported, need application development

GPS module

Driver supported, need application development

Driver supported, need application development

Gigabit

USB mouse keyboard

TVIN module(TVP5150)

Driver supported, need application development

Driver supported, need application development

VGA module(SDA7123)

Packing list

Standard accessories:
  • G6818 SBC
  • 5V/2A power adapter
  • TTL to RS232 converter board
  • Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)
Optional accessories:
  • 7” 1024*600 capacitive touch LCD
  • USB cable*1
  • Ethernet cable*1
  • Serial cable*1
  • Speaker*1
  • 8G TF card*1
  • 500W pixel HM5065 camera parallel*1
  • HDMI*1
  • USB to serial extension cable*1
  • USB 3G module*1
  • TVIN module*1
  • VGA module*1
  • GPS module*1
  • GPRS module*1




Pay particular attention

Commitment
  • For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
