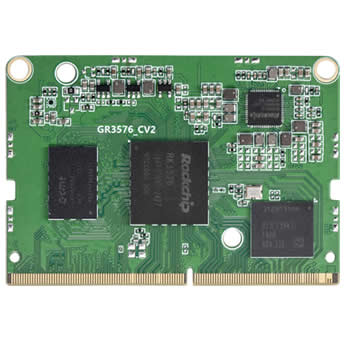

G3576 System On Module(SOM)

Rockchip RK3576 System on Module
Take big little core architecture,quad-core Cortex-A72 and quad-core Cortex-A53,its main frequency is max up to 2.2GHz,built-in Mali-G52 MC GPU,6T NPU,low consumption and high performance. More information…
Customized solution with RK3576 system on module for reference.
I want to customize service.>>
Viewed：1637
More Information

Download Center

RK3576
System on Module
CPU:RK3576 ( A72+A53 octa-core 2.2GHz )
Support Android 14,Ubuntu,Linux,Debian OS etc..
Best Size,Strong expandability,more 260 PIN 69.6mm x 48.1mm
CPU
2.2GHz
LPDDR4
2G
EMMC
16G

The Best Octa-Core System on Module

2GB RAM as standard,and 4GB/8GB/16GB optional.

A72+A53 octa-core CPU
Cortex A72+53 octa-core 2.2GHz
8GB RAM 128GB Memory

8GB LPDDR4,128GB Memory
Low consumption and high-performance
2.2GHz,built-in Mali-G52 MC3 GPU,6T NPU
Android 14 OS
First Android 14 OS

RK3576 System on Module (shorts for RK3576 SOM) Introduction:

G3576 gold finger system on module,based on Rockchip RK3576 (octa-core 64bit) chip,which is launched by Shenzhen Graperain Technology Co.,Ltd.

Take big little core architecture,quad-core Cortex-A72 and quad-core Cortex-A53,its main frequency is max up to 2.2GHz,built-in Mali-G52 MC GPU,6T NPU,low consumption and high performance. DDR max up to 16GB. Support PCIe2.1 and SATA3.0,8K@30fps/4K@120fps video decoder (H.265/HEVC,VP9,AVS2,AV1）

Checking RK3576 Development Board Instruction>>

RK3576 SOM Features Details:

Best Size; 69.6mm x 48.1mm
Frequency up to 2.2*8GHz,bulit-in Mali-G52 MC3 GPU,6T NPU
Support kinds of eMMC,16GB eMMC as default
DDR 2GB as default,and 4GB as optional,max up to 8GB
Support PCIE2.1 and SATA3.0
Support power sleep wake-up
Support Android 14,Ubunt,Linux,and Debian OS
Rich display interfaces

Structure Parameter

Appearance：Gold finger
System Dimension：69.6mm x 48.1mm
Pin Pitch：1mm
Pin Quantity：260PIN
Layer：8-layer gold plating process

System Configuration

CPU: RK3576,Cortex A72+A53 octa-core 2.2GHz
Main frequency: Octa-core 64bit Cortex-A72+Cortex-A53 CPU,up to 2.2GHz
GPU: Built-in Mali-G52 MC3 GPU
NPU: 6Tops NPU,support INT4/INT8/INT16/FP16/BF16/TF32,support dual-core collaborative work or independent operation,and multi-task and multi-scenario parallel operation
Encoder/Decoder: Vidoe decoder: 8K@30fps/4K@120fps(H.265/HEVC,VP9,AVS2,AV1),4K@60fps(H.264/AVC) Video encoder: 4K@60fps（H.265/HEVC,H.264/AVC）
Picture encoder/decoder: 4K@60fps MJPG
DDR: LPDDR4,2GB as standard version,and 4GB/8GB as optional.
Memory: 8GB/16GB/32GB/64GB/128GB as optional,and 16GB as default
Expansion Interface: UART,I2C,ADC,PWM,GPIO,USB2.0,USB3.0,MIPI CSI,MIPI DSI,I2S and so on.
OS: Android14,Ubuntu,Linux,Debian

Interfaces Parameter

Ethernet: Integrated 2 x GMAC Ethernet control,support 1000Mbps Ethernet
Wireless Network: Expansion Wifi,Bluetooth,4G/5G through USB,SDIO,PCIE,UART
Display: 1 x HDMI2.1(4K@120Hz)/1 x EDP1.3(4K@60Hz) 1 x DP1.4,max up to 4K@120Hz 1 x MIPI DSI,2560x1600@60fps 1 x EBC,2560x1920@60fps 1 x RGB,1920x1080@60fps
Audio: 2 x SAI（4T/4R）,3 x SAI（1T/1R）,support I2S/TDM/PCM model 2 x SPDIF TX & RX （8 channels,max up to 24bits resolution）2 x PDM （8 channels）
Camera: 2 x MIPI DPHY CSI （1x4Lanes or 2x2Lanes） 1 x MIPI DCPHY CSI （support 4 Lanes/2 Lanes/1 Lanes）
USB：1 x USB3.2 Gen1 OTG0（with DP1.4 reuse）1 x USB3.2 Gen1 OTG1（with PCIE2.1/SATA3.1 reuse）
PCIE/SATA：1 x PCIE 2.1/SATA 3.1/USB3.2 Gen1 composite interface 1 x PCIE 2.1/SATA 3.1 composite interface
Other interfaces: 2 x SDIO3.0,2 x CAN FD,16 x PWM,10 x I2C（support 7-bit and 10-bit address pattern）,2 x I3C（accord with I2C,support SDR model，max up to 10 devices）,12 x UART，Uart0 for Debug uart，Uart1-Uart11 support RS485,7xSARADC+1xSARADC (only for boot)

Electrical Features

Operating Temperature：-20℃- 80℃
Storage Temperature：-30℃- 80℃
Storage humidity：10%～80%

RK3576 SOM Appearance

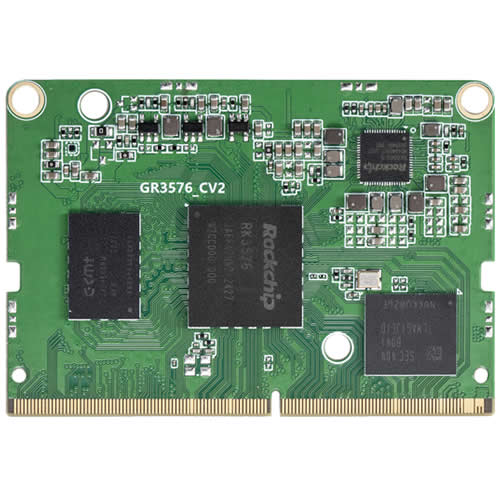

RK3576 SOM Front

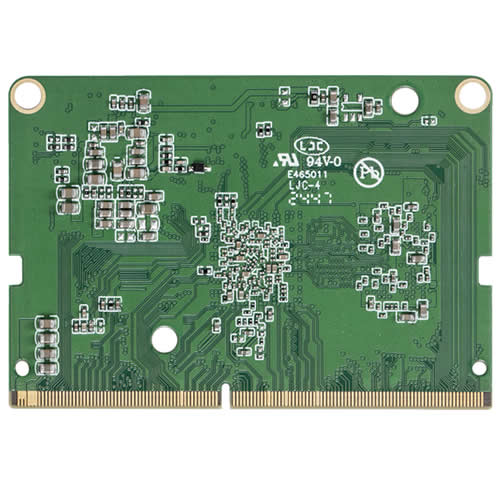

RK3576 SOM Back

Download Center

Download

Pay particular attention

Commitment

For customers who have purchased development board( or SBC) and related accessories,Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
