ARM quad-core Cortex-A72 and quad-core Cortex-A53 G3576 Development Boards

Rockchip RK3576 Gold Finger Development Board
Rockchip RK3576 Development Board adopts big.LITTLE core architecture, quad-core Cortex-A72 + quad-core Cortex-A53. RK3576 is a low power, high performance processor for ARM-based PC and Edge Computing device. The main frequency is up to 2.2GHz, built-in Mali-G52 MC3 GPU, 6T NPU.
Customized solution with RK3576 system on module for reference.
I want to customize service.>>
Viewed：1621
More Information

Download Center

RK3576
Development Board
CPU:RK3576 ( A72+A53 octa-core 2.2GHz )
Support Android 14, Ubuntu, Linux, Debian OS etc..
Best Size, Strong expandability, more 260 PIN 69.6mm x 48.1mm
CPU
2.2GHz
LPDDR4
2G
EMMC
16G

The most cost-effective Octa-Core

2GB RAM as standard, and 4GB/8GB/16GB optional.

Brief Introduction

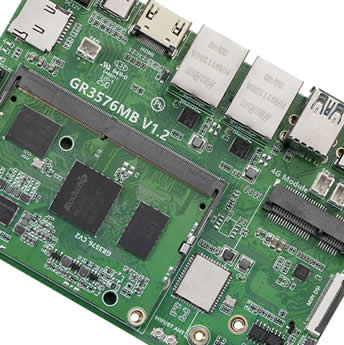

RK3576 development board is launched with Rockchip RK3576 platform(64-bit octa-core A72 + A53) by Graperain.

RK3576 development board is mainly composed of RK3576 system on module and carrier board.

RK3576 development platform adopts Rockchip RK3576 octa-core CPU, integrated dual-core architecture GPU and high-performance NPU. It supports up to 16GB RAM. Onboard M.2 interface, WIFI. 4G module, dual Gigabit network, 4K HDMI display are all supported. It can be used in industrial control, edge computing, face recognition and other scenes.

RK3576 SOM size：69.6mm x 48.1mm RK3576 carrier board size： 130mm x 90mm Check RK3576 SOM features>>

RK3576 development board features

The product features

Size is only 130mm x 90mm, can be used directly on the product
Powerful, rich interface, wide range of applications.
Support Android14, Ubuntu, Linux, Debian operating systems
Stable and reliable, and the board will not crash after long-term copying.

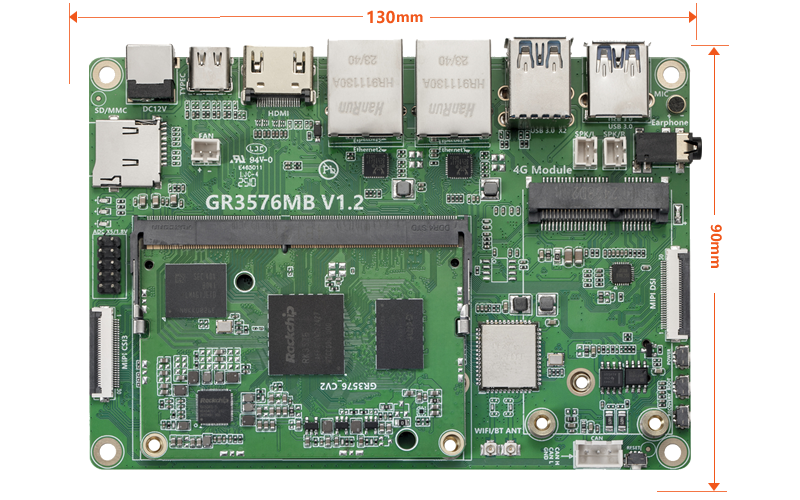

Development board size

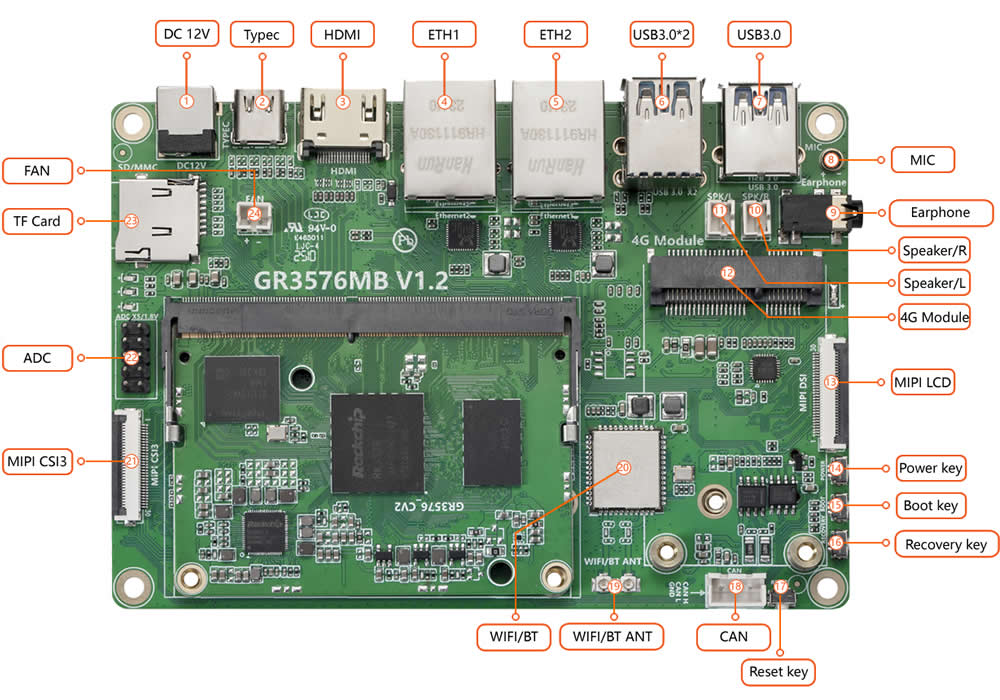

Development board interfaces 1

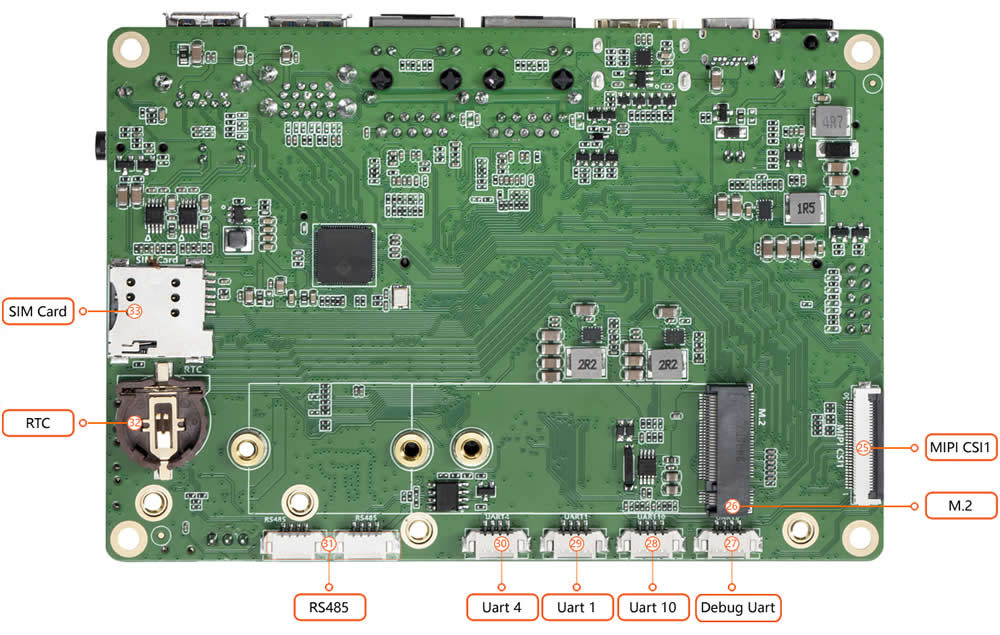

Development board interfaces 2

Parameters

Appearance: Gold Finger system on module + carrier board
Dimensions: 130mm x 90mm
Board layers: system on module 8-layer/carrier board 4-layer

System Configuration

CPU: Rockchip RK3576
Frequency: Octa-core 64-bit 4*A72+4*A53 processor, up to 2.2GHz*8
GPU: ARM G52 MC3 graphics processor, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration Hardware
NPU: 6Tops NPU, supports INT4/INT8/INT16/FP16/BF16/TF32 operation. Support dual-core collaborative or independent work, support multi-task and multi-scenario parallel
Codecs: video decoding: 8K@30fps/4K@120fps (H.265/HEVC, VP9, AVS2, AV1), 4K @60fps (H.264/AVC)
Video Encoding: 4K@60fps (H.265/HEVC, H.264/AVC) Picture Encoder/Decoder: 4K@60fps MJPG
RAM: 2GB/4GB/8GB/16GB LPDDR4/LPDDR4X
eMMC: 8GB/16GB/32GB/64GB/128GB/256GB EMMC Built-in Storage
Support M.2 Expandable SSD/HDD Built-in 16MP ISP, RGB-IR sensor support, support up to 120db HDR UART, I2C, ADC, PWM, GPIO, CAN, USB3.0, HDMI, EDP, MIPI CSI, MIPI DSI, SAI and other expansion interfaces
Other interfaces: 2 x SDIO3.0, 2 x CAN FD, 16 x PWM, 10 x I2C (supports 7-bit and 10-bit address modes), 2 x I3C (conforms to the I2C protocol, supports the SDR mode, and supports up to 10 devices), 12 x UART, Uart0 is Debug uart, Uart1-Uart11 support RS485 function, 7 x SARADC + 1 x SARADC (for boot only)

Interfaces parameters

Power: DC 12V
Ethernet: Integrated 2 x GMAC Ethernet controller, support dual 1000Mbps Ethernet
Wireless Network: Support WiFi+Bluetooth 2-in-1 module with SDIO interface Support expansion of 4G LTE wireless network
Display: 1 x HDMI2.1, up to 4K@120Hz 1 x MIPI DSI, support 2560x1440@60fps 1 x DP1.4, Type-c to DP1.4, up to 4K@120Hz
Camera: 2 x MIPI-CSI (Single Channel 4 LAN or Dual Channel 2 LAN)
Audio: 1 x HDMI Audio Output, 1 x Phone Headphone Output (without MIC Recording), 1 x Mic Microphone Audio Input, 2 x Speaker Speaker Output
USB: 3 x USB3.0, 1 x Type-c
CAN: 1 x CAN
PCIE: 1 x M.2 (support 2280 SSD)
TF Card: 1 x TF Card
Other Interfaces: 3 x UART, 1 x Debug uart , 2 x RS485, 5 x ADC, 1 x RTC, 1 x SIM card slot

Electrical characteristics

Operating temperature: -20℃- 80℃
Storage temperature: -30℃- 80℃
Storage humidity: 10%～80 %

Hardware interface

【1】DC12V power supply interface
【2】support Type-c to DP1.4
【3】HDMI2.1
【4】RJ45 Gigabit Ethernet port
【5】RJ45 Gigabit Ethernet port
【6】USB3.0 HOST interface
【7】USB3.0 HOST interface
【8】MIC audio input
【9】headphone jack
【10】speaker right channel
【11】speaker left channel
【12】4G module
【13】MIPI LCD display
【14】power button
【15】boot key
【16】upgrade key
【17】reset key
【18】support CAN or CAN FD
【19】WIFI/BT antenna
【20】WIFI/BT module
【21】MIPI camera interface
【22】ADC expansion interface
【23】TF card slot
【24】FAN power supply interface
【25】MIPI camera interface
【26】M.2 solid state hard disk interface
【27】Debug serial port
【28】Uart10
【29】Uart1
【30】Uart4
【31】RS485
【32】RTC battery holder
【33】SIM Card holder

Others

OS: Android14, Ubuntu, Linux, Debian operating systems
Custom service: RK3576 SOM, custom hardware + software + OEM/ODM

Applied area

high-definition display with advertising machine, vending machines, teaching terminals, automatic identification, robotics, security monitoring, financial POS, vehicle control terminals, VR, etc.. With the development board to test, it will accelerate product develop time.

Packing list

Standard accessories:

RK3576 stamp hole development board
12V/2A power adapter
Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)

Download Center

Pay particular attention

Commitment

For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
