RK3562 System on Module (shorts for RK3562 SOM) Introduction:

G3562 system on module takes 64 bit Cortex-A53 CPU.

The main frequency can reach up to 2GHz, built-in Mali-G52 GPU, 1T computing power NPU, low power consumption and high performance. G3562 SOM DDR can be up to 8GB memory.

It supports PCIe2.1, 4K 30fps H.265/H.264/VP9 video decoding. Graperain provides complete technical information and reference design. Users can develop efficiently based on G3562 SOM.

Checking RK3562 Development Board Instruction>>

RK3562 SOM Features Details:

• Best Size; 69.6mm*48.1mm*3mm
• Main frequency can reach up to 2.0GHz, built-in Mali-G52 GPU, 1T computing power NPU.
• Low power consumption and high performance.
• Support different brands eMMC, standard 16GB
• Standard 2GB RAM, can be custom to 4GB/8GB
• Support power sleep wake-up
• Android 13, Buildroot+QT, Ubuntu, Debian OS
• Rich display interfaces
• Powerful functions, rich interfaces, wide applications.
• Stable and reliable board.

Structure Parameter

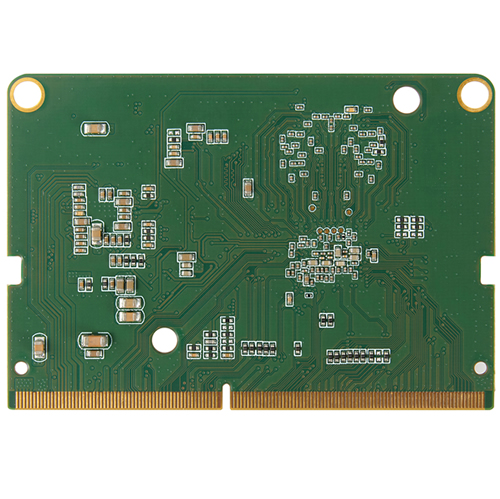

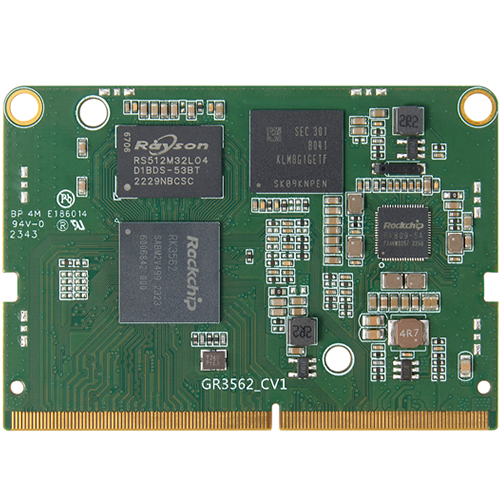

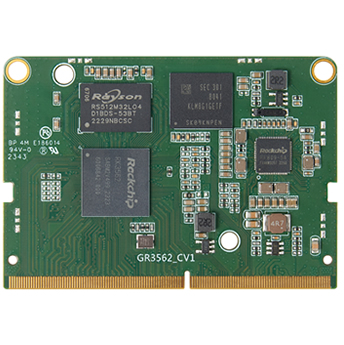

RK3562 SOM Appearance
