Arm Cortex A53 G3562 Development Boards

Rockchip RK3562 Stamp Hole Development Board
G3562 development board adopts Rockchip RK3562 quad core CPU, integrated dual-core architecture GPU and high-performance NPU. It supports max 8GB DDR. Onboard M.2 interface, WIFI, 4G module, dual network ports and other interfaces, which can be applied to industrial control, edge computing, face recognition and other scenarios.
Customized solution with RK3562 system on module for reference.
I want to customize service.>>
Viewed：1446
More Information

Download Center

RK3562
Development Board
CPU:RK3562 (ARM Cortex-A53)
Stable and reliable
Onboard M.2 interface, WIFI, 4G module, dual network ports
CPU
2.0GHz*4
LPDDR4
2G
EMMC
16G

The most cost-effective quad core

●Super Cortex-A53 ●max to 2.0GHz ●stable ●long supply

Brief Introduction

RK3562 development board is developed by Graperain technology. It’s based on Rockchip RK3562, 64-bit quad-core A53. It comes with RK3562 system on module and carrier board.

G3562 development board adopts Rockchip RK3562 quad core CPU, integrated dual-core architecture GPU and high-performance NPU.

It supports max 8GB DDR. Onboard M.2 interface, WIFI, 4G module, dual network ports and other interfaces, which can be applied to industrial control, edge computing, face recognition and other scenarios.

RK3562 system on module size：69.6mm x 48.1mm RK3562 carrier board size：120mm x 90mm Check RK3562 SOM features>>

RK3562 development board features

The product features

The size is only 120mm x 90mm. It can be used in final products directly .
It has powerful functions, rich interfaces, and a wide range of applications.
It supports Android13, Ubuntu, Buildroot+QT, and Debian.
Stable and reliable

Development board size

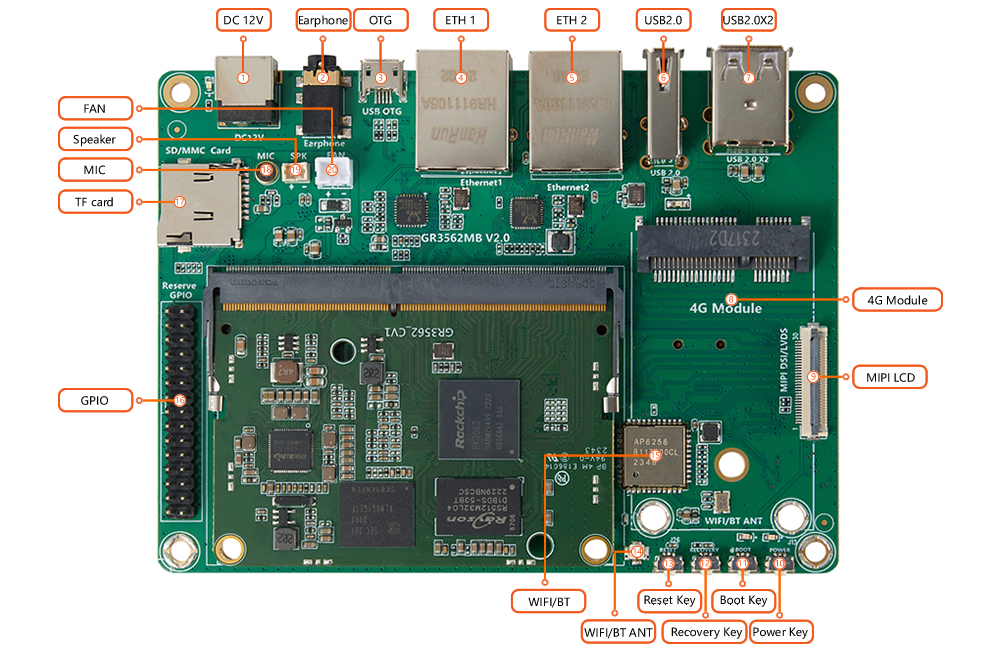

Development board interfaces 1

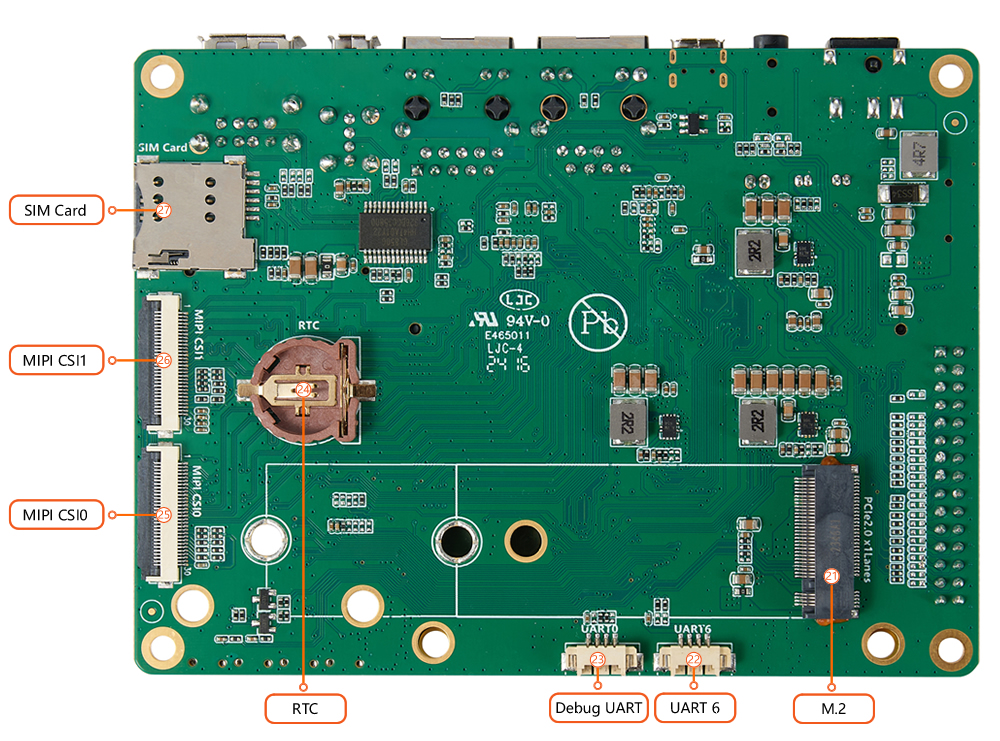

Development board interfaces 2

Parameters

Appearance: gold finger system on module + carrier board
Size: 120mm x 90mm
Board Layer: system on module 8 Layer / carrier board 4 Layer

System on Module parameters

SOC: Rockchip RK3562
Frequency: Quad core 64 bit Cortex-A53, frequency up to 2GHz
GPU: ARM G52 2EE GPU, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, integrate high-performance dedicated 2D processor
NPU: Build-in RKNN NPU AI acceleration engine, 1Tops computing power
Deep learning frameworks: Caffe/TensorFlow/TF-Lite/ONNX/MXNet/PyTorch/Keras/Darknet
Video codec: 1080P 60fps H.264 encoder 4K 30fps H.265/VP9, 1080P 60fps H.264 decoder
Memory: 2GB/4GB/8GB LPDDR4/LPDDR4X
eMMC: 8GB/16GB/32GB/64GB/128GB eMMC
Support M.2, expandable SSD
Support UART, I2C, ADC, PWM, GPIO, USB2.0, MIPI CSI, MIPI DSI, I2S and other expansion interfaces

Interfaces parameters

Power: DC 12V
Ethernet: 1x 1000Mbps Ethernet(RJ45), 1x 100Mbps Ethernet(RJ45)
WIFI: Expandable WiFi+Bluetooth 2-in-1 module via SDIO interface: - support 2.4GHz / 5GHz dual band WiFi, 802.11a/b/g/n/ac protocol - support Bluetooth5.0
Supports extended 4G LTE/3G wireless networks
Display: 1 x MIPI DSI, single channel support 1920x1080@60fps 1 x LVDS, up to 1280x800@60fp
Camera: 2 x MIPI-CSI(up to 13M)
Audio: 1 x Earphone, earphone output(without MIC recording) 1 x Mic, MIC audio input 1 x Speaker, speaker output
USB: 3 x USB2.0, 1 x OTG
M.2: 1 x M.2(Supports SSD expansion)
TF card: 1 x TF card slot, max support 128GB
Other interfaces: 1 x Debug uart 1 x FAN 1 x FAN 1 x RTC 1 x SIM card slot

Electrical characteristics

Working temperature: 0--70℃
Storage temperature: -20--80℃
Storage humidity: 10%--80%

Hardware interface

【1】 DC-12V power in
【2】 Earphone output
【3】 USB3.0 OTG
【4】 RJ45 100M Ethernet port
【5】 RJ45 1000M Ethernet port
【6】 USB2.0 HOST
【7】 USB2.0 HOST
【8】 4G module connector
【9】 MIPI DSI/LVDS display
【10】 Power key
【11】 Maskrom/upgrade key
【12】 Recovery/volume+ key
【13】 Reset key
【14】 WIFI, BT antenna
【15】 WIFI, BT module
【16】 GPIO expansion
【17】 TF card
【18】 MIC
【19】 Speaker
【20】 FAN
【21】 M.2 SSD interface
【22】 Uart6 serial port, the default is Bluetooth serial port
【23】 Debug UART
【24】 RTC connector
【25】 MIPI CSI0
【26】 MIPI CSI1

Others

OS: Android 13, Buildroot+QT, Ubuntu, Debian
Custom service: RK3562 system on module, custom hardware + software + OEM/ODM

Applied area

high-definition display with advertising machine, vending machines, teaching terminals, automatic identification, robotics, security monitoring, financial POS, vehicle control terminals, VR, etc.. With the development board to test, it will accelerate product develop time.

Packing list

Standard accessories:

RK3562 development board x 1
12V/2A power adapter x 1
Cloud link(including SOM, hardware SCH(PDF form), source code, chip and LCD data sheet, develop tools, user manual etc.)

Download Center

Pay particular attention

Commitment

For customers who have purchased development board( or SBC) and related accessories, Graperain provides technical support for free. For other functions not related to board or customer-own-choice accessoires or custom projects,technical support will be charged.
